box header 2.54mm Double row SMT patch
Min. Order:1
Model No:052321
dgyzconn’s Box Header 2.54mm Double Row SMT Patch is a core component for efficient internal device connections, designed for electronics, industrial computers, and communication systems. As a key model in the Box Header series, its double-row...
-
Box Header 90 degree double bend Double row
Min. Order:1
Model No:052320
dgyzconn’s Box Header 90 degree double bend Double row is an innovative solution for complex internal device connections, designed for electronics, industrial computers, and communication systems. As a featured model in the Box Header series, its...
-
180 degree Box Header black
Min. Order:1
Model No:052319
dgyzconn’s 180 degree Box Header black stands as an outstanding choice for internal device connections, meticulously crafted for electronics, industrial computers, communication systems, and after-sales parts. As a classic in the Box Header series,...

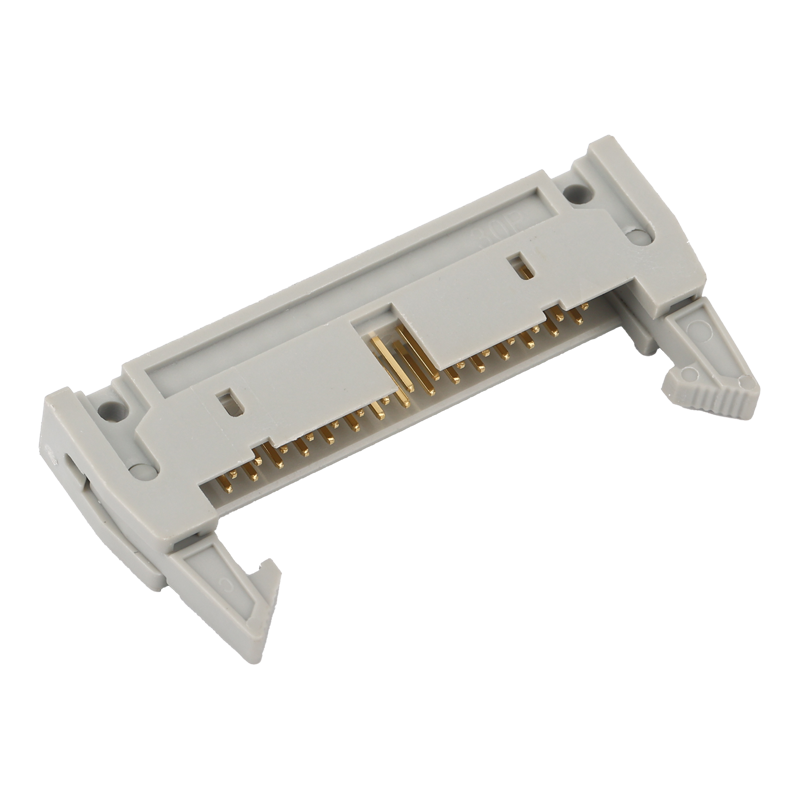

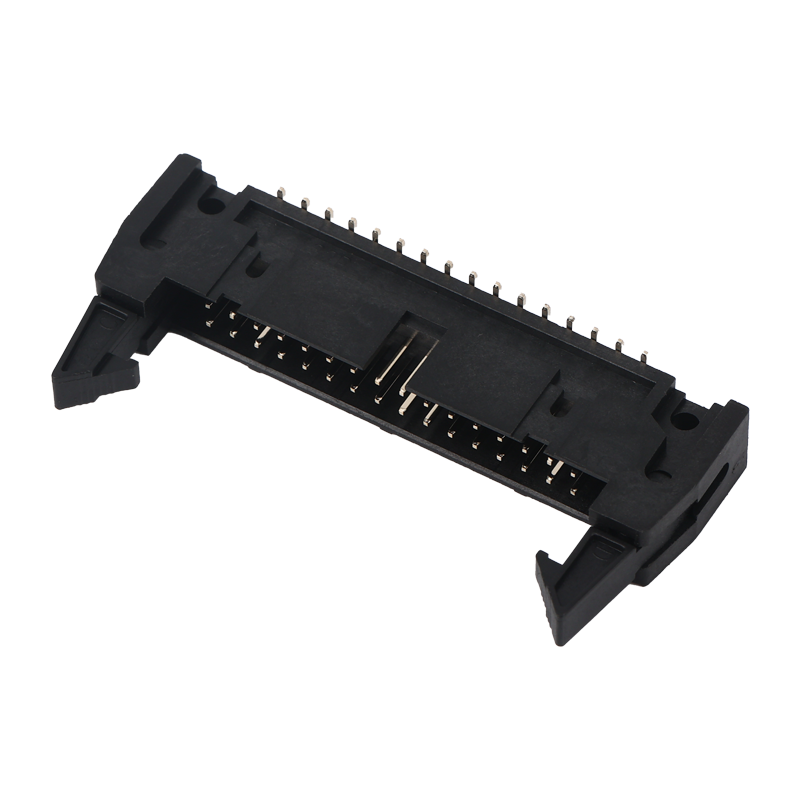

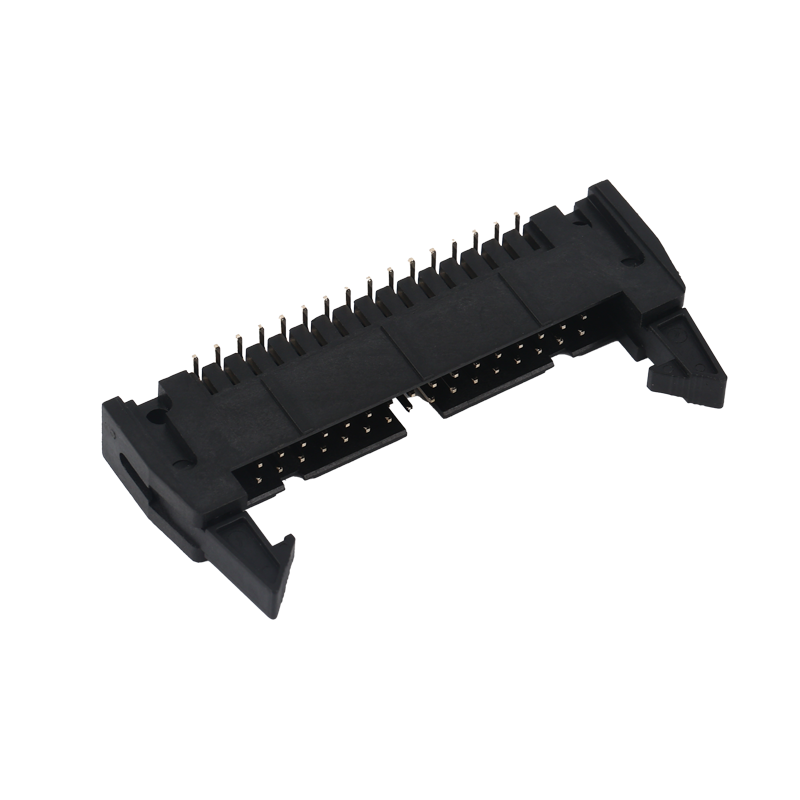

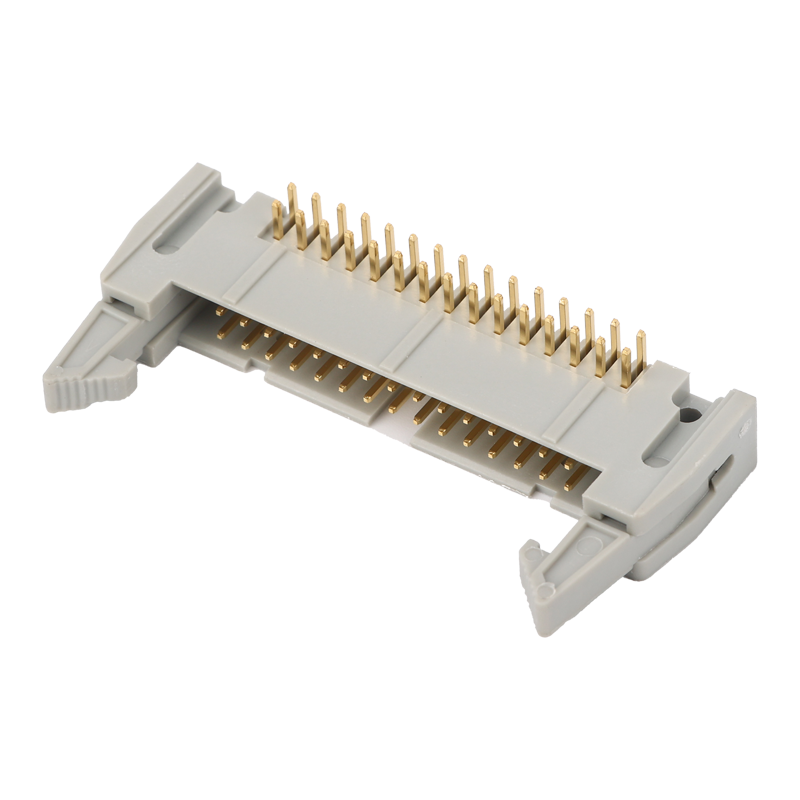

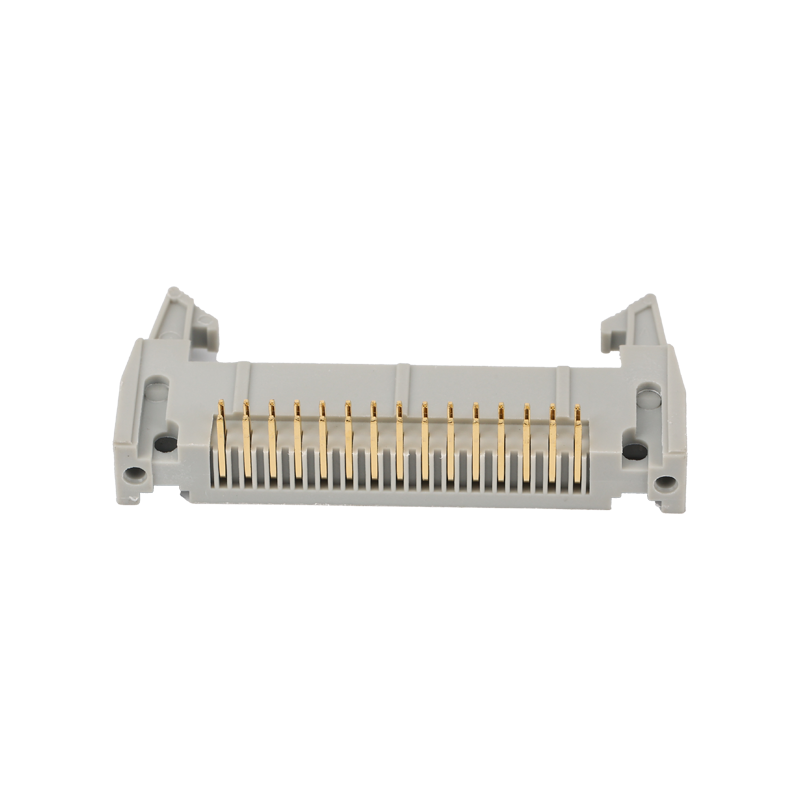

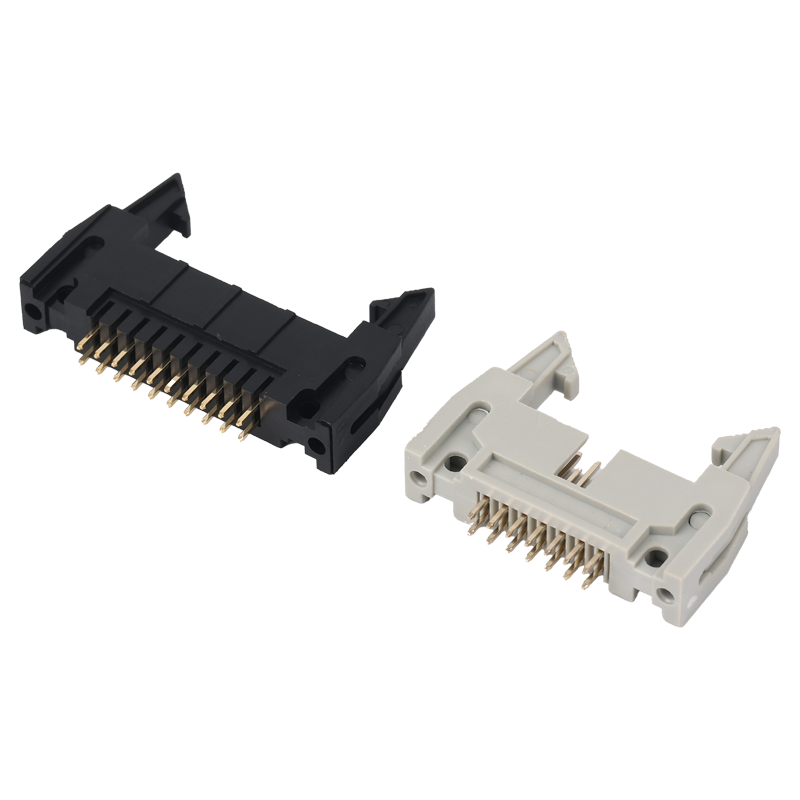

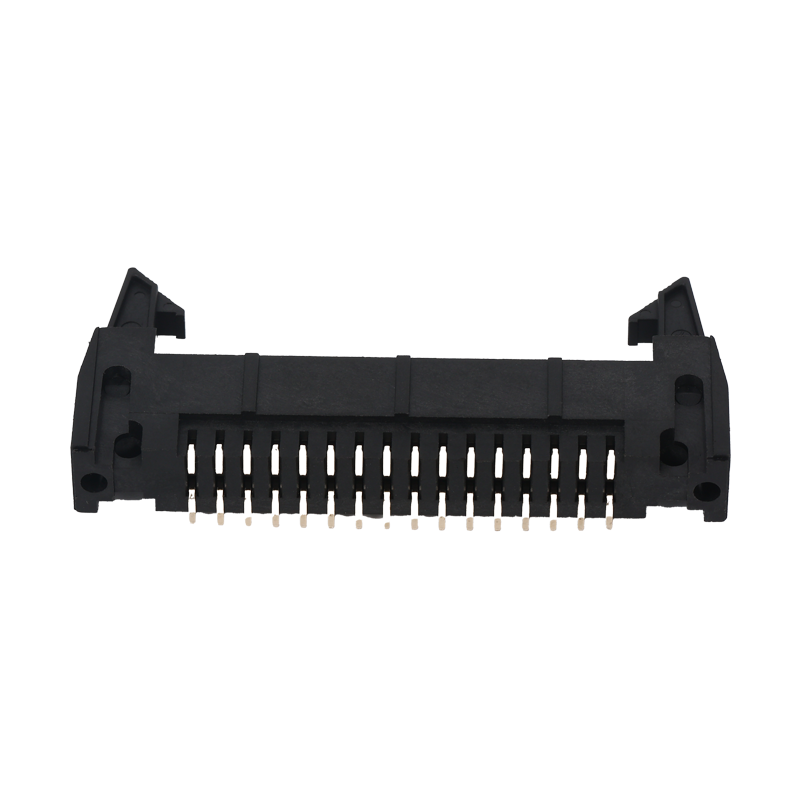

Box Header 2.54 Pitchdgyzconn's Box Header 2.54 Pitch is a time - tested and highly versatile electronic connection solution. With a standard 2.54mm pitch, it has become an industry - wide standard, offering excellent compatibility and ease of use. Crafted from premium materials and manufactured through advanced processes, this box header delivers stable electrical performance, robust mechanical durability, and reliable long - term operation. Widely used in various fields including consumer electronics, industrial automation, and telecommunications, our Box Header 2.54 Pitch provides a secure and efficient connection, ensuring the stable operation of electronic devices.
Product PhilosophyPlease listen to usAt dgyzconn, the Box Header 2.54 Pitch adheres to the concept of "Quality - oriented, Innovation - driven, and Customer - centric". We firmly believe that quality is the cornerstone of product competitiveness. Through continuous technological innovation and process optimization, we strive to upgrade traditional connection products. By deeply understanding customer needs, we are committed to providing not only high - quality products but also comprehensive technical support and perfect after - sales service, aiming to be the preferred partner for customers in the electronics industry.Original ConceptApplication Scenarios
FAQHow to choose between 2.54mm pitch and 2.0mm pitch Box Headers?The 2.54mm pitch is an industry - standard specification with stronger compatibility, suitable for scenarios with high requirements for versatility and frequent plugging and unplugging. The 2.0mm pitch is more compact with higher space utilization. If compatibility and ease of use are emphasized, choose 2.54mm; if space is limited and higher precision is required, choose 2.0mm.What should I do if the insulation resistance of Box Header 2.54 Pitch decreases?Check if it is caused by a humid environment. Place the Box Header in a dry environment or use drying equipment for treatment. Check if there are conductive impurities attached and clean the pins and shell with anhydrous alcohol. If the insulation layer is damaged, replace with a new Box Header.How to install Box Header 2.54 Pitch on a double - sided PCB?For through - hole soldering, insert the Box Header into the holes from the front of the PCB and solder on the back. When using SMT technology, print solder paste on both sides of the PCB in advance and complete the soldering through reflow soldering, paying attention to controlling the soldering temperature curve.Can I customize the pin length of Box Header 2.54 Pitch?Yes. dgyzconn provides pin length customization services. Customers need to provide specific length dimensions, tolerance requirements, application scenarios, etc. We will evaluate the feasibility based on the requirements and provide customized solutions.
