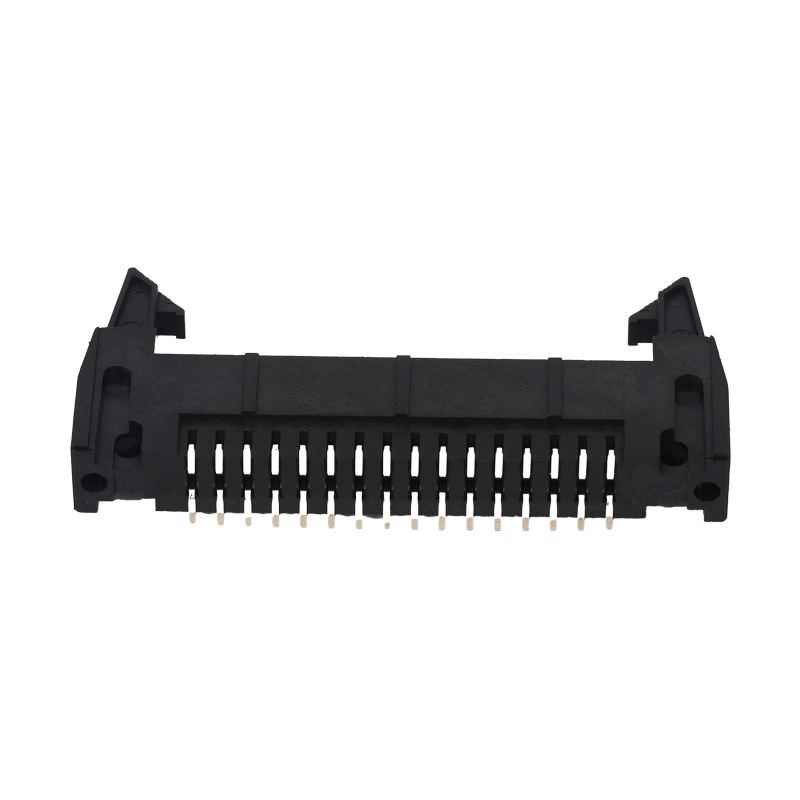

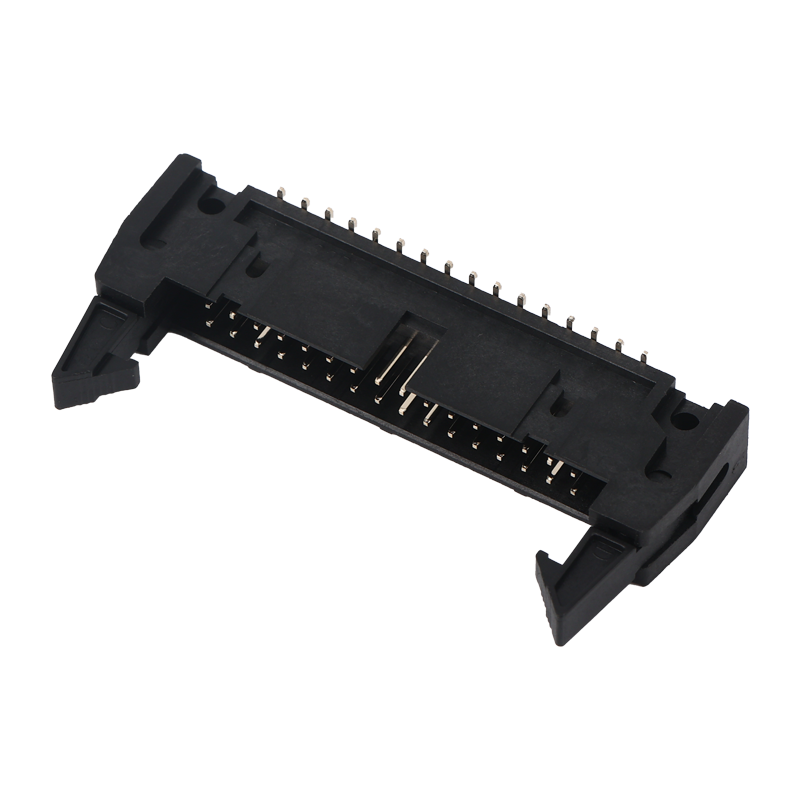

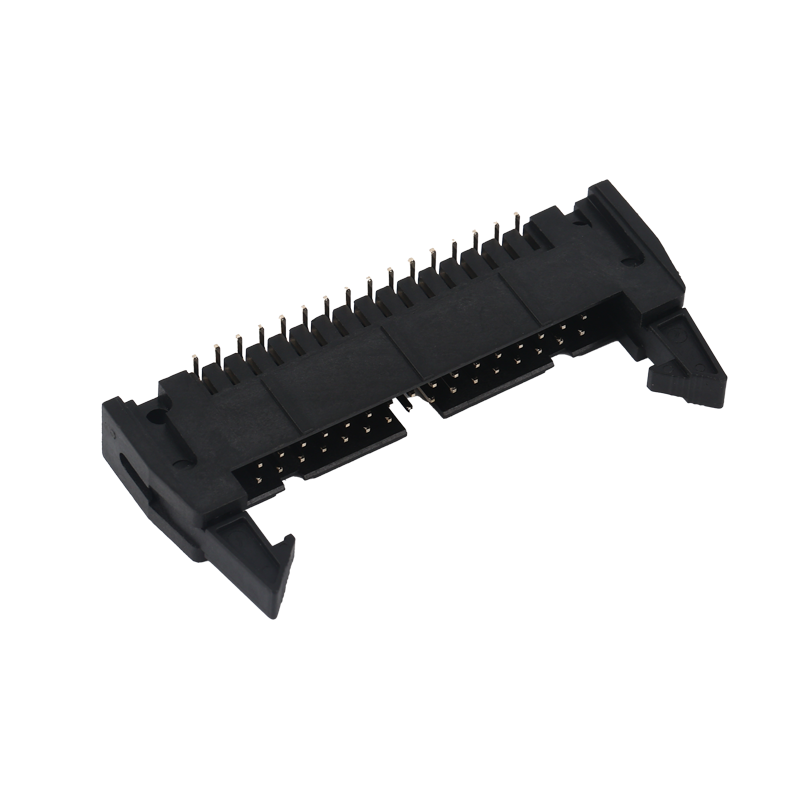

box header 2.54mm Double row SMT patch

dgyzconn’s Box Header 2.54mm Double Row SMT Patch is a core component for efficient internal device connections, designed for electronics, industrial computers, and communication systems. As a key model in the Box Header series, its double-row structure combined with SMT patch technology significantly increases circuit board integration density, making it an ideal solution for Header Connector in high-density wiring scenarios. Supporting SMT, angled, and right-angle soldering types, it is compatible with box header 2.54mm Double row standards, easily adapting to automated patch production lines.



Featuring C2680/C5191 high-conductivity copper terminals and black LCP (UL94V-0) insulators, the connector stably handles 3A/pin current from -40°C to +105°C, meeting industrial-grade requirements. The Gold Flash plating, combined with a ≥50u" nickel base, keeps contact resistance below 20mΩ, ensuring stable signal transmission at high frequencies. With 6-64 PIN options, it suits diverse applications from consumer electronics to industrial equipment and is highly compatible with black Box Header 2.54mm and box header Double row SMT patch. Certified by IATF16949, ISO standards, and RoHS-compliant, it comes in standard plastic tray + carton packaging, offering ODM/OEM customization with flexible color choices for precise and efficient connectivity solutions worldwide.

Attributes	Details
Application	Mainly for internal device connections; suitable for electronics, industrial computers, communication systems, after-sales parts, etc.
Soldering Type	SMT / Angled / Right-angle
Plastic Rows	Double-row
Rated Current	3A/pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Maximum 20M©
Contact Plating	Gold Flash; Nickel layer on base plate ≥50u"
Pin Count	6 - 64 PIN
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA6T, PA9T, LCP
Packaging Details	Standard packaging: plastic tray + carton; customizable according to requirements
Service Types	ODM and OEM services available; color can be customized flexibly
