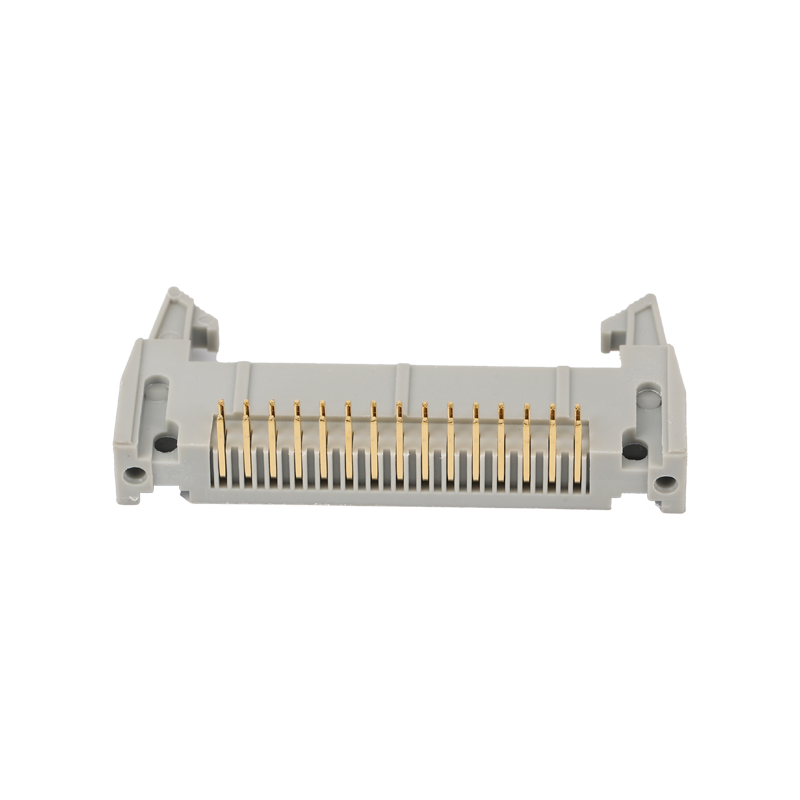

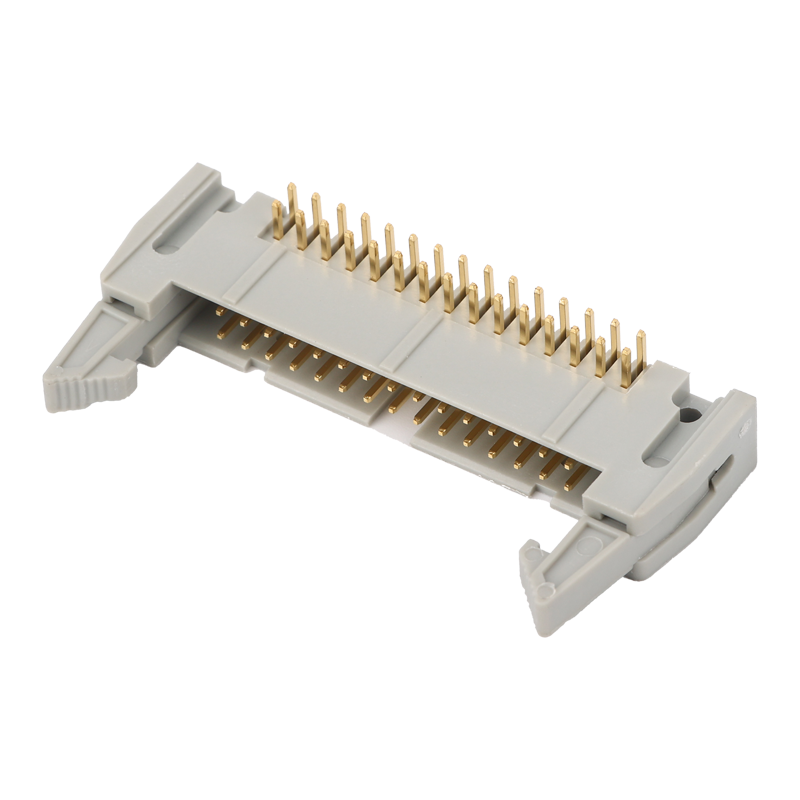

Box Header 90 degree double bend Double row

The 90 Degree Double Bend Double Row Box Header is designed with a 2.54 Mm Box Header standard, making it suitable for a wide range of electronic connection requirements. This connector boasts excellent structural strength and electrical performance, making it ideal for use in industrial, consumer electronics, and automotive applications. Its unique Box Header 2.54 Pitch design ensures secure contact between the pins and the PCB, effectively preventing electrical interference and signal loss.



The 2.54Mm Pitch Box Header connector design offers high-density connections, making it perfect for electrical devices that demand high reliability and stability. Its double-row configuration accommodates more complex connection needs, offering multiple connection options in space-constrained environments, which makes it an excellent choice for products requiring compact and efficient electrical connections.



Attributes	Details
Application	Mainly for internal device connections; suitable for electronics, industrial computers, communication systems, after-sales parts, etc.
Soldering Type	SMT / Angled / Right-angle
Plastic Rows	Double-row
Rated Current	3A/pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Maximum 20M©
Contact Plating	Gold Flash; Nickel layer on base plate ≥50u"
Pin Count	6 - 64 PIN
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA6T, PA9T, LCP
Packaging Details	Standard packaging: plastic tray + carton; customizable according to requirements
Service Types	ODM and OEM services available; color can be customized flexibly
