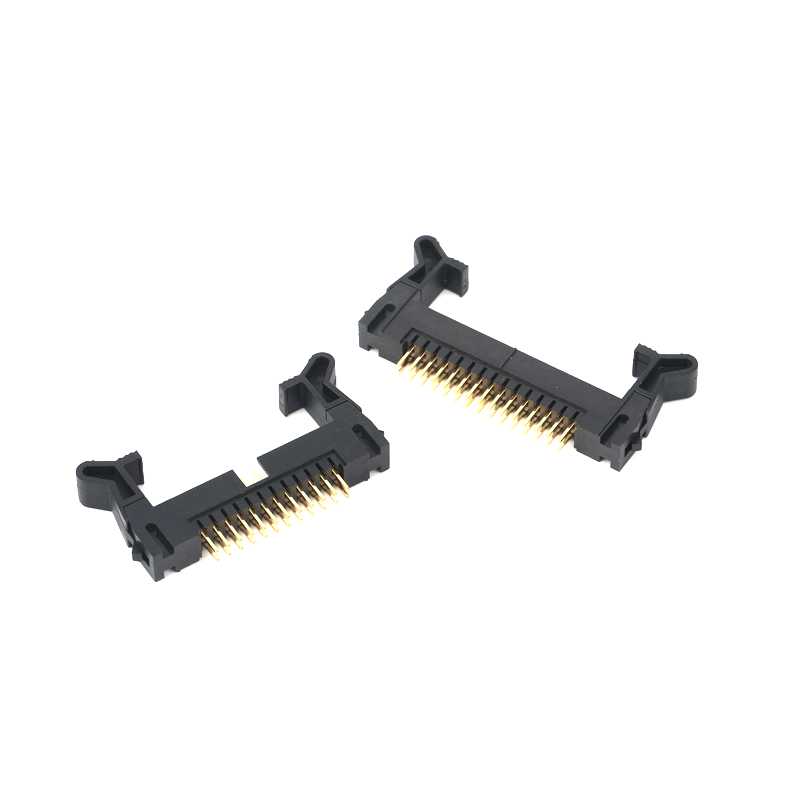

Box Header 2.54 3 header extension
Min. Order:1
Model No:052305
The 2.54mm 3-Header Extension Box Header is a high-performance connector designed using advanced IDC Header technology, ideal for high-density electrical connections and stable data transmission. This connector ensures reliable electrical contact...
-

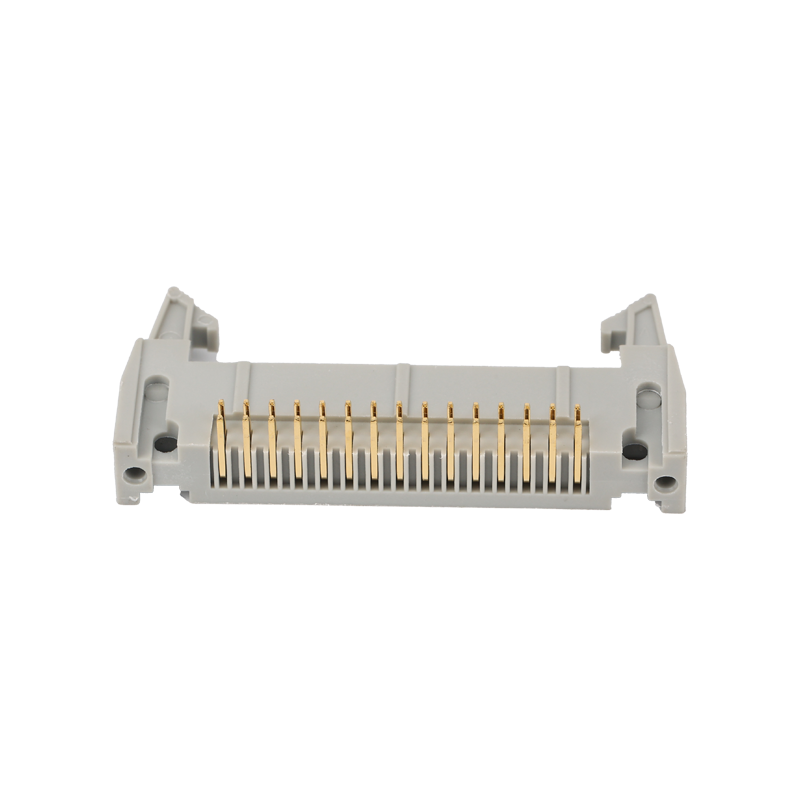

High Quality Box Header IDC Type Connectors
Min. Order:1
Model No:052304
The High Quality Box Header IDC Type Connectors use advanced crimping technology to provide efficient and stable electrical connections. This connector is ideal for applications requiring high-density connections, particularly in industrial...
-

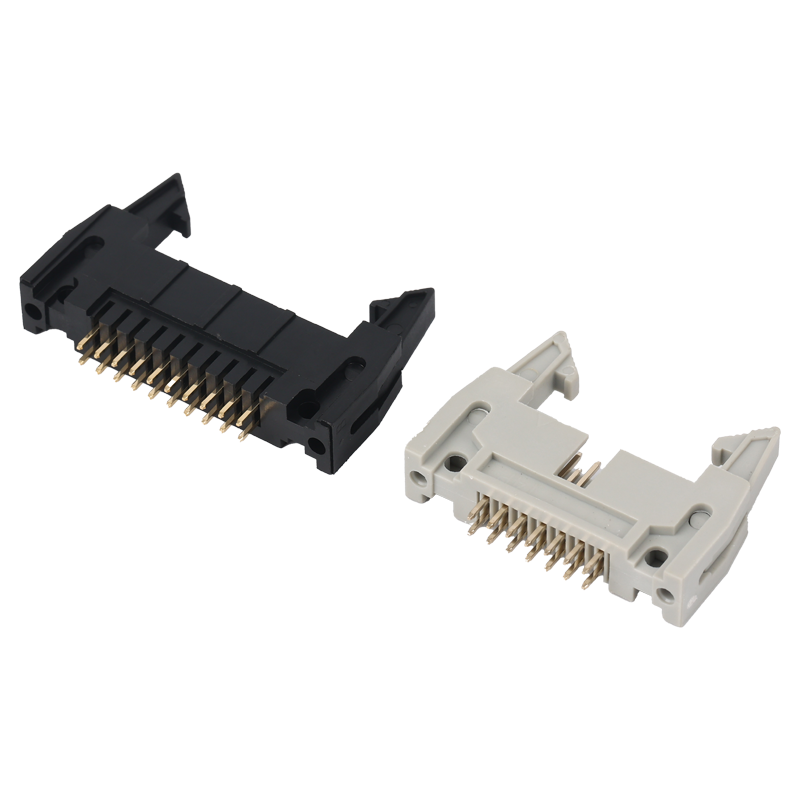

2.54mm IDC box head three piece connector
Min. Order:1
Model No:052303
The 2.54mm IDC Box Head Three Piece Connector is crafted from high-quality materials and precision manufacturing techniques, designed specifically for high-density data transmission and electrical connection applications. This connector features a...
-

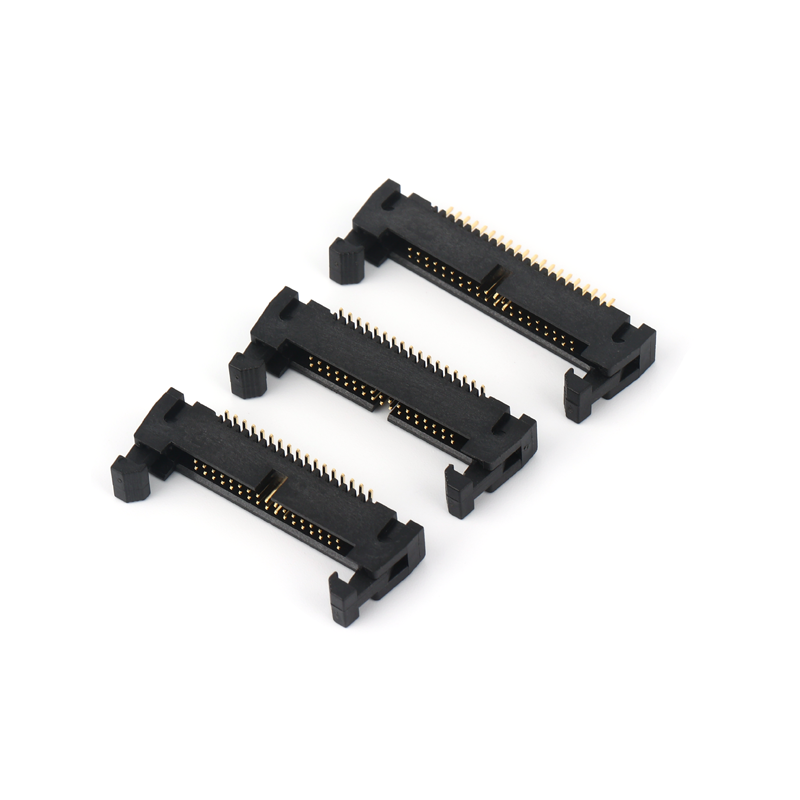

idc box header connector
Min. Order:1
Model No:052201
The IDC Box Header Connector is a compact, robustly designed high-performance connector widely used in electronic devices for data transmission and signal connection. This connector is particularly suitable for applications in industrial automation,...
-

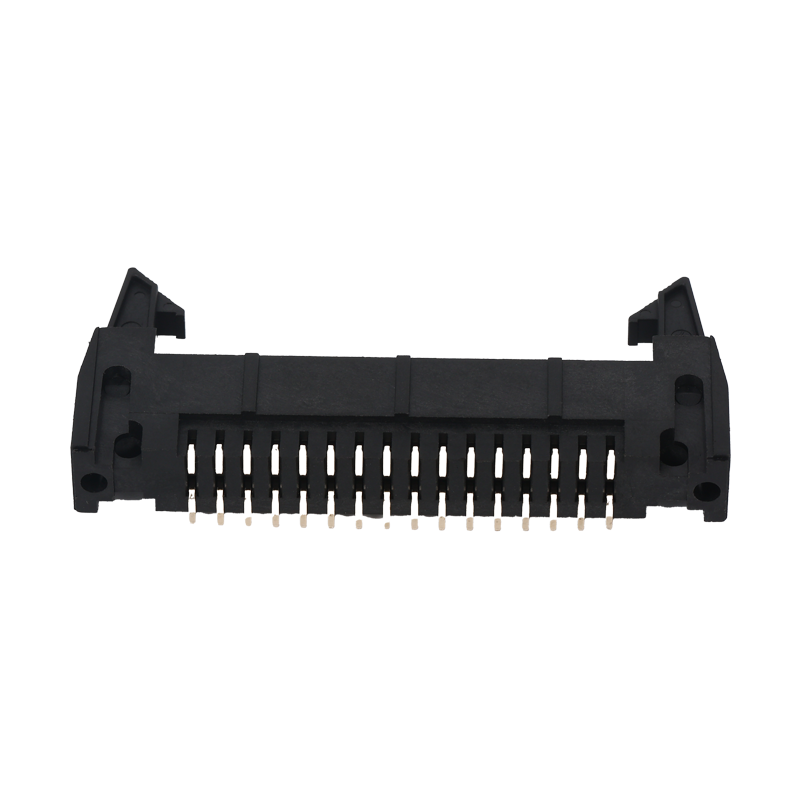

IDC box head connector
Min. Order:1
Model No:052302
The IDC Box Head Connector is a highly efficient and reliable electrical connection component, widely used in various electronic devices and systems, particularly for PCB (Printed Circuit Board) connections. Utilizing IDC (Insulation...
Box Header IDC TYPEdgyzconn's Box Header IDC TYPE is a high - performance electronic connector based on Insulation Displacement Connection (IDC) technology. It enables quick connection between wires and connectors without soldering, greatly improving production efficiency and reducing labor costs. Its precise piercing contact design uses a special blade structure to penetrate the wire insulation layer, establishing a reliable electrical connection with low contact resistance and high stability. The shell is made of high - strength flame - retardant engineering plastic, and the pins are made of high - purity copper alloy with a tin - plating treatment, offering excellent wear resistance and corrosion resistance.
Product PhilosophyPlease listen to usAt dgyzconn, Box Header IDC TYPE adheres to the concept of "Innovation - driven, Quality - oriented, Customer - first". We firmly believe that innovation is the core driving force for product progress. By continuously optimizing IDC technology, we enhance connection efficiency and reliability. Quality is always regarded as the lifeblood of products, and we strictly control the production process to ensure that every product meets industry - leading standards. Guided by customer needs, we provide comprehensive technical support and considerate services, striving to become a trusted partner in the field of electronic connections.Original ConceptTechnical HighlightsInnovative IDC contact technologyOptimizes the blade shape and angle design to make the piercing force more uniform, ensuring good contact with wires of different gauges.Anti - interference designSome models have built - in EMI shielding structures, effectively suppressing electromagnetic interference and ensuring stable high - speed signal transmission.Anti - misinsertion designThe unique keying design and asymmetric structure prevent the connector from being inserted incorrectly, improving installation accuracy and efficiency.High - wear - resistant surface treatmentThe pin surface uses a special tin - plating process to increase wear resistance, with a plugging and unplugging life of over 5000 times.
Product Features
Excellent electrical performance: Low contact resistance (≤20mΩ) and high insulation resistance (≥1000MΩ) ensure stable transmission of signals and power.
Reinforced mechanical protection: 1.2mm thick box-shaped shell and reinforced rib design, impact resistance is 60% higher than ordinary pin headers.
Efficient installation experience: IDC technology realizes non-stripping crimping, installation efficiency is 3 times higher than traditional welding, and it is easy to operate with special tools.
Flexible adaptation capability: 2-40P multi-pin specifications and 1.27mm/2.54mm/3.96mm pitch options, compatible with multiple device interfaces.
Intelligent protection details: Integrated dust cover, anti-misplug structure and temperature warning design, reducing maintenance costs and failure risks.FAQ
How to choose the appropriate wire gauge for Box Header IDC TYPE?Select according to the wire gauge compatibility range provided in the product specification. Generally, it supports wire gauges from AWG 28 to 18. For high - current transmission, give priority to thicker - gauge wires. Also, consider the thickness of the wire insulation layer to ensure it matches the connector slot.
What should I do if the wire cannot be inserted into the IDC slot smoothly?Check if there are foreign objects blocking the slot and clean it with a small tool. Confirm whether the wire is bent or deformed, and straighten it before insertion. If the slot is too tight, slightly adjust the wire angle and try to insert it, but avoid forced operation to prevent damaging the connector.
Can Box Header IDC TYPE be reused?It is not recommended for reuse. Multiple plugging and unplugging may cause blade wear and poor contact. In special cases where reuse is necessary, carefully check the condition of the blades and slots, and the number of reuse times should not exceed 2.
What to do if the connector cover cannot be closed completely?Check if the wires are not properly placed and adjust their positions. Check if the cover clips are deformed. If so, try to repair or replace the cover. Confirm whether the connector body and the cover match. If not, contact after - sales service.-
-
-
