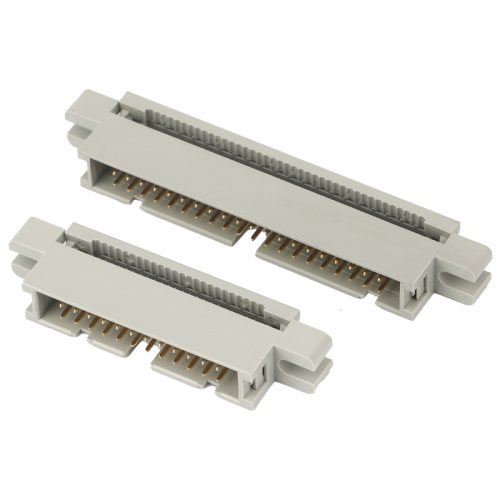

IDC box head connector

Get Latest Price

Min. Order:

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: 052302

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Item	Description
Application	Primarily used for internal device connections
Suitable Industries	Electronics, Industrial PCs, Communication Systems, Aftermarket Components
Mounting Type	SMT / Straight / Right Angle / J-Type / U-Type
Rows of Plastic	Single Row / Double Row
Rated Current	3A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature	230°C to 260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash / Tin Plating
Base Nickel Layer	≥50μ"
Number of Contacts	6–80 PINs
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging	Standard: Plastic Tray + Carton (customizable on request)
Service Type	ODM & OEM services available; flexible color customization supported

The IDC box head connector introduced by dgyzconn is specifically designed for internal device connections, making it a reliable choice for electronics, industrial computers, communication systems, after-sales parts, and other fields.

Featuring a double-row plastic design, it belongs to the 2.54Mm Pitch Box Header IDC TYPE. The soldering types include SMT, angled, and right-angle, adapting to different installation scenarios. With a rated current of 3A per pin and an operating temperature range from -40°C to +105°C, it can operate stably even in harsh environments. The terminals are made of C2680 and C5191 materials, combined with black LCP (UL94V-0) insulator material, ensuring excellent conductivity and insulation.

The contacts adopt the Gold Flash gold-plating process, and the nickel layer on the base plate is ≥50u". With a maximum contact resistance of 20M©, it enables efficient and stable signal transmission. The pin count ranges from 6 to 64 PIN, meeting diverse connection requirements. The product has passed certifications such as IATF16949, ISO9001, and ISO14000, and is RoHS compliant.

We offer ODM and OEM services, and the color can be customized as needed. The standard packaging is plastic tray + carton, and personalized packaging is also supported. Whether paired with 2.54mm Gray plug pin or 2.54mm Black plug pin, this IDC box head connector can provide you with high-quality connection solutions.
