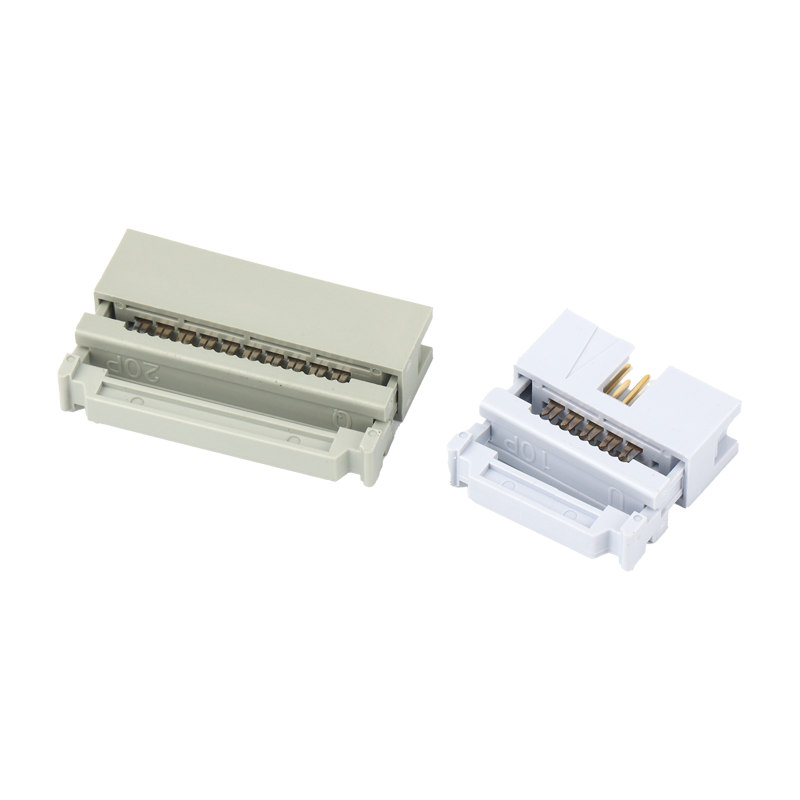

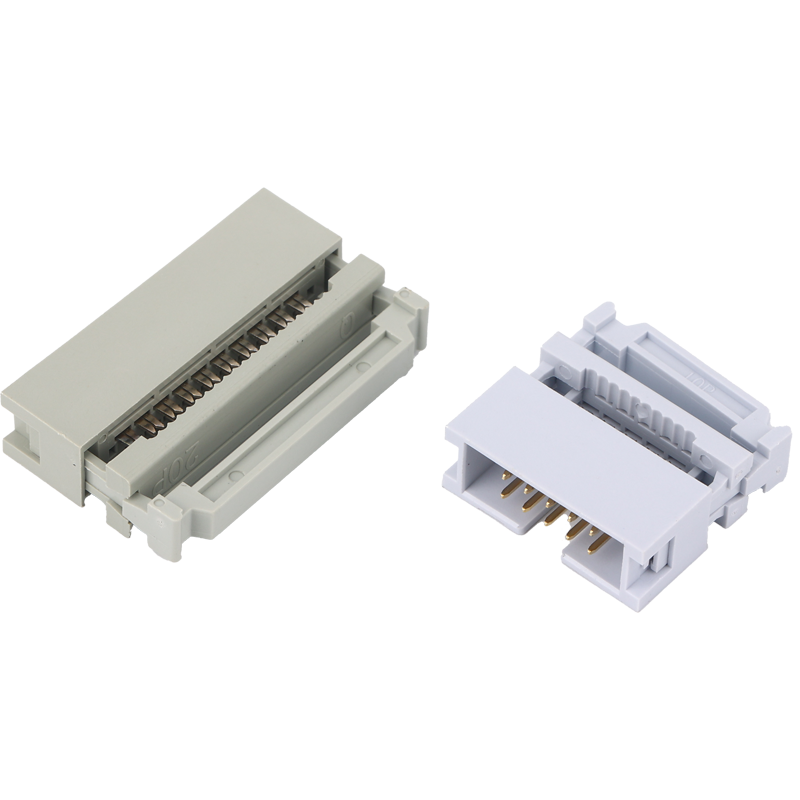

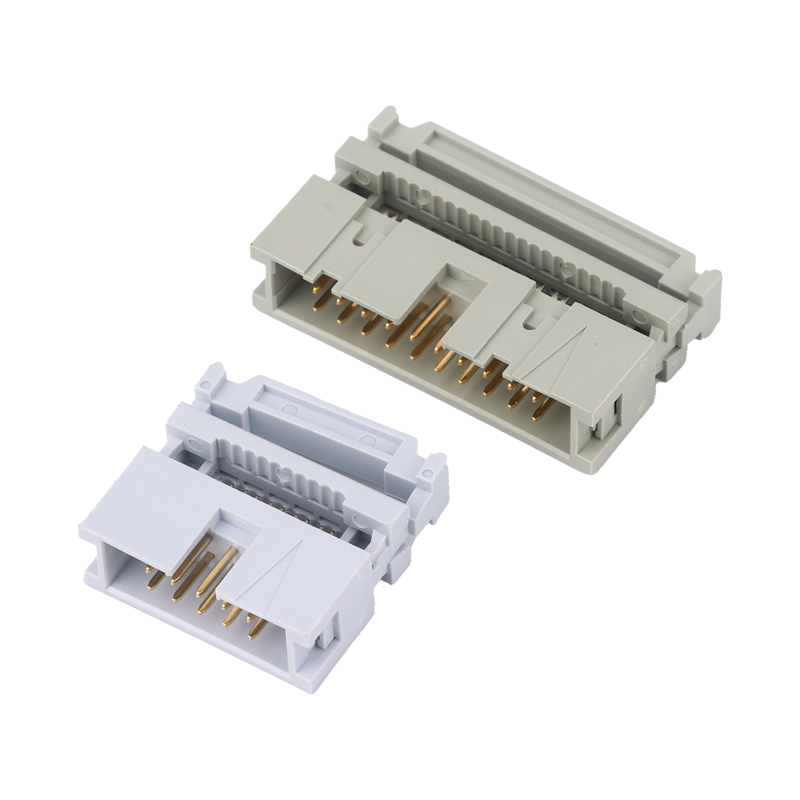

2.54mm IDC box head three piece connector

dgyzconn proudly presents the new 2.54mm IDC box head three piece connector, meticulously designed to meet the internal device connection needs. It is the perfect choice for electronics, industrial computers, communication systems, and after-sales parts.​



Featuring a double-row plastic design, this connector belongs to the 2.54Mm Pitch Box Header IDC TYPE. With soldering types including SMT, angled, and right-angle, it can flexibly adapt to various installation scenarios. Its unique Three Piece Box Header IDC TYPE structure provides enhanced stability and reliability. Boasting a rated current of 3A per pin and an operating temperature range from -40°C to +105°C, it ensures consistent and stable performance even in harsh environments.​



The terminals are made of C2680 and C5191 materials, combined with black LCP (UL94V-0) insulator material, guaranteeing excellent conductivity and insulation. The contacts are gold flashed with a nickel layer on the base plate ≥50u", and the maximum contact resistance is only 20M©, ensuring efficient and stable signal transmission. With a pin count ranging from 6 to 64 PIN, it fully meets diverse connection requirements. The product has passed multiple authoritative certifications such as IATF16949, ISO9001, and ISO14000, and is RoHS compliant, combining high quality and environmental friendliness.​



We offer flexible ODM and OEM services, with colors customizable according to your needs. The standard packaging is in the form of a plastic tray + carton, and personalized packaging is also supported. Whether paired with 2.54mm Gray plug pin or 2.54mm Black plug pin, this 2.54mm IDC box head three piece connector will provide you with a secure and efficient connection solution.
