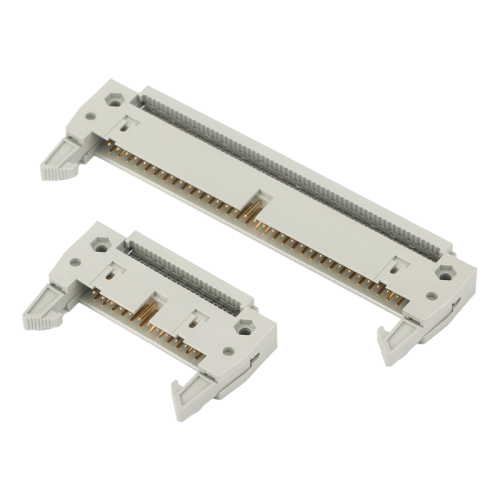

High Quality Box Header IDC Type Connectors

High Quality Box Header IDC Type Connectors

Get Latest Price

Min. Order:

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: 052304

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Item	Description
Application	Primarily used for internal device connections
Suitable Industries	Electronics, Industrial PCs, Communication Systems, Aftermarket Components
Mounting Type	SMT / Straight / Right Angle / J-Type / U-Type
Rows of Plastic	Single Row / Double Row
Rated Current	3A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature	230°C to 260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash / Tin Plating
Base Nickel Layer	≥50μ"
Number of Contacts	6–80 PINs
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging	Standard: Plastic Tray + Carton (customizable on request)
Service Type	ODM & OEM services available; flexible color customization supported

dgyzconn's High Quality Box Header IDC TYPE Connectors are the ultimate solution for seamless internal device connections! With a sturdy 2.54Mm Pitch Box Header IDC TYPE double-row structure and versatile SMT, angled, or right-angle soldering, they ensure rock-solid stability during reflow soldering. Built with C2680/C5191 terminals and black LCP insulation, they conquer -40°C to +105°C environments. Gold Flash-plated contacts with a ≥50u" nickel base slash resistance to 20M©, enabling lightning-fast signal flow.

Customizable from 6 - 64 PINs, with options like 2.54mm gold over Ni-plating, and compatible with 2.54mm Gray/Black plug pins, they fit any need. Certified by IATF16949, ISO9001, ISO14000 and RoHS-compliant, they blend quality and safety. Standard plastic tray + carton packaging, along with ODM/OEM services and flexible colors, make them perfect for electronics, industrial gear, and more.
