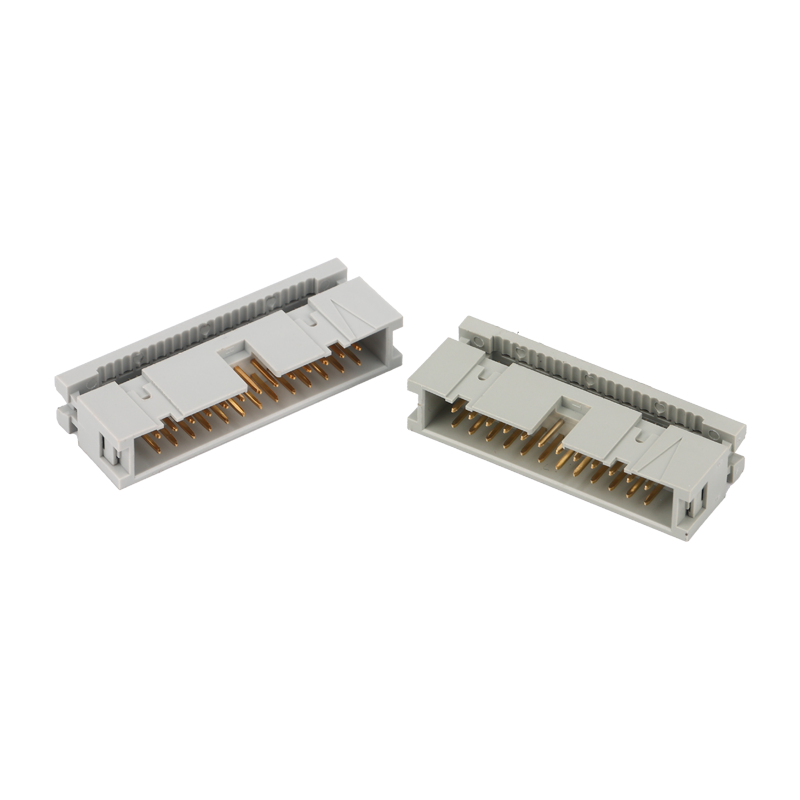

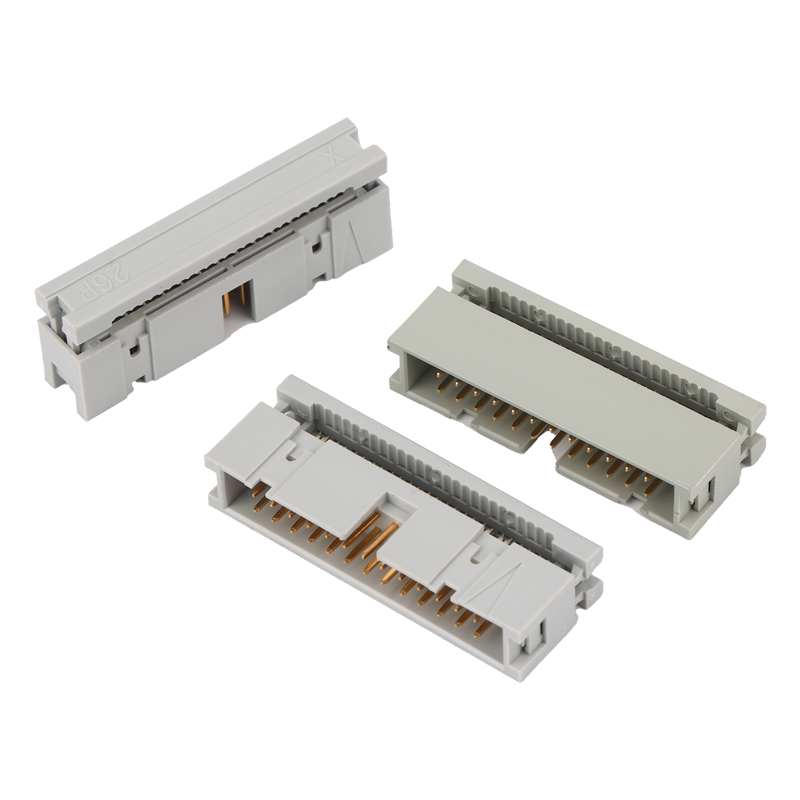

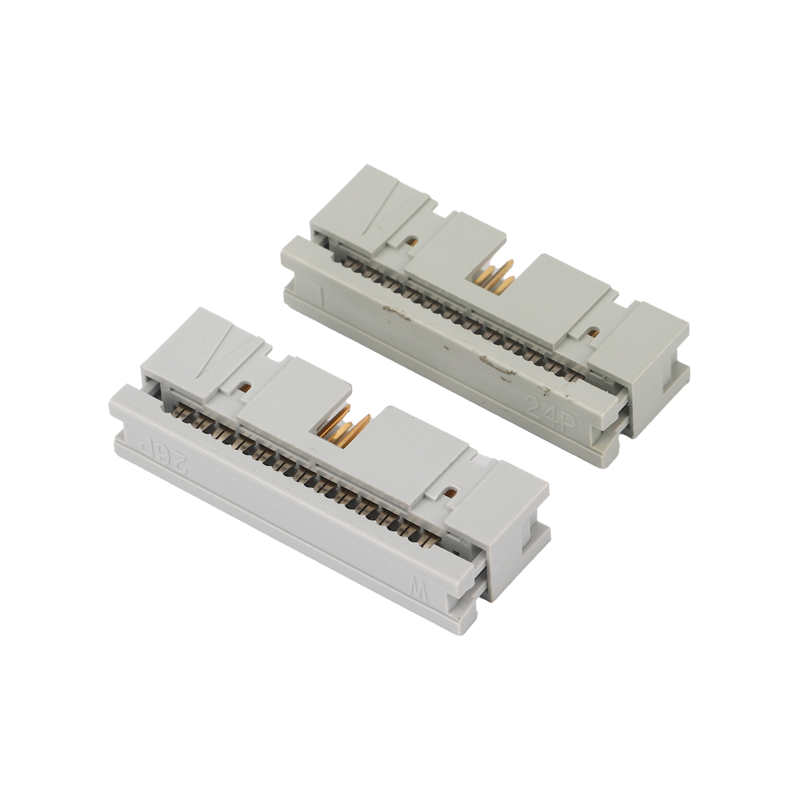

idc box header connector

The Idc Box Header Connector is a compact, robustly designed high-performance connector widely used in electronic devices for data transmission and signal connection. This connector is particularly suitable for applications in industrial automation, communication equipment, and computer systems, providing reliable electrical contact and ensuring stable signal transmission over long periods. As an Idc Header, it features a high-density design that offers multiple connection points in a limited space, meeting the demands of high-performance electrical systems.



Unlike traditional connectors, the IDC Box Header Connector design offers enhanced resistance to interference, effectively preventing external electromagnetic disturbances and improving system stability and reliability. This connector uses IDC technology, simplifying the connection process. Connections are completed by pressing, eliminating the need for soldering and saving installation time.



Additionally, the Idc Box Header design is sturdier, improving the connector's durability and safety. It is ideal for devices that require frequent connections and long-term stable operation. In modern electronic control systems, the superior performance of this connector ensures efficient system operation, particularly in complex circuit layouts.



Item	Description
Application	Primarily used for internal device connections
Suitable Industries	Electronics, Industrial PCs, Communication Systems, Aftermarket Components
Mounting Type	SMT / Straight / Right Angle / J-Type / U-Type
Rows of Plastic	Single Row / Double Row
Rated Current	3A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature	230°C to 260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash / Tin Plating
Base Nickel Layer	≥50μ"
Number of Contacts	6–80 PINs
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging	Standard: Plastic Tray + Carton (customizable on request)
Service Type	ODM & OEM services available; flexible color customization supported
