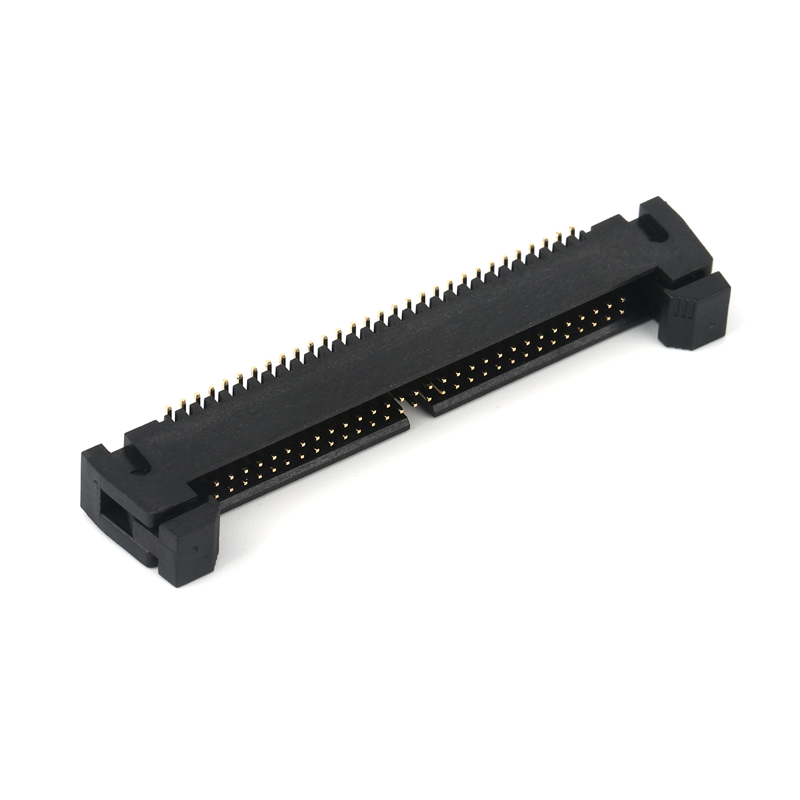

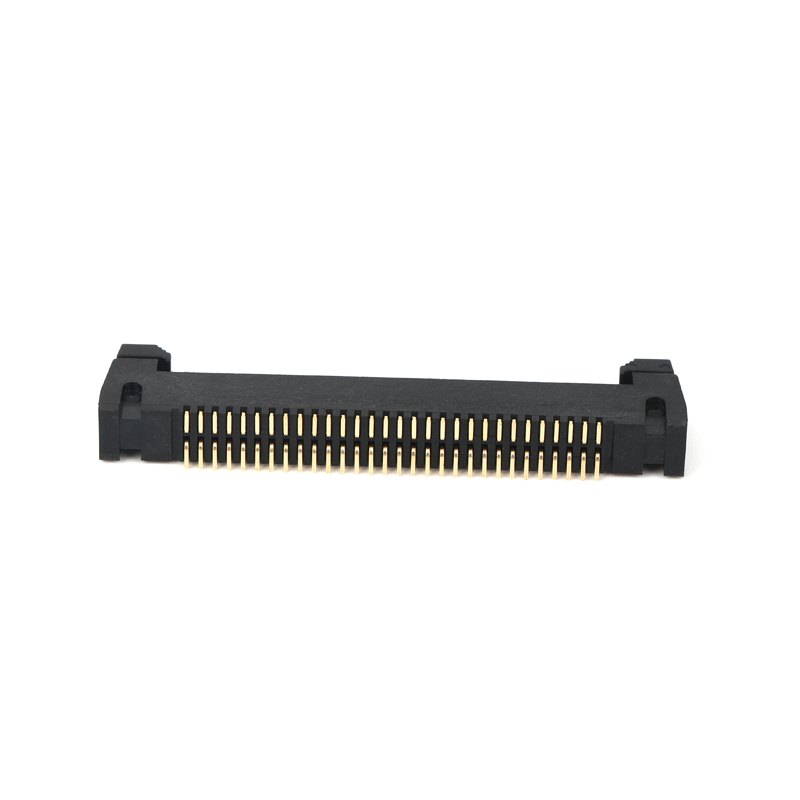

Short ear buckle black Box Header 1.27mm



With a 1A/pin rated current, it operates stably within the temperature range of -40°C to +105°C. Terminals made of C2680 and C5191 materials, paired with black LCP (UL94V-0) insulators, along with Gold Flash plating and a ≥50u" nickel base, limit the contact resistance to a maximum of 20M©, ensuring efficient signal transmission. Offering 6 - 100 PIN options, it suits diverse circuit needs. Certified by IATF16949, ISO9001, etc., and RoHS-compliant, it comes with standard plastic tray + carton packaging. With flexible ODM and OEM services, the color can be customized as required, providing reliable and personalized connection solutions for various devices.

Attributes	Details
Application	Mainly for internal device connections; suitable for electronics, industrial computers, communication systems, after-sales parts, etc.
Soldering Type	SMT / Angled / Right-angle
Plastic Rows	Double-row
Rated Current	1A/pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Maximum 20M©
Contact Plating	Gold Flash; Nickel layer on base plate ≥50u"
Pin Count	6 - 100 PIN
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PA6T, PA9T, LCP
Packaging Details	Standard packaging: plastic tray + carton; customizable according to requirements
Service Types	ODM and OEM services available; color can be customized flexibly
