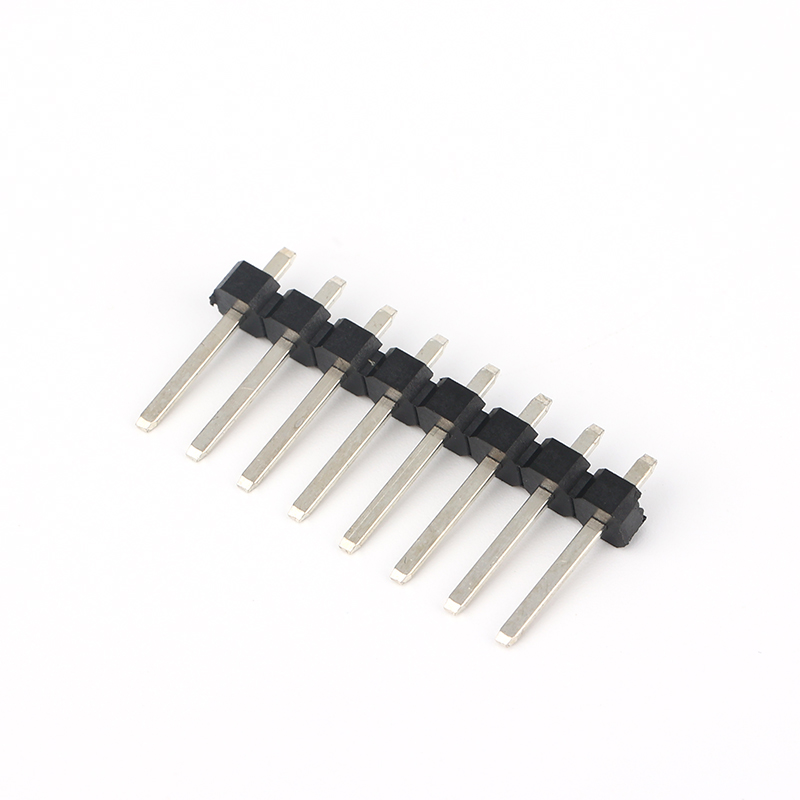

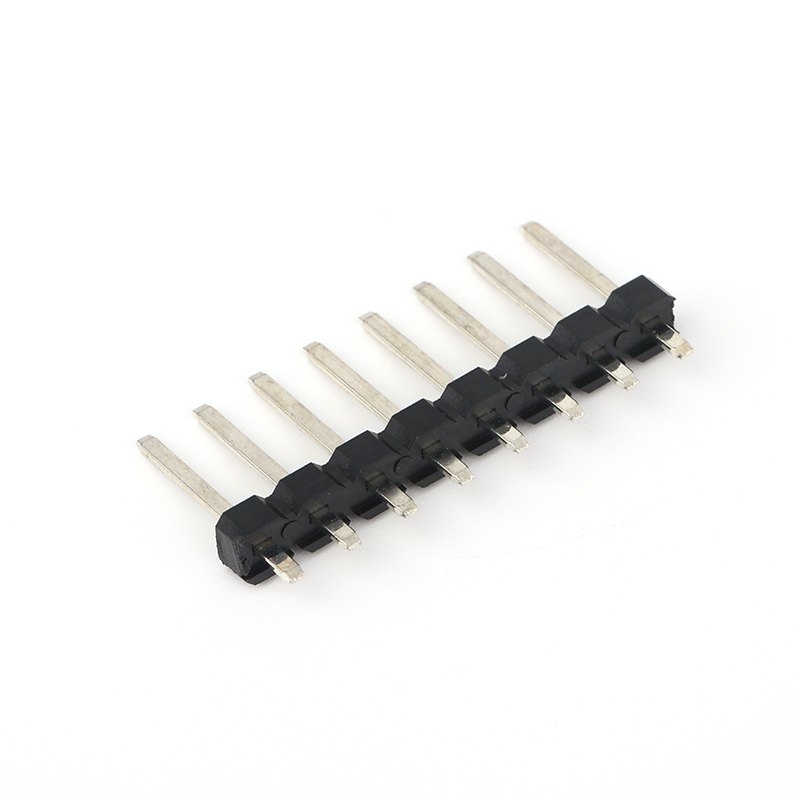

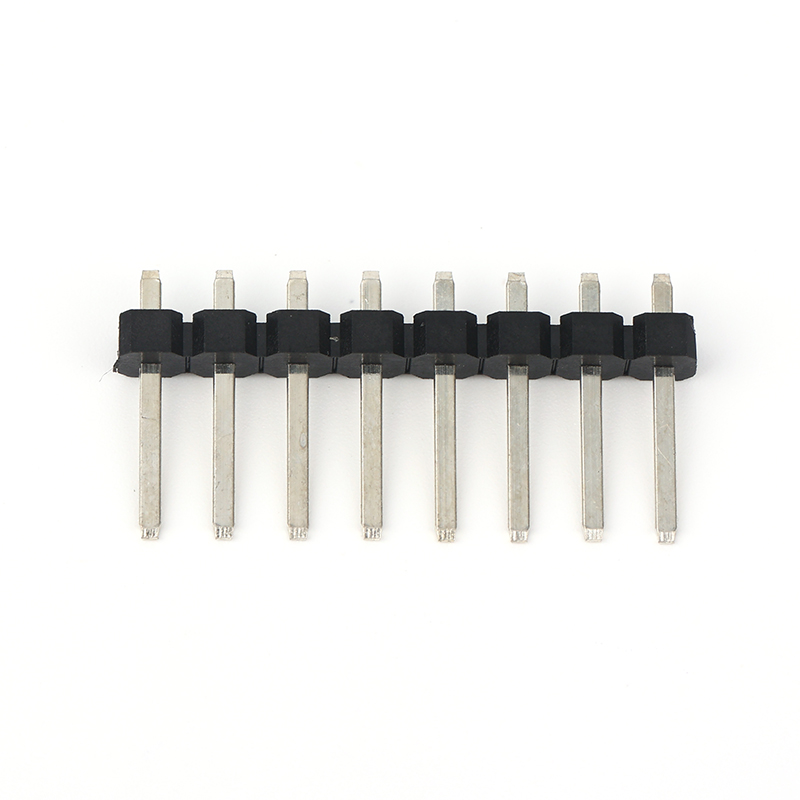

5.08mm Pitch Flat Pin Single Row Header

Get Latest Price

Min. Order:

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: 051403

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Product Highlights

With a pitch of 5.08mm, this model provides a broader pin separation, which helps reduce the chance of electrical short circuits and offers easier manual soldering and inspection. It is often used in power modules, industrial control systems, and communication hardware, where internal Pcb Board Connector components must carry a higher current.

Whether for an embedded control unit or a power board, the Connector Pin Header design supports excellent electrical conductivity and consistent mechanical performance.

The flat pin structure not only ensures a stable connection during assembly but also provides strong solder joints for long-term use.

Item	Description
Application	Primarily used for internal device connections, not for external connectivity. Suitable for electronic products, industrial computers, communication systems, aftermarket components, etc.
Soldering Type	SMT / Straight / Right Angle / J Type / U Type
Number of Plastic Rows	Single row, Dual row
Rated Current	7A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C

Applications

This Pin Header Connector is suitable for internal connections only and is not designed for external device interfacing. It can be used in a wide range of applications such as:

Industrial computers

Power supply boards

Telecommunications equipment

Commercial automation

After-sales replacement and repair parts

Embedded control systems

The Pin Connector enables smooth signal or power flow between PCBs, ensuring reliability in complex environments.
