2.0mm double row 90 degree pin connector

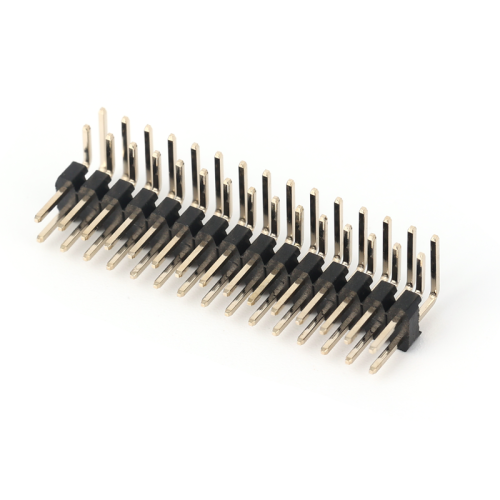

dgyzconn’s meticulously crafted 2.0mm double row 90 degree Pin Connector is the ideal solution for high-density signal transmission in the compact spaces of electronic devices. As a star product in the 2.0mm Pitch Pin Header series, its standard 2.0mm pitch double-row right-angle structure precisely meets the three-dimensional wiring needs of PCB boards, highly favored in the Pin Header Double Row 2.0mm pitch category for excellent anti-interference capabilities and space utilization.



This connector features high-purity copper alloy pins with a diameter of 0.50.5 (**Pin diameter 0.50.5**) and tin-plated surfaces (2.0mm Tin-plated pin header), paired with high-temperature-resistant PA9T materials (2.0mm pitch pin PA9T material) and a double-layer plastic structure (2.0mm pitch two-layer plastic pin headers). The 90-degree right-angle technology (2.0mm pitch ,Right Angle pin header) effectively isolates signal layers to reduce crosstalk. It can stably carry 5A current in environments ranging from -40°C to +105°C, with a contact resistance as low as 15mΩ. The double-row design supports parallel transmission of up to 20PIN signals, with a 2.5mm plastic height that balances installation convenience and heat dissipation. Installed via SMT technology (2.0mm SMT Pin Header), the design without locating posts (2.0mm pitch pin header without locating posts) offers flexible wiring space. Certified by IATF16949, ISO9001, and RoHS-compliant, it is widely used in smart terminals, communication devices, etc., providing stable and reliable support for various complex circuit connections.

Item	Description
Application	Primarily used for internal device connections; not suitable for external connectivity.
	Applicable for electronics, industrial computers, telecom systems, aftermarket components.
Soldering Type	SMT / Straight / Right Angle / J Type / U Type
Plastic Row Options	Single Row, Dual Row
Rated Current	2A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash plating
	Nickel underlayer ≥50μ"
Number of Contacts	6–80 PINs
Certifications	ISO9001, ISO14000
RoHS Compliance	Yes
Material Options	PBT, PA46, PA6T, PA9T, LCP
Packaging	Standard: plastic tray + carton; customizable upon request
Service	ODM and OEM support; color customization available
