Model No.: 0618116

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Project	Parameter Description

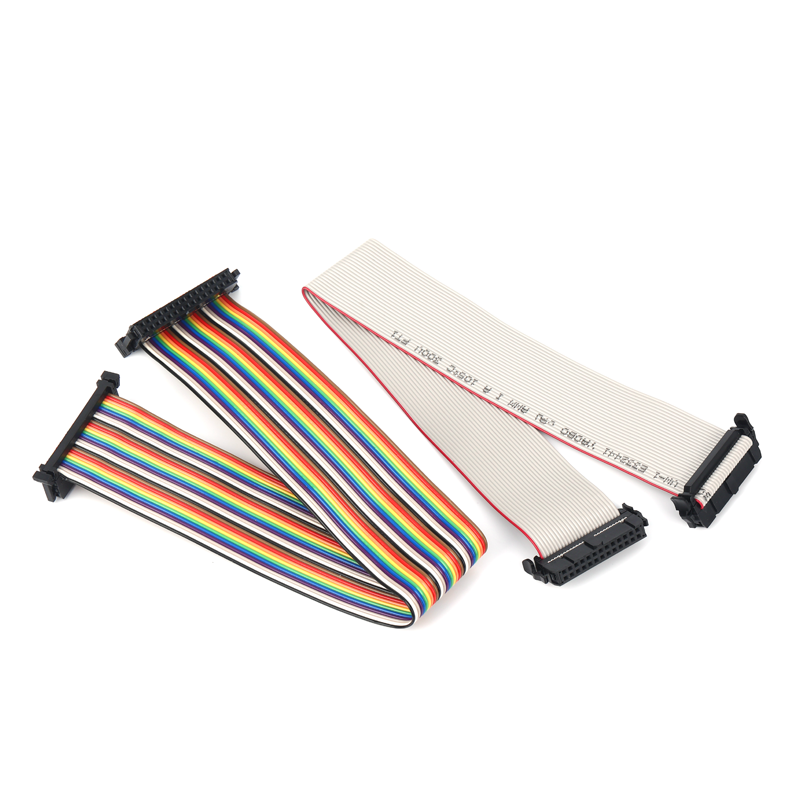

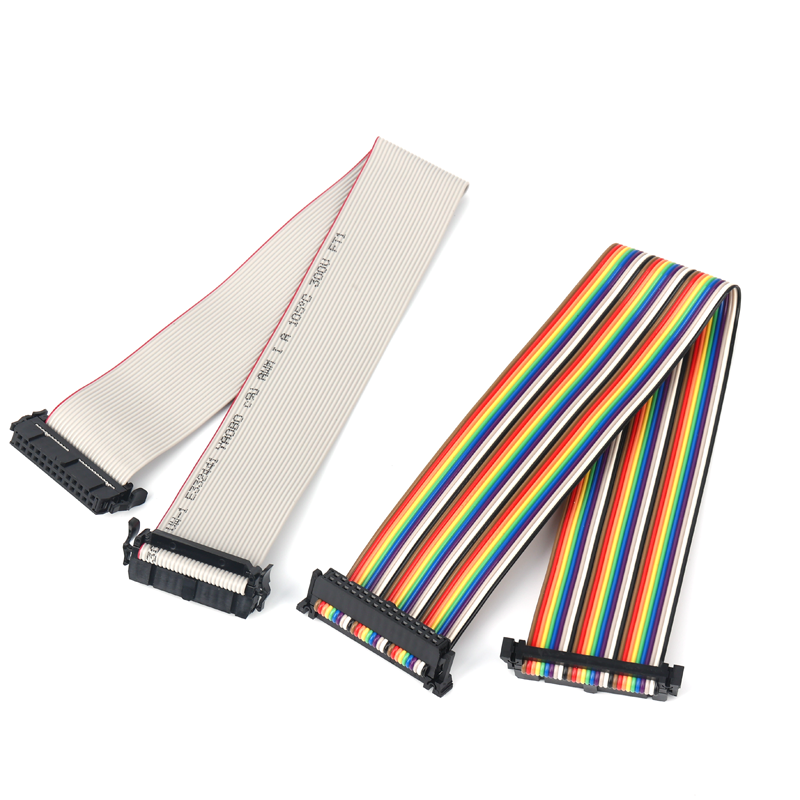

Product Name	IDC XP Ribbon Cable, Gray Ribbon Cable IDC 1.27, Two - piece Type, etc.
Connection Method	IDC (Insulation Displacement Contact)
Ribbon Cable Type	Gray Ribbon Cable
Ribbon Cable Standard	UL2678, etc.
Conductor Specification	30AWG
Pitch	1.27mm (Standard)
Core Count (PIN Count)	6 - 100 PIN (Common: 10P, 14P, 16P, 20P, 30P, 40P, 50P, 60P, 64P, etc.)
Plug Structure	Two - piece / Three - piece (with or without cover)
Connector Color	Black (Standard), customizable color
Ribbon Cable Color	Gray (Standard)
Rated Current	0.5A / PIN (depending on conductor specification)
Working Voltage	250V AC / DC (depending on insulation material)
Working Temperature Range	105℃ - 300V (Note: There may be unit confusion in the temperature range description. It is recommended to check the actual parameters.)
Flammability Rating	UL94V - 0 (connector housing)
Contact Resistance	Maximum 20mΩ
Insulation Resistance	Minimum 300MΩ
Terminal Material	Phosphor Bronze or Brass
Terminal Plating	Tin - Plated or Gold - Plated (optional)
Connector Housing Material	PBT and other high - temperature engineering plastics
Service Life	Plugging and Unplugging ≥ 100 times
Certification Standards	RoHS, REACH, UL (optional)
Packaging Method	Generally PE bags + cartons, supporting customized labels and packaging
OEM/ODM Support	Supported, including customization of wire length, terminals, colors, etc.

The 1.27 rehearsal line pressure FC2.54 XP launched by dgyzconn is an ideal solution for internal connections of electronic devices. As a member of the rehearsal line pressure fc2 54 xp product family, it stands out in the fc2 54 xp rehearsal line pressure and line pressure fc2 54 xp rehearsal categories with its excellent performance, while combining the installation convenience and connection stability of Idc Flat Ribbon Cable and Fc Terminated Flat Cable.

The rehearsal line uses high-purity oxygen free copper conductors with excellent conductivity, effectively reducing signal transmission losses and ensuring fast and stable data transmission. The precise 1.27mm pitch design perfectly fits various FC2.54 XP interfaces, allowing for smooth plugging and unplugging with a tight connection and high reliability. The gray outer sheath is made of eco-friendly PVC material, which is wear-resistant and bend-resistant. The red marking on the edge (echoing Red-Edge Gray Ribbon Cable) facilitates quick identification of wire sequences and simplifies the installation process. Its flat structure design effectively saves internal space of devices, making wiring and organization easier.

In addition to its outstanding performance and wide application scenarios, dgyzconn also provides comprehensive after-sales support for this 1.27 rehearsal line pressure FC2.54 XP, including technical consultation for customized length requirements and quality assurance services, to solve potential usage concerns for customers. Up to now, this product has obtained positive feedback from a large number of electronic device manufacturers, with its stability and durability being highly recognized in long-term use tests. Looking ahead, dgyzconn will continue to optimize the product's material formula and process details based on the evolving needs of the electronic industry, ensuring it remains compatible with more advanced device interfaces and maintains its leading position in the fc2 54 xp related product market.
