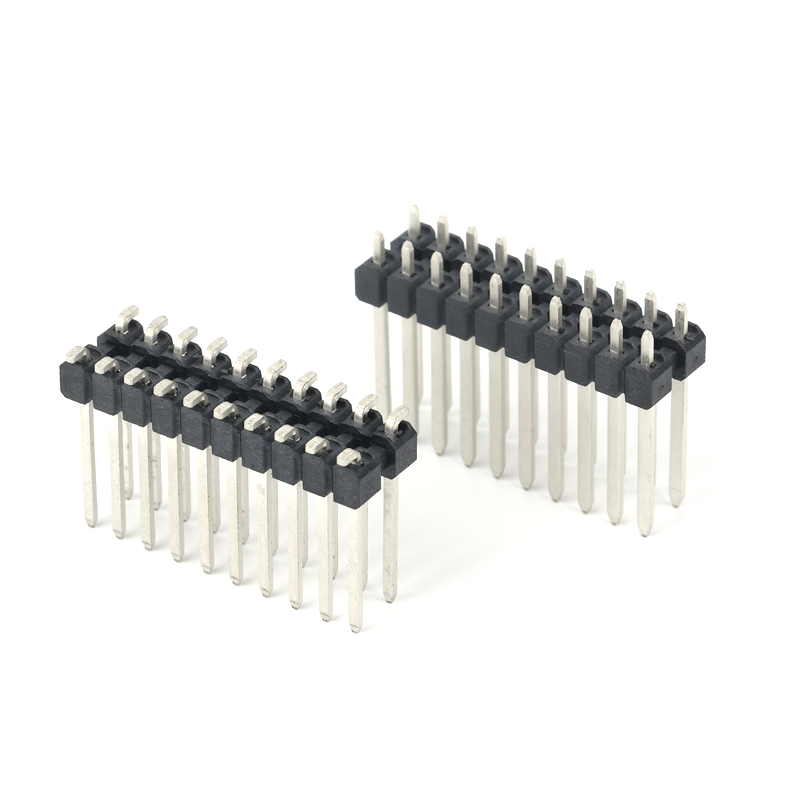

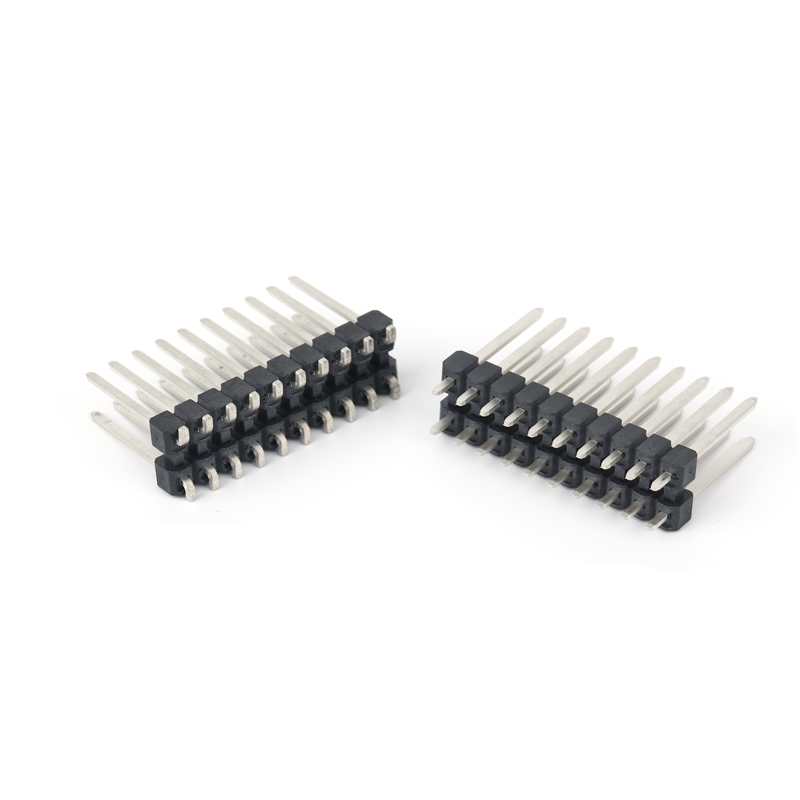

3.5 pitch connector double row SMT patch

dgyzconn’s 3.5 pitch connector double row SMT patch is an efficient connection solution designed for high-density integration and automated production of modern electronic devices. As an innovative product in the 3.5 Spacing connector series, its standard 3.5mm pitch double-row structure precisely adapts to the complex wiring requirements in the compact space of PCB boards, standing out in the 3.5 Spacing connector double row category for excellent soldering technology and stable performance.



This connector features high-purity copper alloy pins with tin-plated surfaces, perfectly matching Female Connector Head to ensure stable signal and power transmission. Each pin can carry 5A current, maintaining a contact resistance as low as 15mΩ in environments ranging from -40°C to +105°C. Through advanced SMT soldering technology, it achieves precise welding with the circuit board, greatly improving production efficiency. The double-row design supports parallel transmission of up to 40PIN signals. With a high-temperature-resistant PBT material shell, it offers both excellent insulation and mechanical strength. The plastic height is 3.0mm, and the design without locating posts provides flexible wiring space. Compliant with RoHS standards and certified by ISO9001, it is widely used in consumer electronics, communication devices, etc., making it a reliable connection choice for automated production lines.
