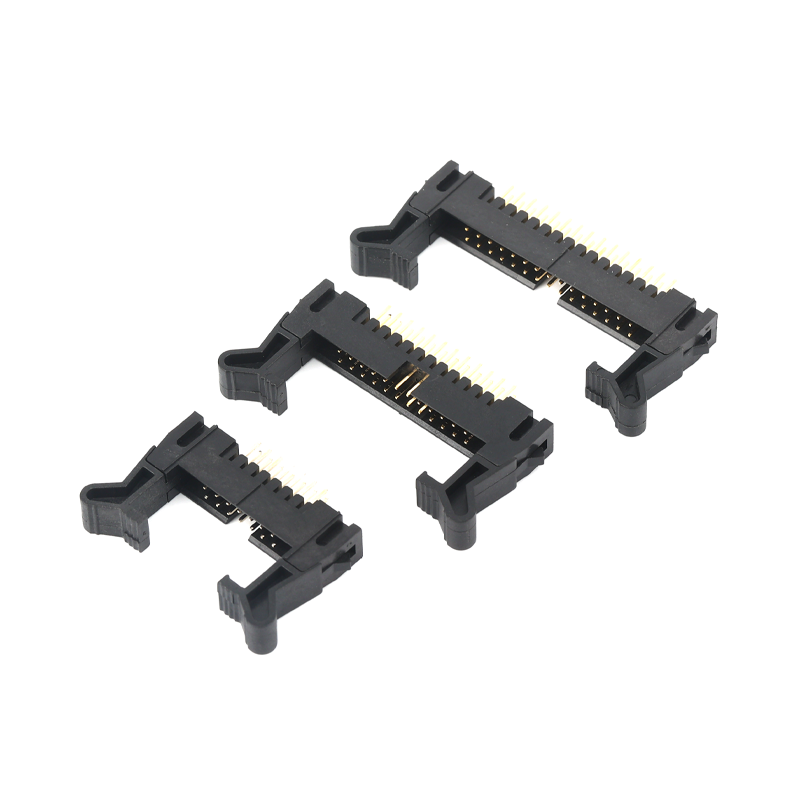

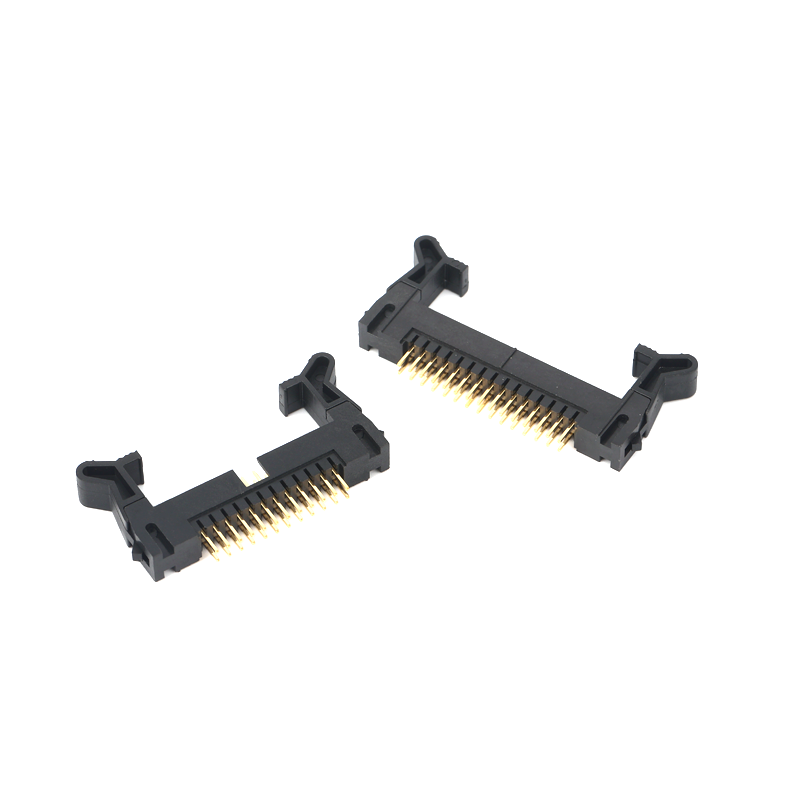

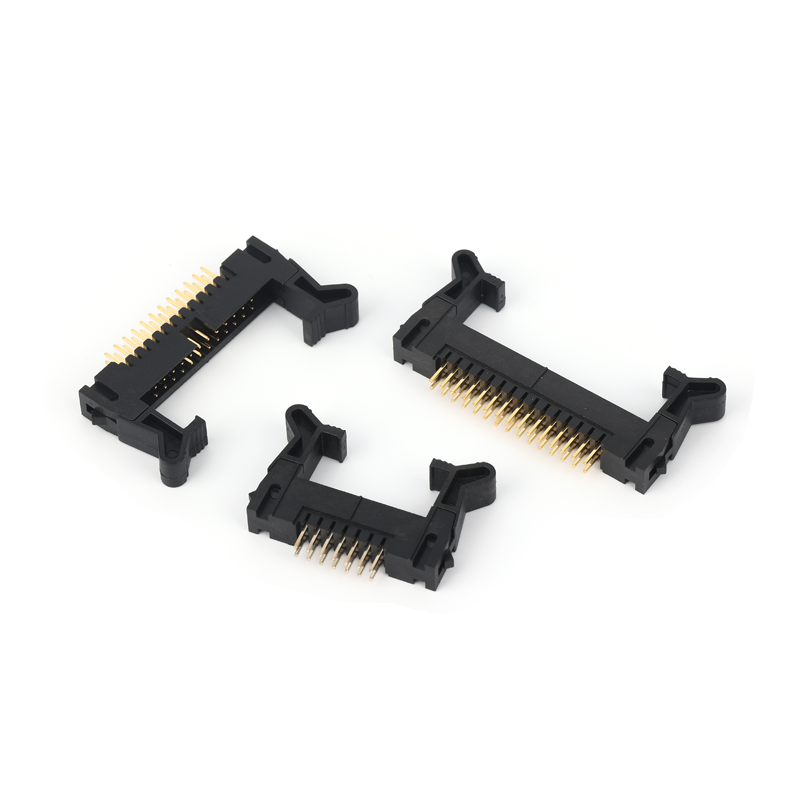

2.0mm Long ear buckle black Box Header

dgyzconn’s 2.0mm Long ear buckle black Box Header is an excellent choice for internal device connections, suitable for electronics, industrial computers, and more. As part of the Box Header series, its unique long ear buckle design with a double-row structure not only facilitates installation and fixation but also enhances connection stability. Supporting various soldering types including SMT, straight, right-angle, J-type, and U-type, it perfectly meets the installation needs of all kinds of SMT patch Header Connector.



With terminals made of C2680 and C5191 materials, paired with black LCP (UL94V-0) insulators, the product operates stably from -40°C to +105°C, and the 2A/pin rated current meets diverse circuit requirements. The contacts adopt the Gold Flash plating process, combined with a ≥50u" nickel base layer, limiting the contact resistance to a maximum of 20mΩ, ensuring stable signal transmission. With 6 - 64 PIN options, it satisfies the connection requirements of different devices. Its specifications are highly compatible with 2.0mm Long ear buckle Box Header, 2.0mm black Box Header, and black Box Header 2.0mm. Certified by ISO9001 and ISO14000, and RoHS-compliant, it comes in standard plastic tray + carton packaging, offering flexible ODM and OEM services with customizable colors, providing reliable solutions for internal device connections.

Attributes	Details
Application	Mainly for internal device connections; suitable for electronics, industrial computers, communication systems, after-sales parts, etc.
Soldering Type	SMT / Straight / Right-angle / J-type / U-type
Plastic Rows	Double-row
Rated Current	2A/pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Maximum 20mΩ
Contact Plating	Gold Flash; Nickel layer on base plate ≥50u"
Pin Count	6 - 64 PIN
Certifications	ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PA6T, PA9T, LCP
Packaging Details	Standard packaging: plastic tray + carton; customizable according to requirements
Service Types	ODM and OEM services available; color can be customized flexibly
