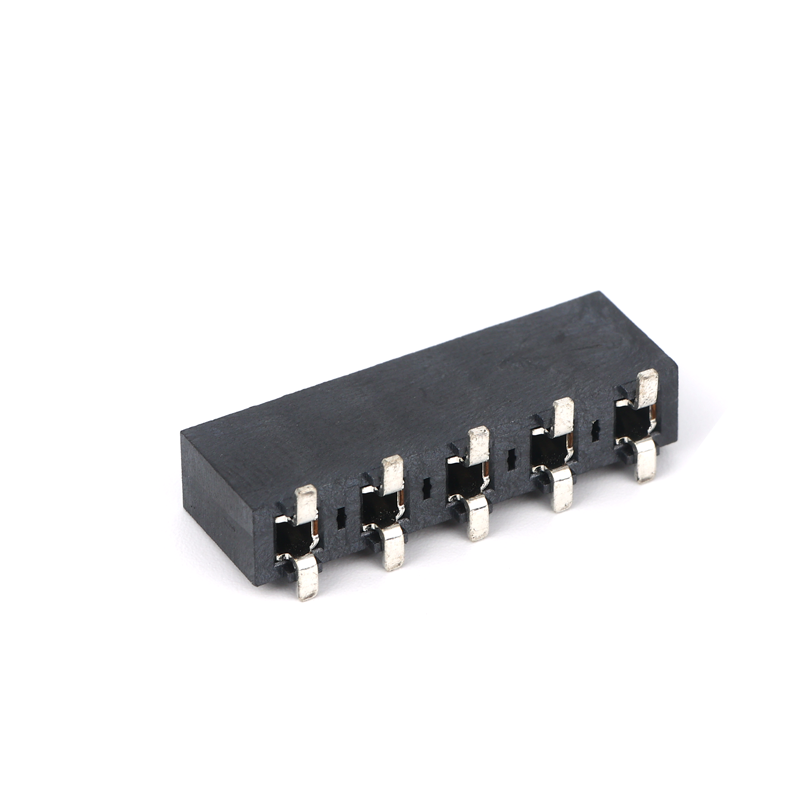

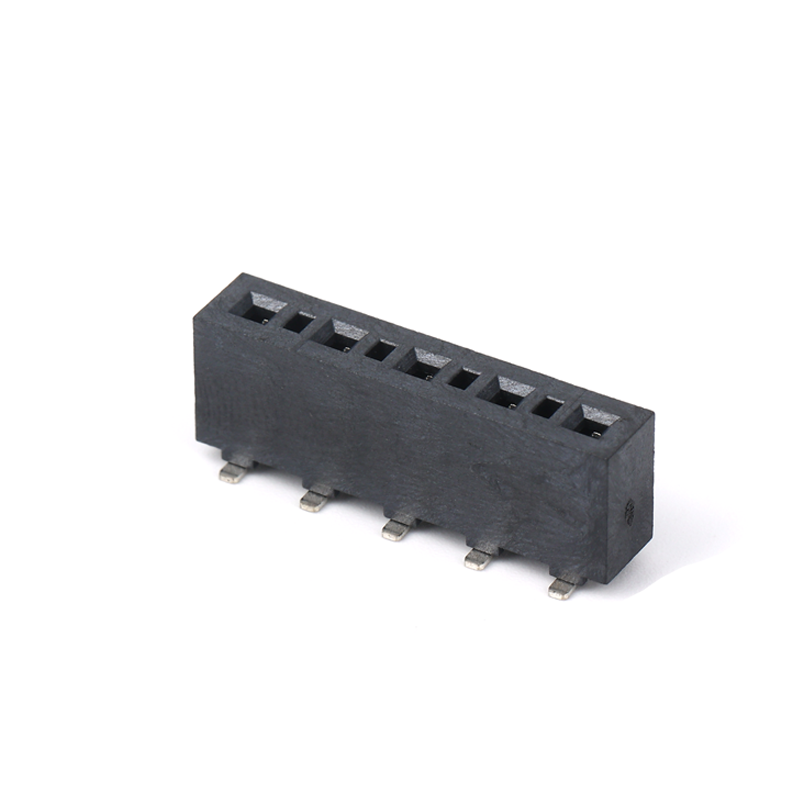

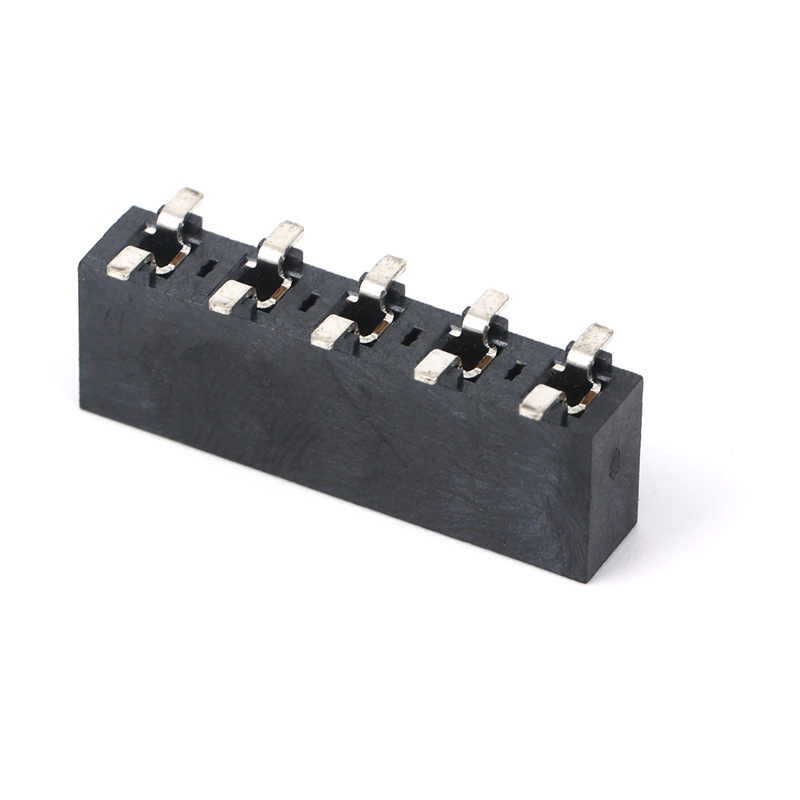

5.08mm Single Row SMT female connector

dgyzconn’s 5.08mm Single Row SMT Female Connector is a high-quality product designed for efficient internal connections in devices. As part of the 5.08mm Pitch Female Header series, its single-row structure with a standard 5.08mm pitch precisely meets the wiring requirements of PCB boards in fields such as electronics products and industrial computers, excelling in the Female Header Single Row 5.08mm Pitch category.



This connector features C2680 copper alloy terminals with tin plating (5.08mm Tin-plated Female header) and black LCP (UL94V - 0) insulation materials (5.08mm pitch LCP material). It can stably carry 5A current per pin in environments ranging from -40°C to +105°C, with a maximum contact resistance of 20mΩ. With SMT soldering technology (5.08mm SMT Female Header), it firmly bonds to PCB boards, ensuring stable signal transmission. The single-row design and structure without locating posts (5.08mm pitch Female header without locating posts) provide flexible wiring space. Certified by IATF16949, ISO9001, etc., and RoHS-compliant, the standard packaging is a plastic tray with a carton. ODM and OEM customization services are available to meet various project requirements.

Attributes	Details
Application	Mainly used inside equipment, not for external device connectors. Suitable for electronics products, industrial computers, communication systems, after-sales parts, etc.
Welding Types	SMT / Straight / Right Angle / J - type / U - type
Plastic Rows	Single row, Double row
Rated Current	5A per pin
Operating Temperature	-40°C to +105°C
Terminal Materials	C2680; C5191
Insulator Material	LCP (UL94V - 0), Black
Processing Temperature Range	230°C to 260°C
Contact Resistance	Maximum 20mΩ
Contact Plating	Tin plating: 80 - 120u"; Welding area tin plating: 80 - 120u"; Bottom plate nickel layer: ≥50u"
Number of Contacts	6 - 25 PIN
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PA6T, PA9T, LCP
Packaging Details	Standard packaging is plastic tray + carton. Customization is available upon request.
Service Types	ODM and OEM services are provided. Colors can be customized flexibly.
