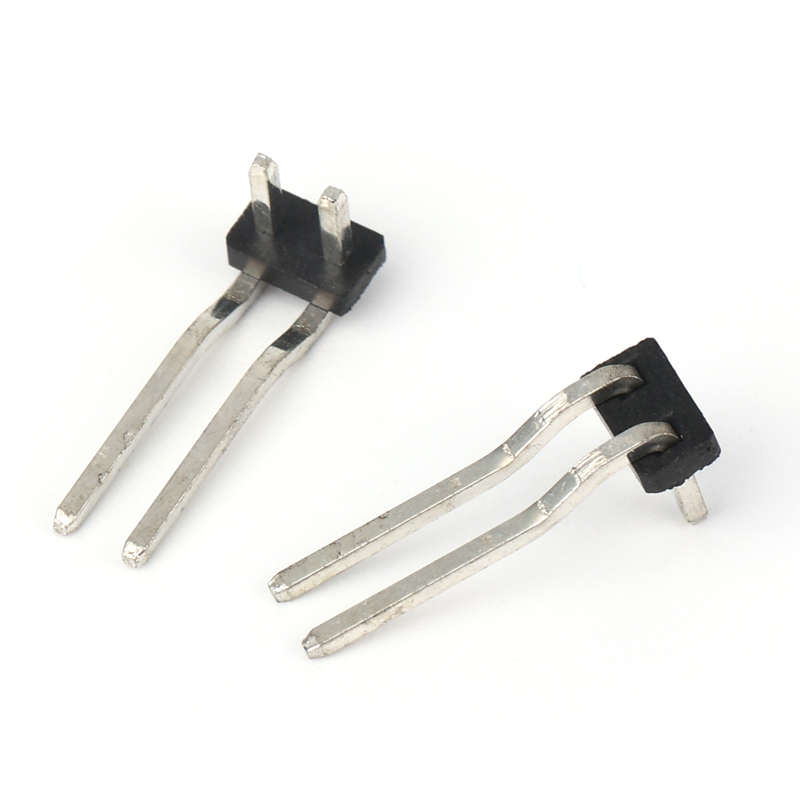

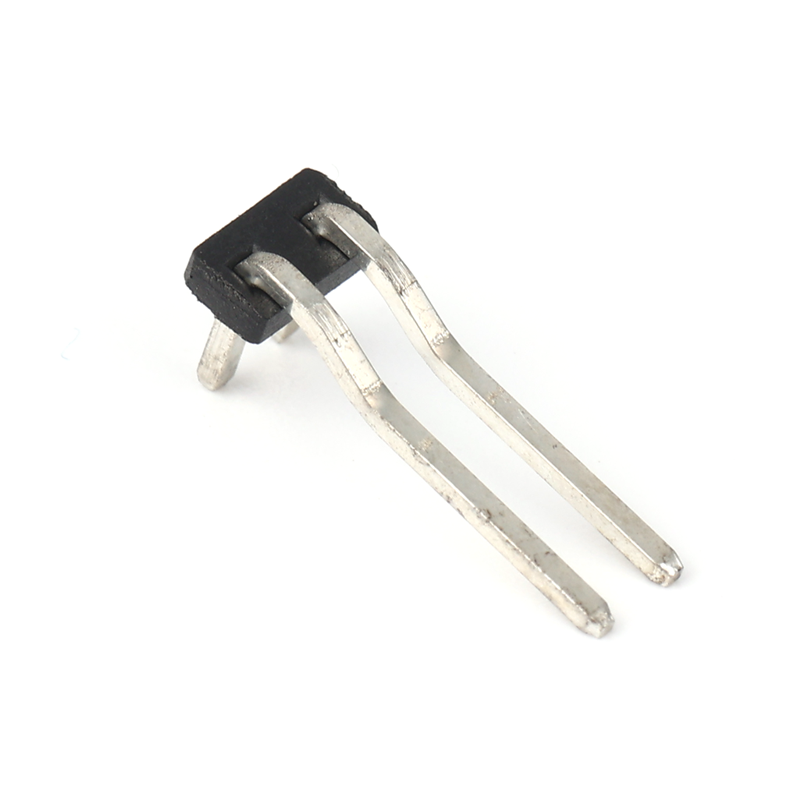

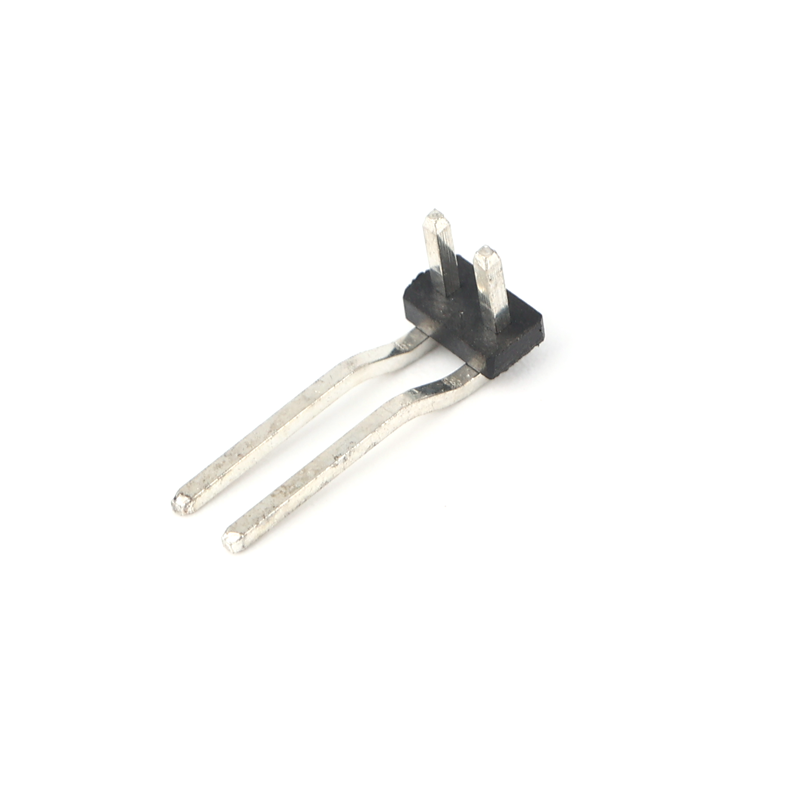

2.2mm Single Row 90 Degree Pin Header

Discover dgyzconn's precision Pin Header 2.20mm Pitch solution engineered for space-constrained applications. This single-row 90-degree angled header delivers superior vertical connectivity with gold-plated contacts ensuring <10mΩ resistance. Ideal as compact Board To Cable Connectors in industrial control systems, its high-temperature nylon housing withstands 260°C reflow cycles. Unlike conventional Pin Header Double designs, our single-row configuration reduces PCB footprint by 40% while maintaining 5A current rating. As a certified Pin Header Double Manufacturer and Supplier, dgyzconn guarantees RoHS compliance and IPC-610 Class 2 reliability. Optimize your robotics and automotive electronics with this vibration-resistant interconnect solution.

Item	Description
Application	Primarily used for internal device connections, not for external device connectors. Suitable for electronics products, industrial computers, communication systems, after-sales parts, etc.
Welding Types	SMT / Straight / Right Angle / J - type / U - type
Number of Plastic Rows	Single row, Double row
Rated Current	2A per pin
Operating Temperature	-40°C to +105°C
Terminal Materials	C2680; C5191
Insulator Material	LCP (UL94V - 0), Black
Processing Temperature Range	230°C to 260°C
Contact Resistance	Maximum 20mΩ
Contact Plating	Gold Flash; Bottom plate nickel layer: ≥50u"
Number of Contacts	6 - 80 PIN
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging Details	Standard packaging: plastic tray + carton. Customization available upon request.
Service Types	ODM and OEM services provided. Colors can be customized flexibly.
