2.54mm double row four plastic 180 degrees
Min. Order:1
Model No:060487
The 2.54mm double row four plastic 180 degrees launched by dgyzconn are precision components for achieving high insulation double row connections in electronic devices. Its 2.54mm standard spacing, double row design, four plastic (four layer...
-

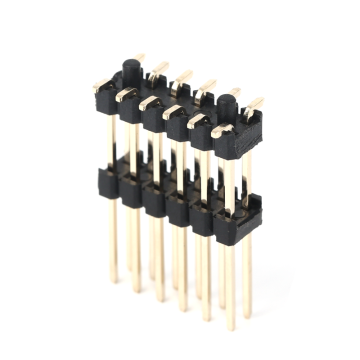

2.54mm double row double plastic pillar mounted
Min. Order:1
Model No:060486
The 2.54mm double row double plastic pillar mount launched by dgyzconn is an anti vibration component for electronic devices to achieve stable dual row connections. Its 2.54mm standard spacing, double row design, dual plastic shell, and column...
-
2.54mm double row three plastic surface mount
Min. Order:1
Model No:060485
The 2.54mm double row three plastic surface mount by dgyzconn is an insulation-enhanced component for high-density SMT connections. With 2.54mm pitch, dual rows and three-plastic (triple-insulation) structure, it fits SMT PCBs needing high...
-
2.54mm double row height 20.0 LCP
Min. Order:1
Model No:060484
The 2.54mm double row height 20.0 LCP by dgyzconn is a heat-resistant component for high dual-row connections. With 2.54mm pitch, dual rows, 20.0mm height and LCP material, it fits PCBs needing space for tall components, used in automotive engine...
-

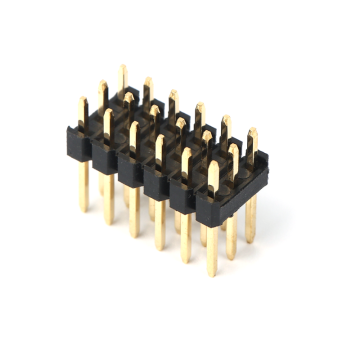

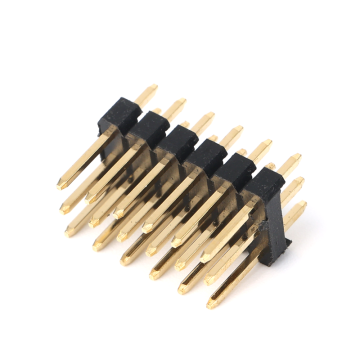

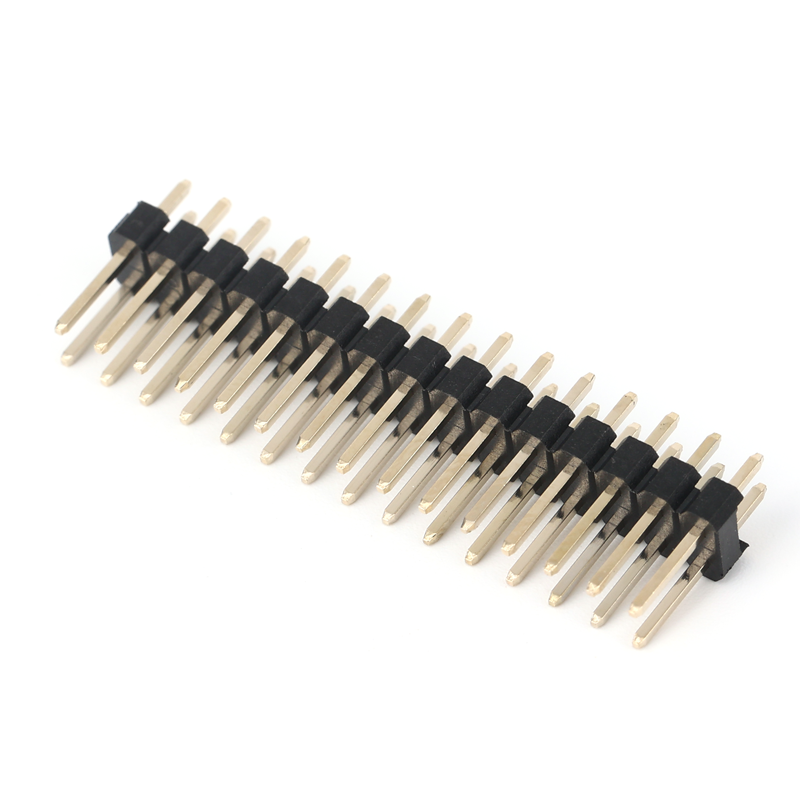

Pin spacing 2.54mm double row 180 degrees
Min. Order:1
Model No:060483
The Pin spacing 2.54mm double row 180 degrees by dgyzconn is an efficient component for dual-row linear connections. With 2.54mm pitch, dual rows and 180° straight structure, it fits PCBs needing large-scale same-direction wiring, used in industrial...
-

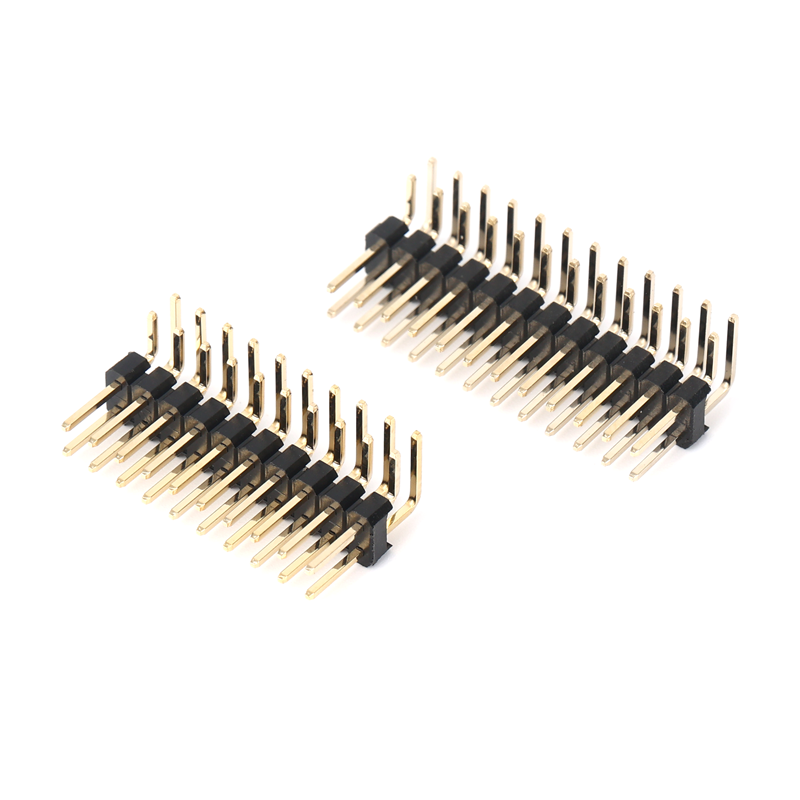

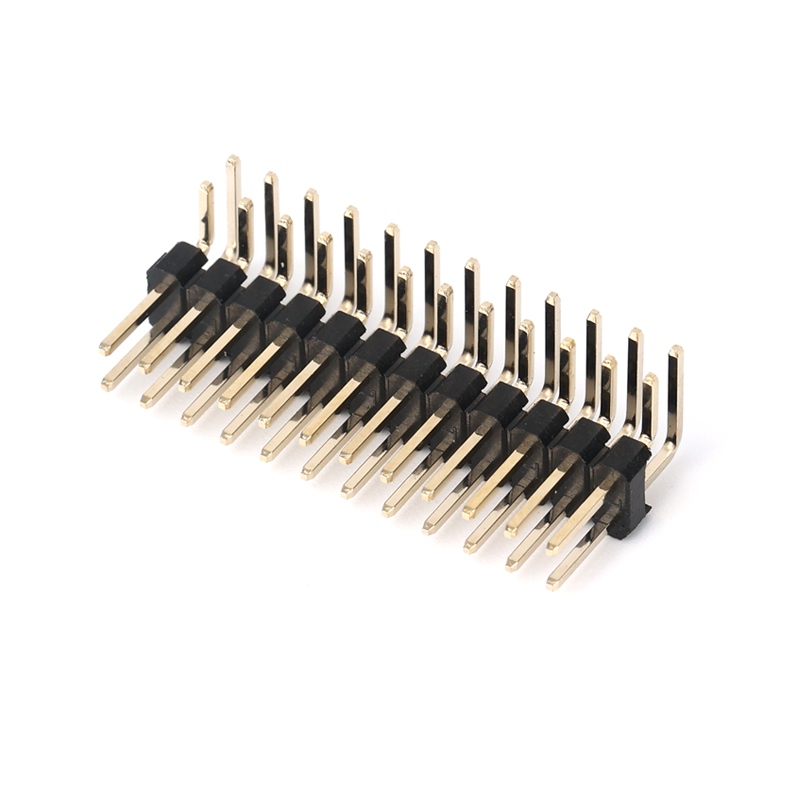

Pin spacing 2.54mm double row 90 degrees
Min. Order:1
Model No:060481
The Pin spacing 2.54mm double row 90 degrees by dgyzconn is a compact component for dual-row turning connections. With 2.54mm pitch, dual rows and 90° angle, it fits space-saving PCBs, used in embedded motherboards and small industrial controllers....
-
2.54mm double row double plastic 180 degree
Min. Order:1
Model No:060472
The 2.54mm double row double plastic 180 degree by dgyzconn is a durable component for dual-row stable connections. With 2.54mm pitch, dual rows, double plastic housing and 180° straight structure, it fits PCBs needing enhanced insulation, used in...
-
2.54mm connector 90 degrees high 7.5
Min. Order:1
Model No:060482
The 2.54mm connector 90 degrees high 7.5 by dgyzconn is a compact component for turning connections in electronic devices. Its 2.54mm standard pitch, 90-degree angle and 7.5mm height fit PCBs with specific height requirements, widely used in small...
-
Needle spacing 2.54mm three rows 180 degrees
Min. Order:1
Model No:060480
The Needle spacing 2.54mm three rows 180 degrees by dgyzconn is an efficient component for multi-signal linear transmission in electronic devices. Its 2.54mm standard pitch, three-row design and 180-degree straight structure fit high-density...
-

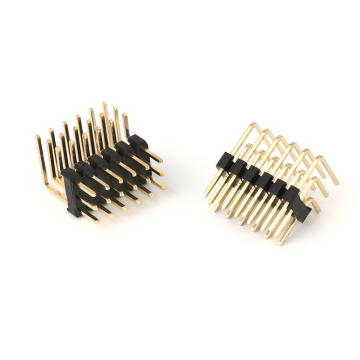

Pin spacing 2.54mm three rows 90 degrees
Min. Order:1
Model No:060479
The Pin spacing 2.54mm three rows 90 degrees by dgyzconn is an efficient component for multi-signal turning transmission in electronic devices. Its 2.54mm standard pitch, three-row design and 90-degree structure fit high-density turning wiring PCBs,...
-

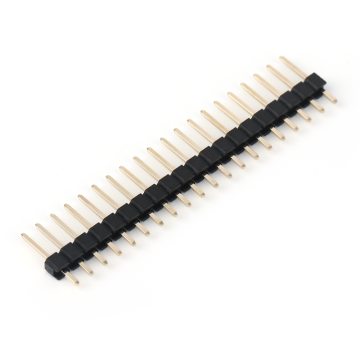

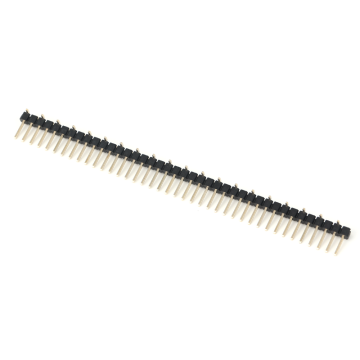

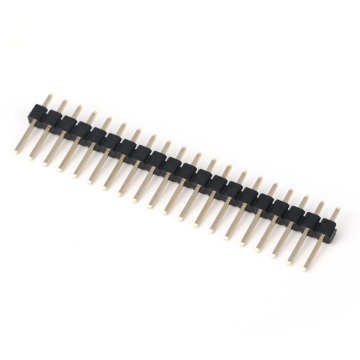

2.54mm Single Row Single Plastic 180 Degrees
Min. Order:1
Model No:060478
The 2.54mm Single Row Single Plastic 180 Degrees by dgyzconn is a practical component for linear connections in electronic devices. Its 2.54mm standard pitch, single-row design and 180-degree straight structure fit PCB layouts requiring...
-
2.54mm single row horizontal sticker with cap
Min. Order:1
Model No:060477
The 2.54mm single row horizontal sticker with cap by dgyzconn is an innovative component for horizontal sealed connections in electronic devices. Its 2.54mm standard pitch, single-row design, horizontal capped structure, and bottom adhesive sticker...
-
2.54mm single row horizontal SMT tin plating
Min. Order:1
Model No:060476
The 2.54mm single row horizontal SMT tin plating by dgyzconn is an efficient component for horizontal SMT connections in electronic devices. Its 2.54mm standard pitch, single-row design and horizontal SMT structure fit surface-mount PCB layouts,...
-
2.54mm single row double plastic 90 degrees
Min. Order:1
Model No:060475
The 2.54mm single row double plastic 90 degrees by dgyzconn is a durable component for turning connections in electronic devices. Its 2.54mm standard pitch, single-row design, double-plastic structure and 90-degree angle fit PCB layouts requiring...
-
2.54mm Pin spacing Single row filing SMT
Min. Order:1
Model No:060474
The 2.54mm Pin spacing Single row filing SMT by dgyzconn is a high-quality component for high-density on-board connections in electronic devices. Its 2.54mm standard pitch and single-row SMT design fit surface-mount PCBs, widely used in smart meter...
-

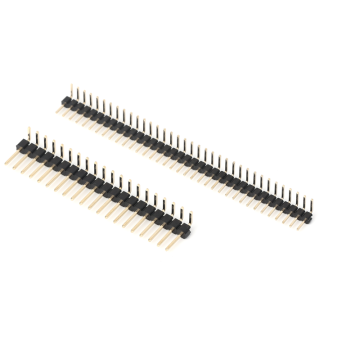

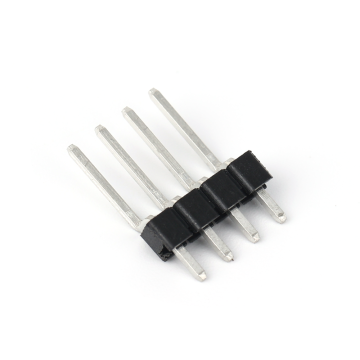

2.54mm Pin spacing Single row 90 degrees
Min. Order:1
Model No:060473
The 2.54mm Pin spacing Single row 90 degrees by dgyzconn is ideal for inter-board turning connections. Its 2.54mm pitch and 90-degree design fit right-angle wiring PCBs, used in microcontroller boards and automation modules. As a perfect match for...
-
Color connector 2.54mm single row 180 degree
Min. Order:1
Model No:060371
dgyzconn transforms visual identification in electronic assemblies with our innovative color-coded 2.54 Mm Pin Header system. This single-row 180° straight connector features vibrant nylon housings in 8 standard colors (red, blue, green, etc.),...
-

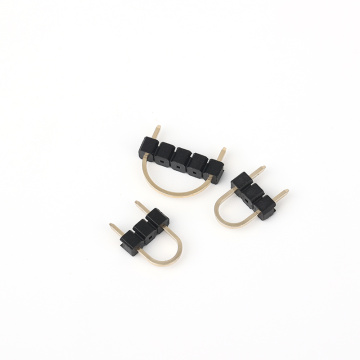

2.54mm U-shaped needle spacing per row
Min. Order:1
Model No:060370
dgyzconn introduces a breakthrough in reliable connectivity with our 2.54 Mm Pin Header featuring patented U-shaped needle design. This innovative configuration provides exceptional contact resilience in high-vibration environments, delivering...
-
SMT Pin Header 2.54mm Dual Row Double
Min. Order:1
Model No:051513
The 2.54mm Dual Row SMT Pin Header with Double Plastic and Post Design is optimized for vertical surface-mount installations, offering precise positioning through stabilizing plastic pillars. This pin header 2.54 mm ensures secure mating and is...
-
2.54mm Pitch Color Pin Header Single Row
Min. Order:1
Model No:051404
The 2.54mm Pitch Color Pin Header (Single Row, 180°) by DGYZCONN is a custom-designed connector solution that brings both functionality and visual clarity to internal PCB systems. As a vibrant alternative to traditional black insulators, the colored...
-
2.54mm Dual Row Pin Header Dual Plastic
Min. Order:1
Model No:051405
The 2.54mm Dual Row Pin Header with Dual Plastic Insulators (180°) is a premium board-level interconnect solution designed for applications requiring high-density pin configurations and superior alignment stability. This Pin Header Connector...
-
Pin Header 2.54mm Single Row Double Plastic
Min. Order:1
Model No:051503
The 2.54mm Single Row Double Plastic 90° Pin Header features dual plastic insulators for enhanced mechanical stability and alignment. This double sided pin header is suitable for applications requiring robust connections and precise mating. Why...
-
Pin Header 2.54mm Single Row Plastic
Min. Order:1
Model No:051506
The 2.54mm Triple Row 180° Pin Header is designed to meet the growing demand for high-density signal connections in compact electronic assemblies. With a standard Pin Header 2.54mm Pitch, this triple-row configuration allows engineers to achieve...
-
2.54mm Triple Row 180 Degree Pin Header
Min. Order:1
Model No:051508
The 2.54mm Triple Row 180° Pin Header is designed for applications that demand high pin density with straight vertical mounting. Featuring three rows of pins spaced at 2.54 mm, this connector enables compact and reliable board-to-board interfaces,...
Pin Header 2.54mm PitchThe Pin Header 2.54mm Pitch by dgyzconn is a versatile and widely-recognized electrical connection solution, renowned as a standard in the electronics industry. Its 2.54mm pitch offers excellent compatibility and ease of use, making it a preferred choice for a broad range of applications from consumer electronics to industrial equipment. Crafted with high-precision stamping and advanced plating techniques, the pin header ensures reliable electrical conductivity, remarkable durability, and superior corrosion resistance. Through strict quality control at every production stage, we guarantee consistent performance, providing a trusted connection option for professionals across diverse fields.Product Features
Xometry Instant Engine flower
Xometry Instant Engine flower
Xometry Instant Engine flower
Xometry Instant Engine flower
Application ScenariosSmart home devicesEnables efficient power and data transmission in smart sockets, smart lights, etc.Security monitoring equipmentProvides stable electrical connections for cameras, access control systems, and adapts to variable outdoor environments.Educational and research equipmentCommonly used in experimental circuit boards and teaching instruments, facilitating student hands-on practice.3D printersEnsures stable signal and power transmission in the control circuits of 3D printers.
Product PhilosophyPlease listen to usAt dgyzconn, the Pin Header 2.54mm Pitch embodies our philosophy of "Standardization, Affordability, and Reliability". We adhere to industry standards while focusing on providing cost-effective yet reliable connection solutions. By continuously improving manufacturing processes and quality control, we aim to offer products that meet the diverse needs of customers across different industries. Our commitment to excellence ensures that every 2.54mm pitch pin header represents a perfect combination of quality, performance, and value.Original ConceptFAQ
How to choose between 2.54mm and 1.27mm pitch pin headers?The 2.54mm pitch pin headers are more suitable for low-density circuits, large-current transmission, or manual soldering scenarios, with easy operation; the 1.27mm pitch is suitable for medium-density circuits, focusing on space compactness. If high installation convenience is required, choose 2.54mm pitch pin headers.Can 2.54mm pitch pin headers be used in high-temperature environments?Yes. The pin headers from dgyzconn can withstand soldering temperatures of 260℃ and operate within -40℃ to 125℃. For long-term high-temperature use, choose high-temperature resistant plastics and enhance heat dissipation.How to test the contact resistance of pin headers?Use a micro-ohmmeter to measure, with contact resistance <50mΩ; ensure tight contact between pins and probes, and conduct the test in a dry, static-free environment; measure each pin 2-3 times and take the average for accuracy.What should I do if the pin header fails to fit the socket?Check for pitch, row number, and pin shape compatibility; measure the diameter of pins and socket holes; if still not suitable, contact dgyzconn's technical team with product details for assistance.
