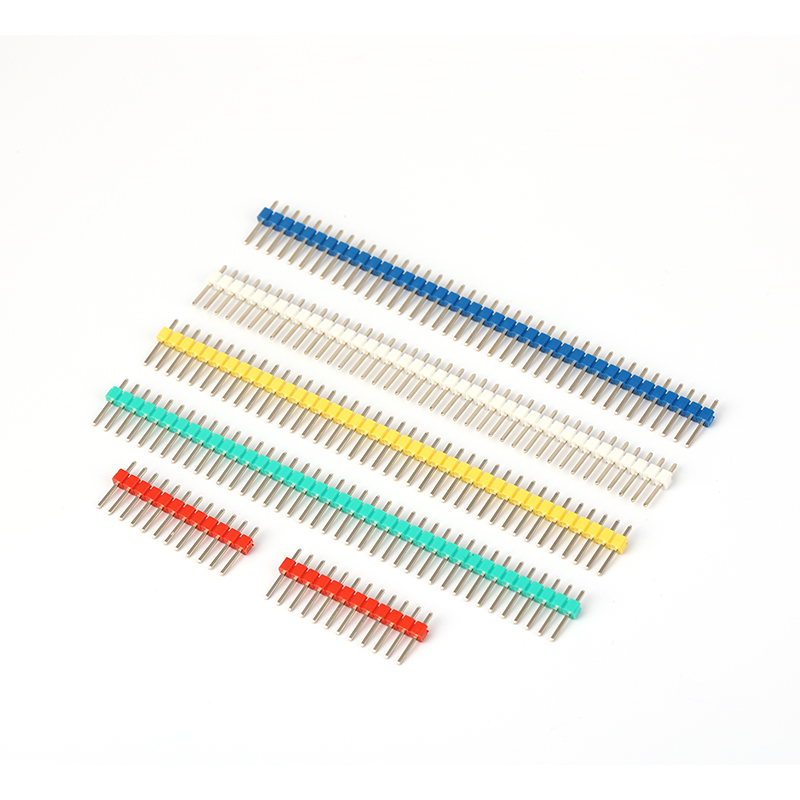

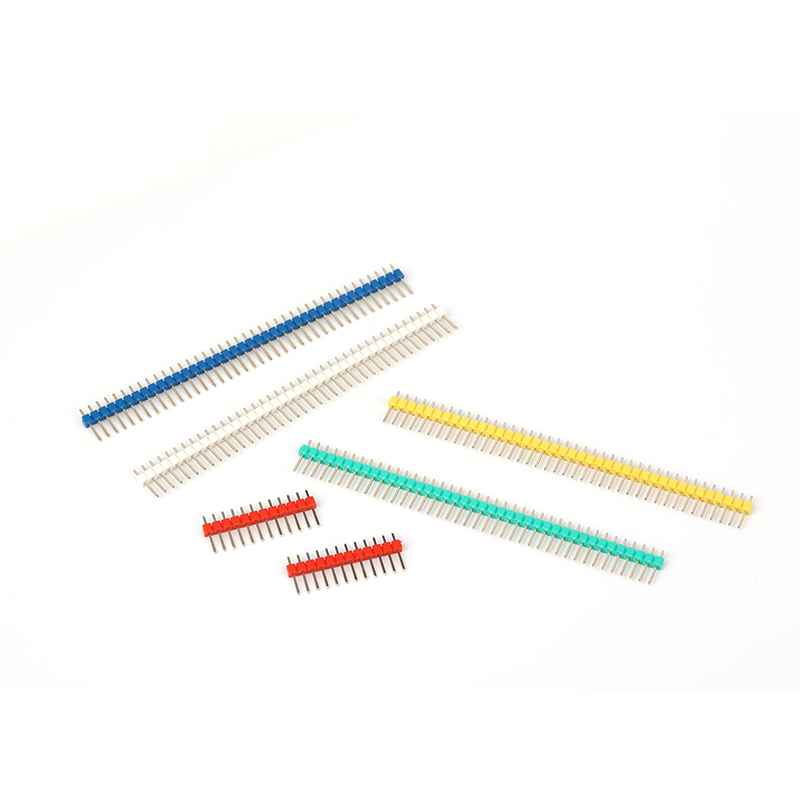

The 2.54mm Pitch Color Pin Header (Single Row, 180°) by DGYZCONN is a custom-designed connector solution that brings both functionality and visual clarity to internal PCB systems. As a vibrant alternative to traditional black insulators, the colored housing enhances identification during assembly and maintenance processes.

This Pin Header 2.54mm Pitch version features a single-row layout with straight (180-degree) pins, making it ideal for Board-To-Board Connector applications in consumer electronics, industrial control panels, and communication systems. The colored insulation body not only improves aesthetics but also serves a practical role in error prevention during multi-header installations.

As a trusted Pin Header Connector, this product maintains high signal integrity and solid mechanical retention. With support for up to 80 pins per row, it allows engineers to design highly flexible systems.

The terminal material is made from C2680 or C5191 copper alloy, offering excellent conductivity, while the gold-flash plating ensures long-lasting performance with low contact resistance. The insulation is molded from high-temperature LCP (UL94V-0), making the part suitable for reflow soldering environments up to 260°C.

This 2.54 Mm Header Connector supports both SMT and through-hole soldering types, providing engineers with the adaptability needed during PCB layout planning. It is ideal for internal device interconnects and is RoHS-compliant, ISO9001, and IATF16949 certified for quality and reliability.

In addition, DGYZCONN offers OEM/ODM customization with flexible pin counts, housing colors, packaging styles, and plating options. Whether you need a vibrant header for better visibility or tailored pinout requirements, this Pcb Board Connector is a dependable and adaptable choice

Item	Description
Application	Primarily used for internal device connections, not for external connectivity. Suitable for electronic products, industrial computers, communication systems, aftermarket components, etc.
Soldering Type	SMT / Straight / Right Angle / J Type / U Type
Number of Plastic Rows	Single row, Dual row
Rated Current	3A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash plating Nickel underlayer: ≥50μ"
Number of Contacts	6–80 PINs
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging Details	Standard packaging in plastic trays + cartons, customizable upon request
Service Type	ODM and OEM services available, color customization supported
