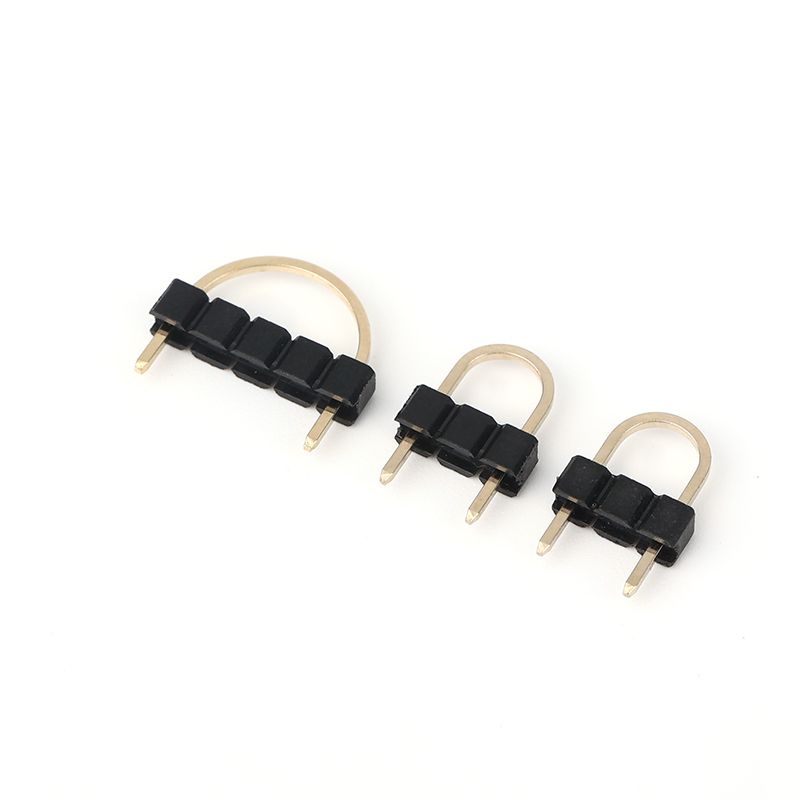

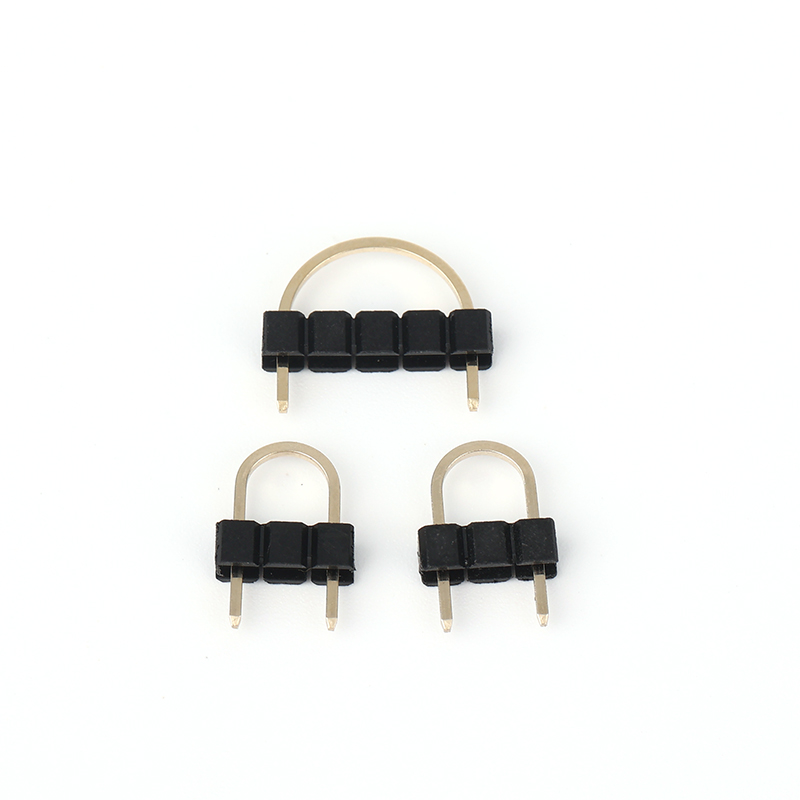

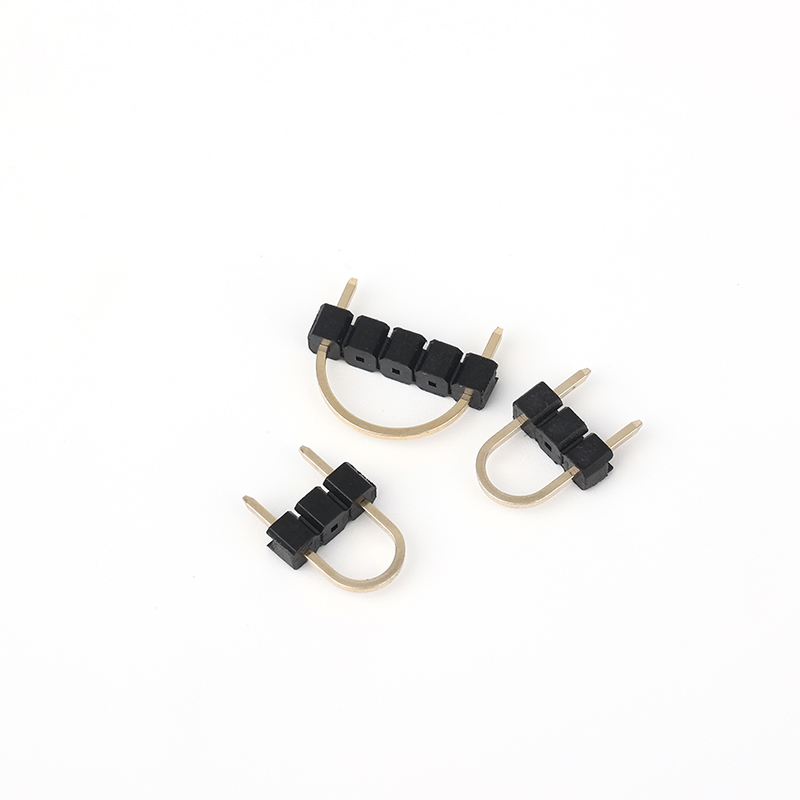

2.54mm U-shaped needle spacing per row

dgyzconn introduces a breakthrough in reliable connectivity with our 2.54 Mm Pin Header featuring patented U-shaped needle design. This innovative configuration provides exceptional contact resilience in high-vibration environments, delivering stable 3A current per pin with <15mΩ resistance. The unique U-bend structure of each needle in this 2.54 Mm Header Connector absorbs mechanical stress 40% better than traditional straight-pin solutions, significantly extending connector lifespan in automotive control modules and industrial robotics. As specialists in precision Pin Header 2.54 Mm manufacturing, we ensure gold-plated contacts and UL94V-0 thermoplastic housing withstand 200+ mating cycles. Our 2.54 Pin Header series offers customizable row configurations (1-4 rows) with optional locking mechanisms for critical applications. Experience reduced maintenance costs and enhanced signal integrity with this vibration-optimized interconnect solution.

Item	Description
Application	Primarily used for internal device connections
Suitable Industries	Electronics, Industrial PCs, Communication Systems, Aftermarket Components
Mounting Type	SMT / Straight / Right Angle / J-Type / U-Type
Rows of Plastic	Single Row / Double Row
Rated Current	3A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature	230°C to 260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash / Tin Plating
Base Nickel Layer	≥50μ"
Number of Contacts	6–80 PINs
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging	Standard: Plastic Tray + Carton (customizable on request)
Service Type	ODM & OEM services available; flexible color customization supported
