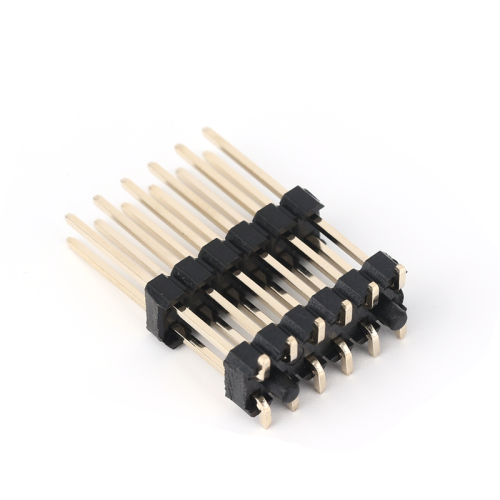

2.54mm double row double plastic pillar mounted

The 2.54mm double row double plastic pillar mount launched by dgyzconn is an anti vibration component for electronic devices to achieve stable dual row connections. Its 2.54mm standard spacing, double row design, dual plastic shell, and column mounted fixed structure are suitable for PCB board layouts that require enhanced installation stability. It is widely used in heavy machinery control boxes, rail transit signal modules, and other scenarios. As a partner that precisely matches the 2.54 Mm Pin Header, it can synchronously transmit multiple signals to ensure stable power and data flow in vibration environments. ​



The dual plastic shell of this connector enhances insulation, and the column mounted structure enhances vibration resistance through pillars that penetrate the PCB. The dual row layout can simultaneously carry power and control signals. This design is compatible with the installation requirements of Pin Header 2.54 Mm and is suitable for use in high-frequency vibration equipment. The internal terminals are made of gold-plated phosphor bronze material, with a contact resistance as low as 8m Ω and a plug-in life of over 6000 times. When combined with 2.54 Pin Header, they form a reliable path to meet the transmission requirements of strong vibration environments. ​



The shell is made of high-temperature resistant PA66 material, which can work stably in environments ranging from -40 ℃ to 105 ℃. Compared with the traditional 2.54 Mm Header Connector, its dual plastic structure has better insulation and stronger column mounted fixed vibration resistance, making it particularly suitable for heavy industrial equipment. Whether it is the inter board connection of mechanical control boxes or the signal transmission of rail transit, this double row double plastic column mounted connector has become the preferred choice due to its excellent stability.
