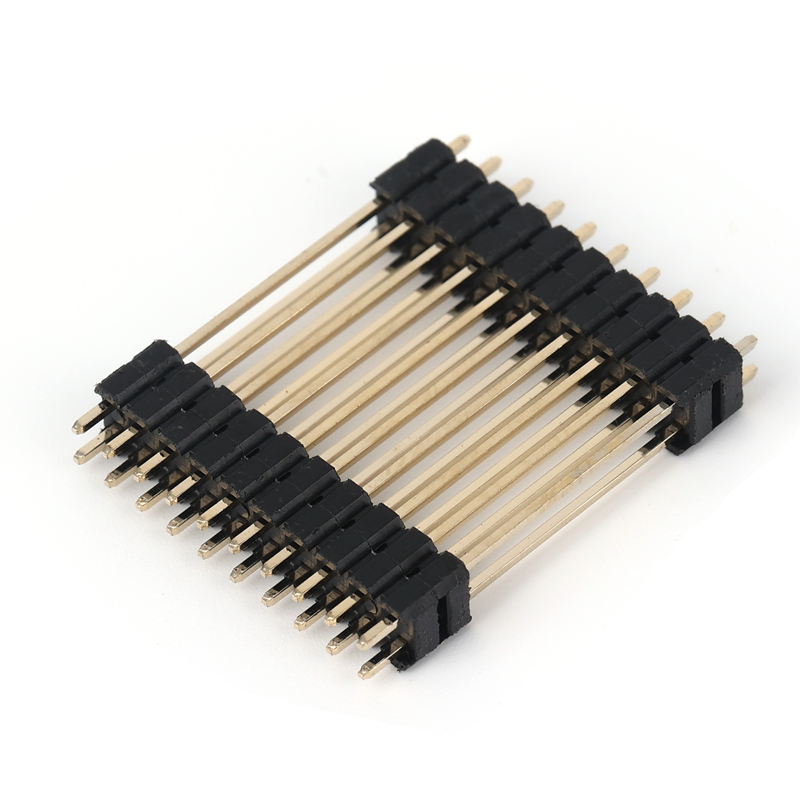

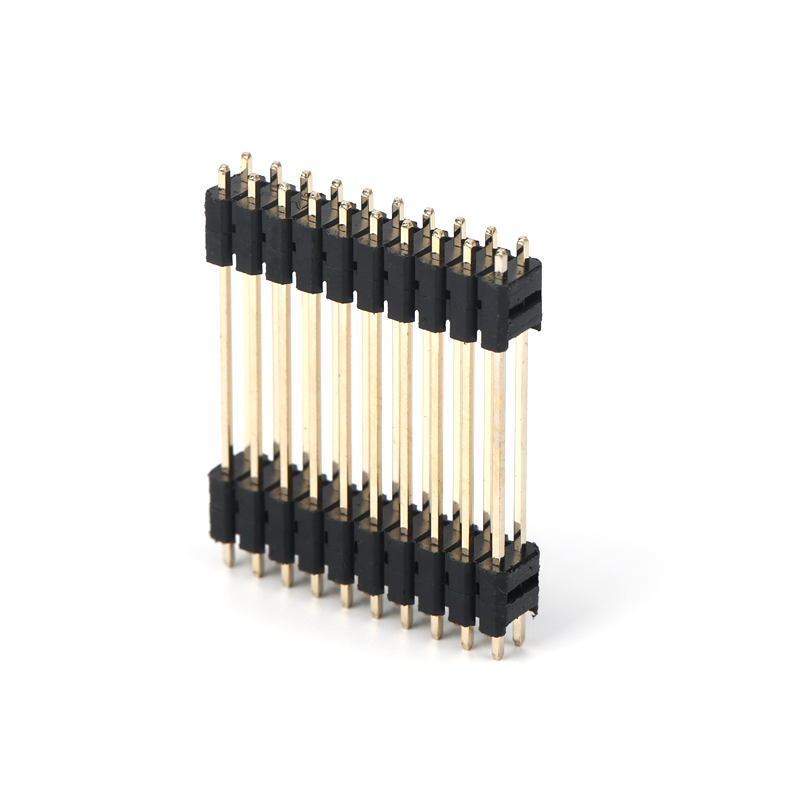

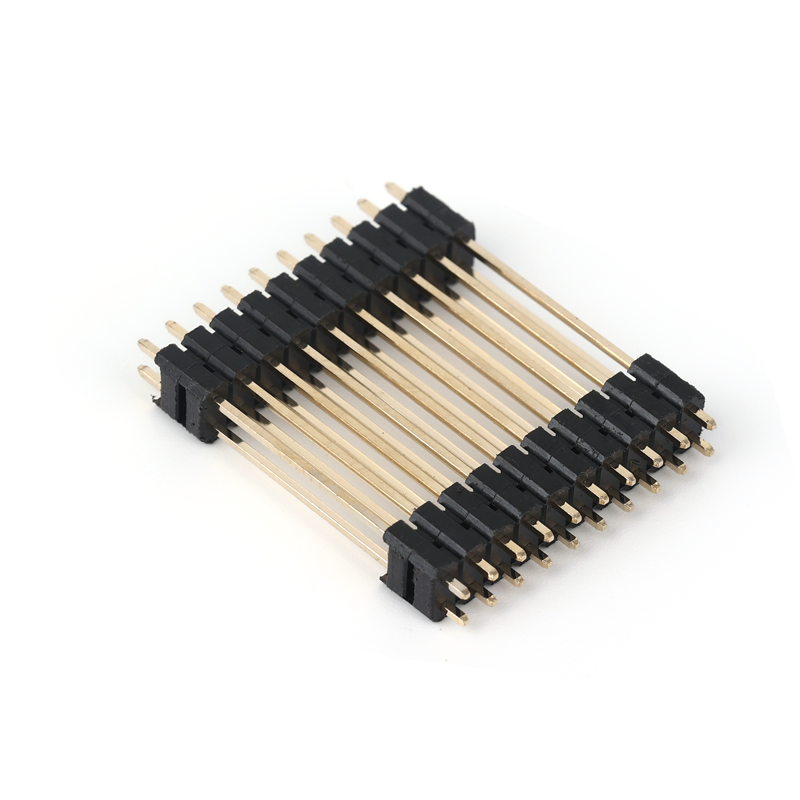

2.54mm double row four plastic 180 degrees

The 2.54mm double row four plastic 180 degrees launched by dgyzconn are precision components for achieving high insulation double row connections in electronic devices. Its 2.54mm standard spacing, double row design, four plastic (four layer insulation) structure, and 180 degree straight layout are suitable for PCB board wiring that requires enhanced signal isolation. It is widely used in medical equipment motherboards, high-voltage power control modules, and other scenarios. As a partner that precisely matches the 2.54 Mm Pin Header, it can synchronously transmit multiple signals, ensuring safe isolation between low and high voltage circuits. ​



The four plastic structure of this connector separates the terminals with four layers of insulation material, greatly reducing the risk of signal crosstalk. The 180 degree straight design keeps the connection direction level with the PCB board, making it easy to expand interfaces in the same direction. This design is compatible with the installation requirements of Pin Header 2.54 Mm and is suitable for use in devices with high insulation requirements. The internal terminals are made of gold-plated phosphor bronze material, with a contact resistance as low as 7m Ω and a plug-in life of over 6000 times. When combined with 2.54 Pin Header, they form a stable path to meet the transmission needs of precision electronic devices. ​



The shell is made of high temperature resistant LCP material, which can work stably in environments ranging from -40 ℃ to 125 ℃. Compared with the traditional 2.54 Mm Header Connector, its four plastic structure has better insulation performance, and the 180 degree layout improves the regularity of co directional wiring, especially suitable for medical or high-voltage equipment. Whether it is signal isolation transmission for medical instruments or multi-channel connection for power modules, this four plastic 180 degree connector is preferred for its excellent insulation and stability.
