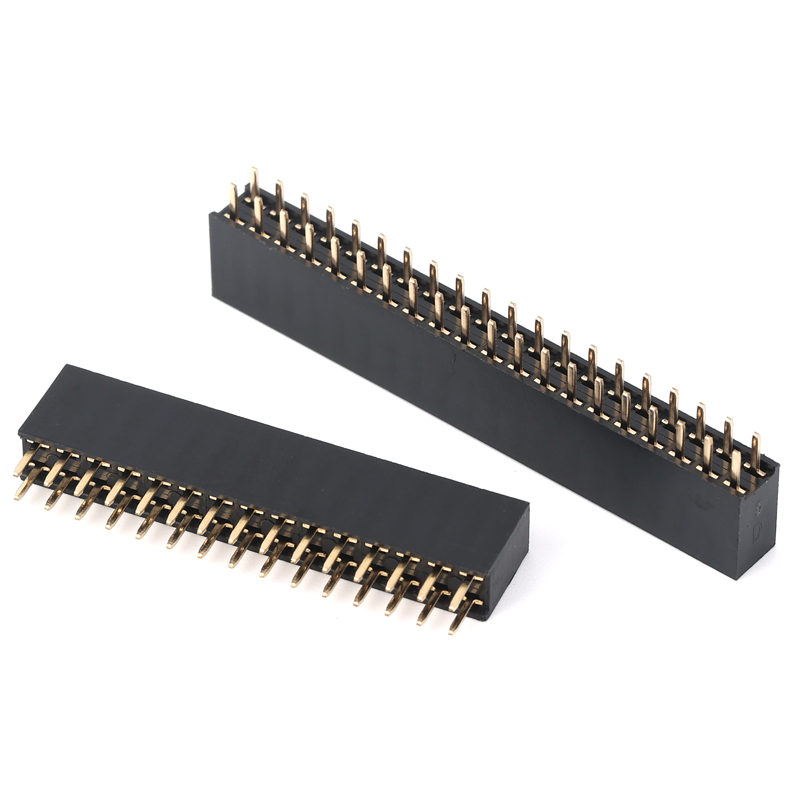

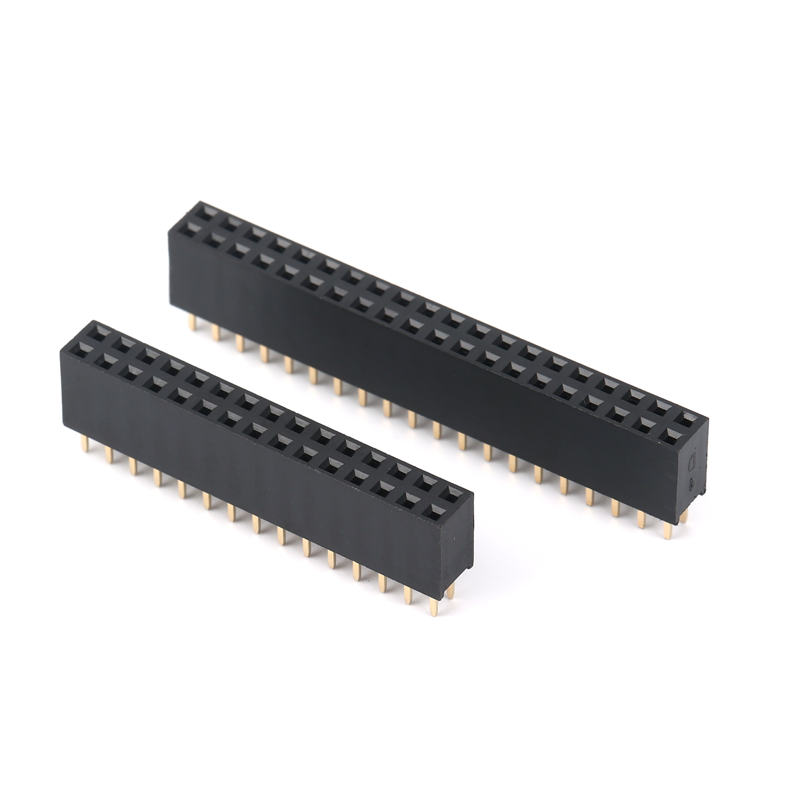

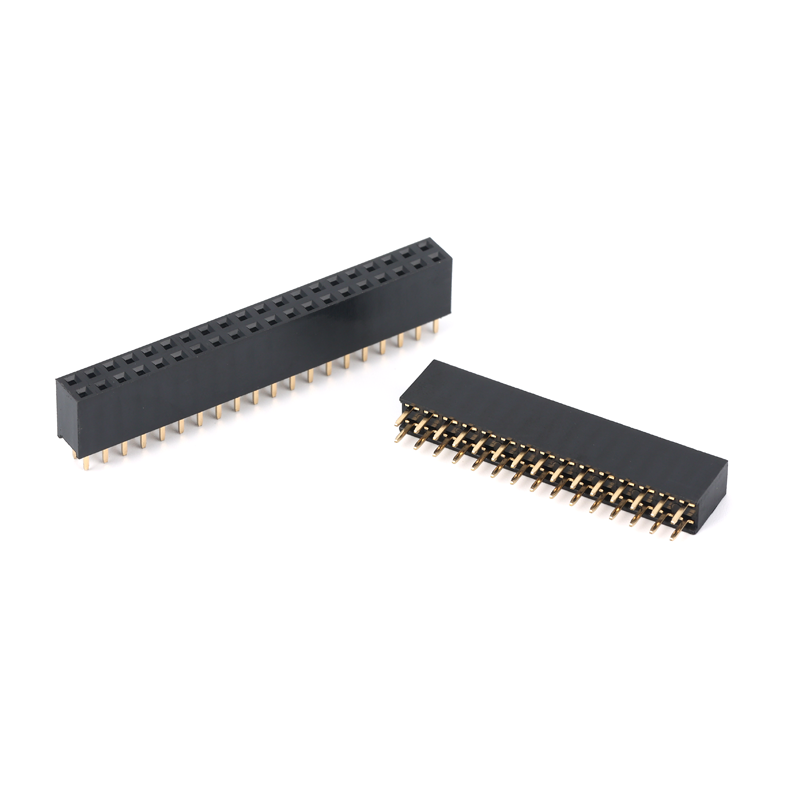

2.54mm Double row H8.5 180 degrees

The 2.54mm Double row H8.5 180 degrees by dgyzconn is a high-quality component for dual-row linear connections. With 2.54mm pitch, double-row design, 180-degree straight structure and 8.5mm height, it fits PCBs needing same-direction wiring with specific height requirements, used in data center server motherboards and large testing instrument interfaces. As a quality 2.54 Mm Pitch Female Header, it precisely mates with male headers for stable multi-signal transmission.​



Its 180-degree design keeps connection horizontal with PCBs, facilitating same-direction expansion. 8.5mm height reserves space for upper components, aiding complex wiring and heat dissipation, matching 2.54 Mm Female Header needs for equipment with many components. Double rows transmit multiple signals. Gold-plated phosphor bronze terminals (9mΩ resistance, 5,000+ cycles) perfectly match Header Female 2.54 standards, outperforming ordinary connectors.​



High-temperature PA66 shell works at -40℃~105℃. Compared to traditional Solderless Headers, its soldered design ensures firmer connection, with 180-degree structure excelling in same-direction transmission, ideal for devices needing massive same-direction signals. It’s preferred for data center servers and large instruments due to stable performance and precise adaptability.
