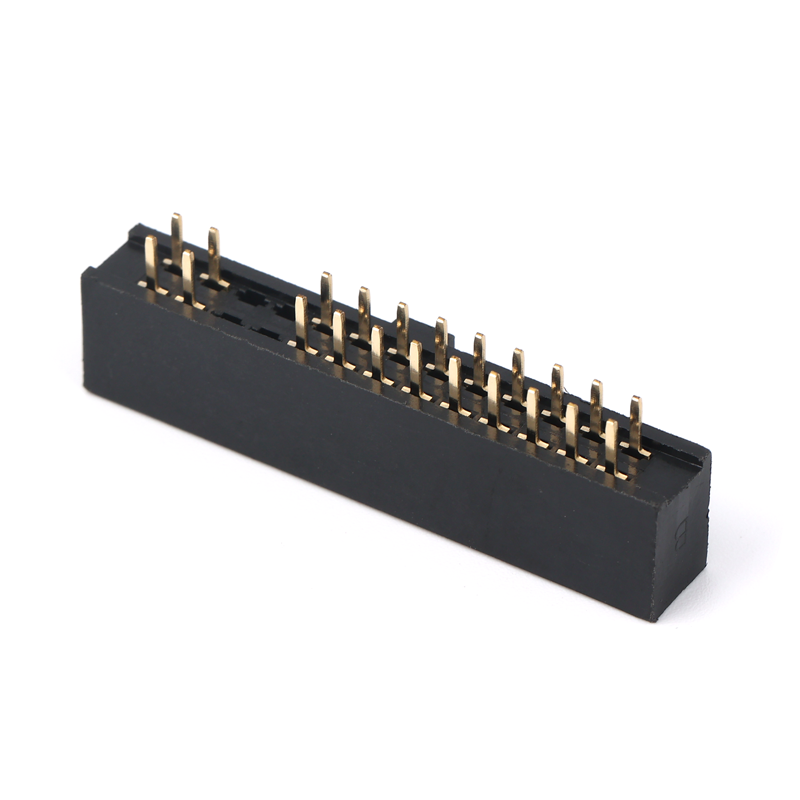

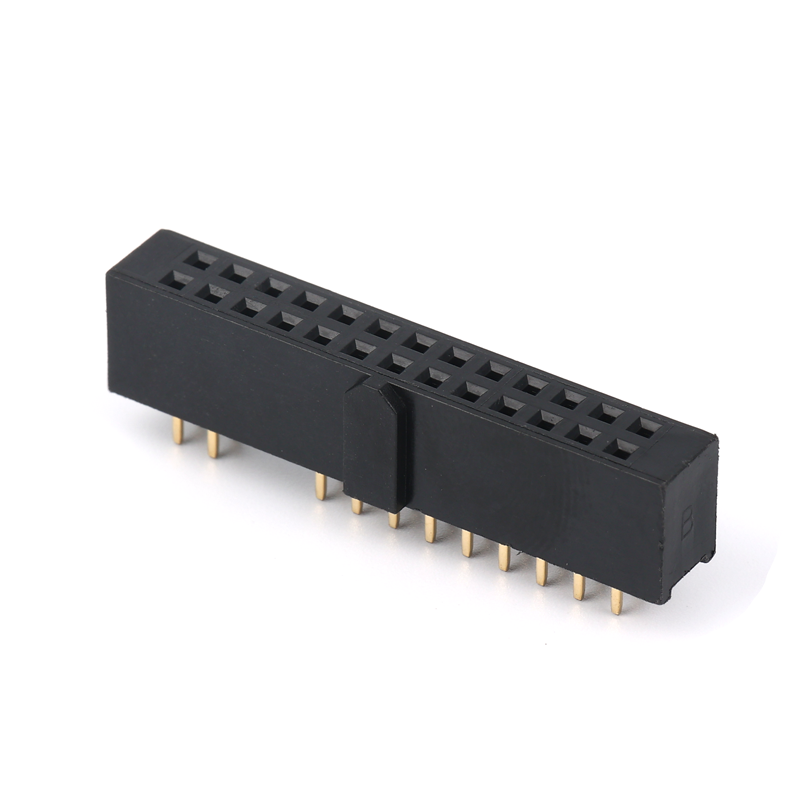

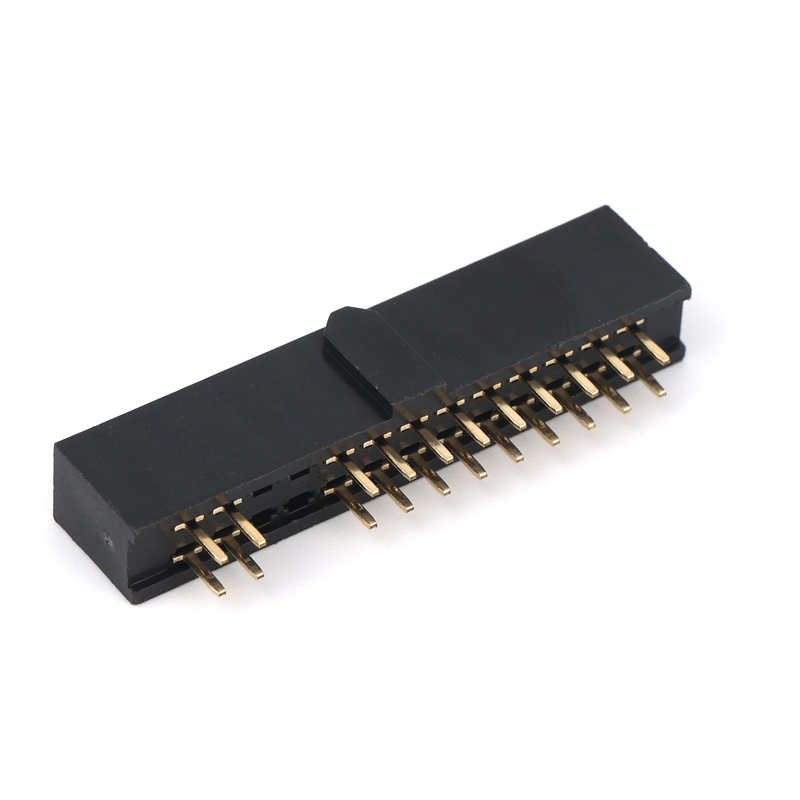

Model No.: 060345
The file is encrypted. Please fill in the following information to continue accessing it
| Attributes | Details |
| Application | Mainly for internal device connections; suitable for electronics, industrial computers, communication systems, after-sales parts, etc. |
| Soldering Type | SMT / Straight / Right-angle / J-type / U-type |
| Plastic Rows | Single-row, Double-row |
| Rated Current | 3A/pin |
| Operating Temperature | -40°C to +105°C |
| Terminal Material | C2680; C5191 |
| Insulator Material | LCP (UL94V-0), Black |
| Processing Temperature Range | 230°C to +260°C |
| Contact Resistance | Maximum 20mΩ |
| Contact Plating | Gold Flash; Nickel layer on base plate ≥50u" |
| Pin Count | 6 - 80 PIN |
| Certifications | IATF16949, ISO9001, ISO14000 |
| RoHS Compliance | Yes |
| Materials | PBT, PA46, PA6T, PA9T, LCP |
| Packaging Details | Standard packaging: plastic tray + carton; customizable according to requirements |
| Service Types | ODM and OEM services available; color can be customized flexibly |
