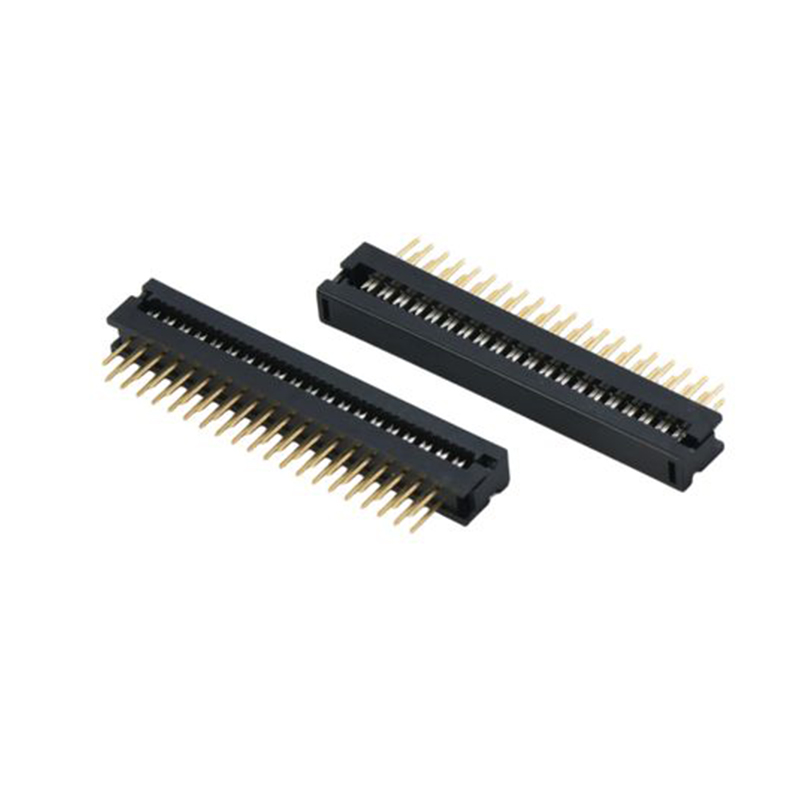

2.54mm pitch FD two-piece IDC connector

The 2.54mm pitch FD two-piece IDC connector is a precision-engineered interconnection solution designed for reliable data and power transmission in modern electronic systems. Built for efficiency and stability, this two-piece FD IDC connector 2.54mm model integrates advanced insulation displacement technology, allowing conductors to be terminated directly without the need for soldering or stripping. The 2.54mm pitch design ensures accurate alignment and compact spacing, which is essential for applications where high-density wiring and space optimization are required. It provides strong mechanical retention, consistent electrical contact, and long-term resistance against vibration or oxidation, making it a trusted choice for control systems, communication modules, and electronic instrumentation.

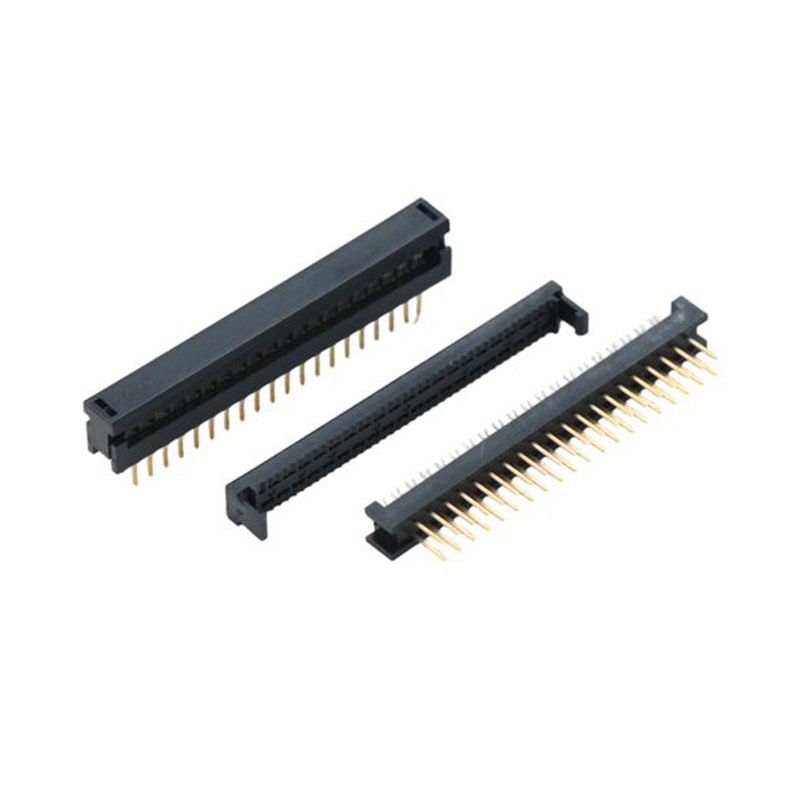

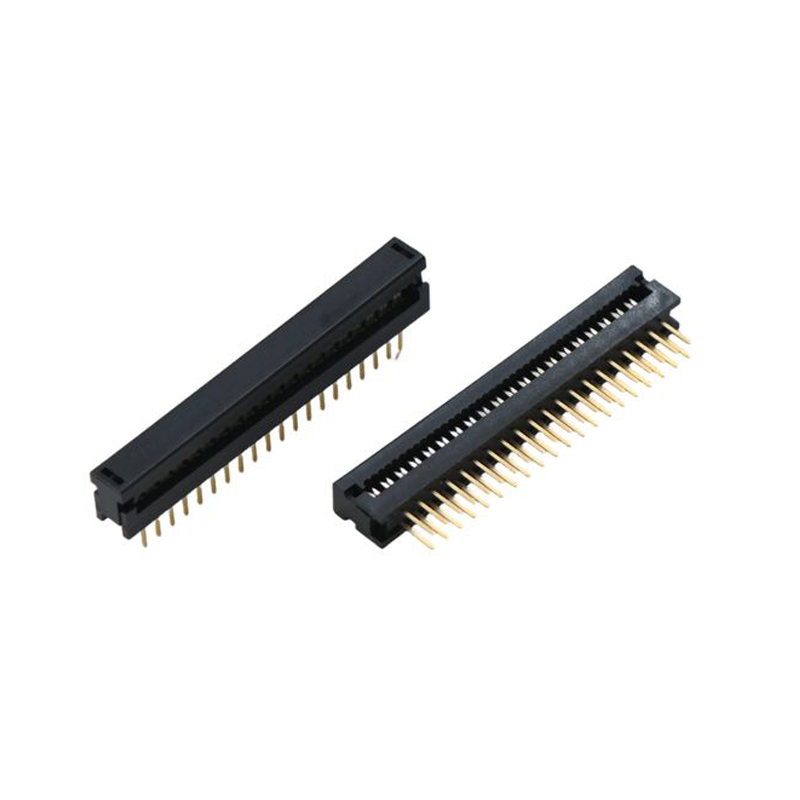

This connector adopts a durable two-piece construction that simplifies both assembly and maintenance. The top housing securely holds the Flat Cable in place, while the Idc Header Connector establishes a stable interface between the cable and printed circuit board (PCB). The dual-piece configuration allows quick disassembly for repair or reconfiguration, reducing downtime and improving manufacturing efficiency. Combined with precision-molded plastic insulation and corrosion-resistant contacts, this 2.54mm IDC connector FD two-piece model ensures a reliable connection even under challenging operating conditions such as high humidity, elevated temperatures, or mechanical stress.



The Insulation Displacement Connector structure used in this product eliminates inconsistencies often seen in traditional crimp or solder joints, ensuring uniform signal integrity throughout the wiring process. It can be paired seamlessly with a compatible IDC Socket Connector or idc cable connector to form a complete interconnect assembly suitable for multi-conductor flat cables. This combination enhances flexibility in design and supports multiple pin configurations for power, control, and communication functions. The connector’s precise pitch alignment of 2.54mm minimizes signal interference and contact resistance, which helps maintain stable performance across extended operational lifespans.



Engineered with precision and practicality in mind, the fd two-piece IDC connector 2.54mm supports efficient installation, high signal transmission quality, and excellent adaptability across diverse applications. It is widely utilized in computing equipment, automation control devices, measurement instruments, and other electronic assemblies that demand compactness and dependability. The connector’s high mating cycle durability and consistent contact pressure make it ideal for OEM and industrial use. When integrated into a complete IDC system that includes 1.27 mm idc connector variants, it offers engineers a flexible, standardized connection ecosystem that meets international quality and performance requirements.
