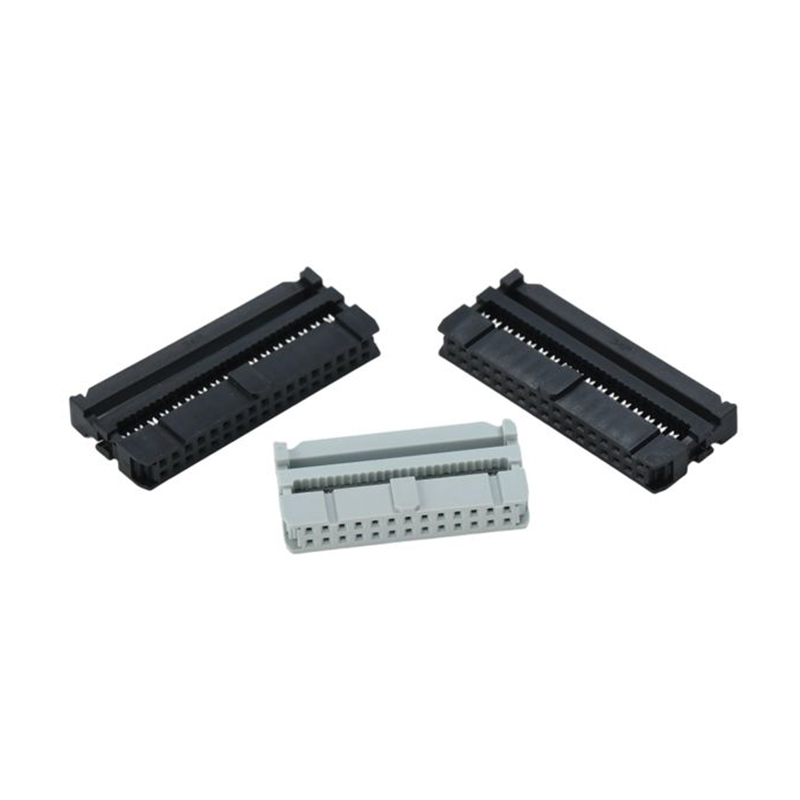

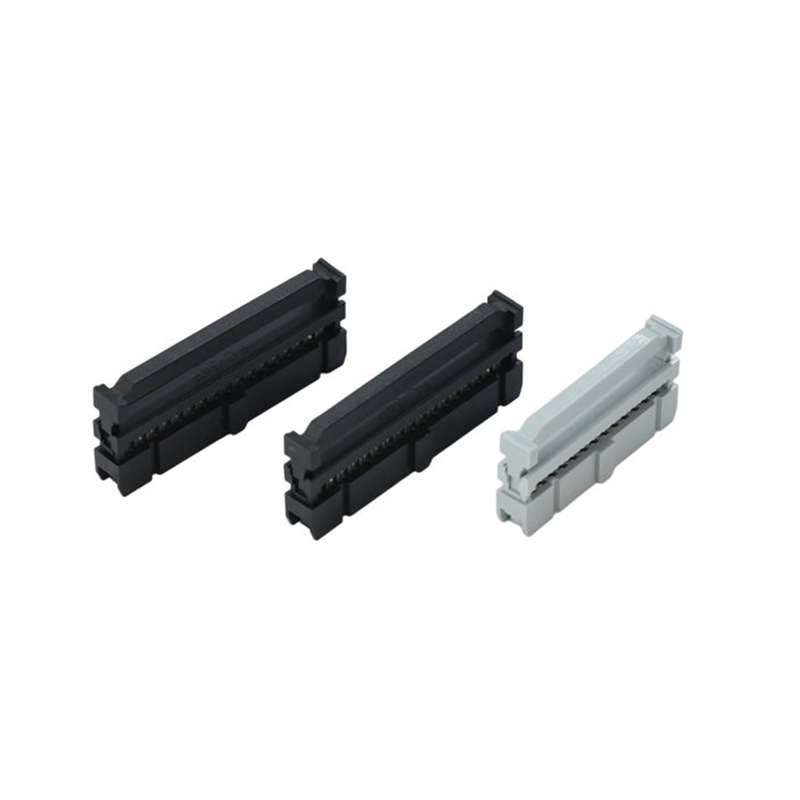

2.54mm pitch three-piece IDC connector

The 2.54mm pitch three-piece IDC connector is a precision-engineered interconnection solution designed for reliable data and signal transmission in modern electronic and industrial systems. Featuring a standard 2.54mm pitch, it ensures precise alignment between terminals, making it ideal for PCB mounting, ribbon cable connections, and modular wiring systems. The three piece idc connector 2.54mm is widely used in industrial control, telecommunications, and automation equipment due to its robust structure and easy assembly. By adopting the insulation displacement method, this connector enables quick, solder-free installation, significantly improving wiring efficiency and ensuring consistent electrical performance in every connection.

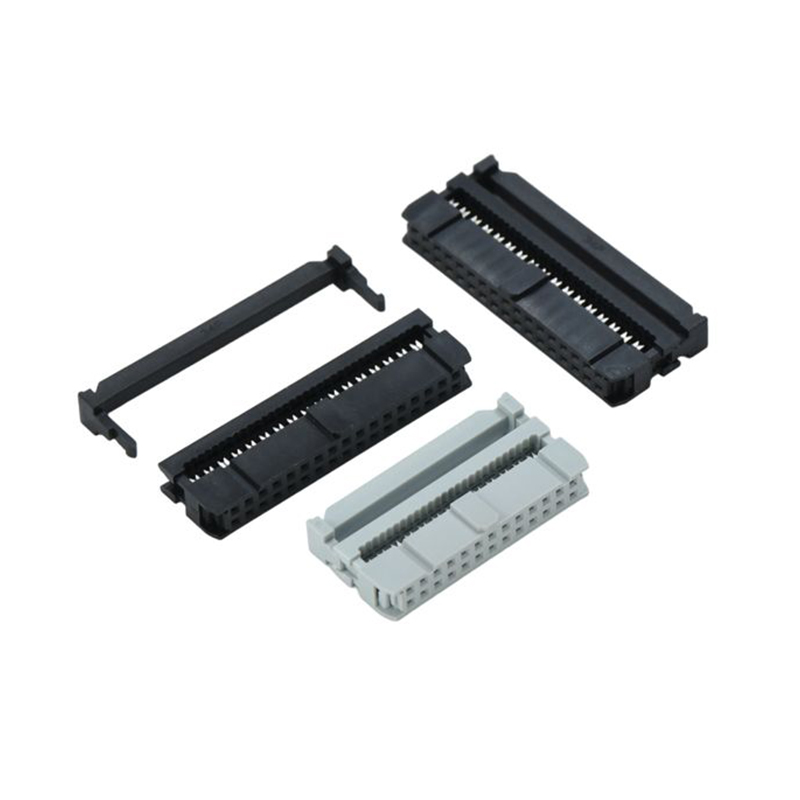

Built for high reliability, the 2.54mm three piece idc connector combines durable housing materials with precision contact design to maintain secure and stable connections even under vibration or thermal stress. The three-piece construction provides greater flexibility for cable positioning and replacement, making it particularly suitable for maintenance-heavy environments. Its contacts are plated for corrosion resistance and long-term conductivity, ensuring stable signal transmission across a wide temperature range. When paired with compatible components such as an Idc Header Connector or IDC Socket Connector, it creates a complete interconnect solution suitable for compact circuit layouts and space-constrained designs.



As a high-performance Insulation Displacement Connector, this model ensures uniform contact pressure between conductor and terminal, minimizing signal loss and interference. It supports a variety of multi-core flat cables, allowing for customized pin configurations from 6 to 64 positions. This design not only reduces installation time but also enhances mechanical stability in complex electrical systems. Engineers working on automation or electronic instrumentation projects can easily integrate it with existing idc cable connector solutions or smaller-pitch options like the 1.27 mm idc connector, enabling compatibility across multiple systems without sacrificing connection quality or reliability.



The idc connector 2.54mm three piece is a trusted choice for manufacturers seeking a durable, cost-effective, and easy-to-use wiring interface. It is ideal for use in control panels, data communication units, and electronic testing instruments that demand precision and consistency. Each connector is manufactured under strict quality control to guarantee dimensional accuracy and stable electrical performance. With its superior design, quick termination method, and excellent signal integrity, this IDC solution delivers an efficient and long-lasting interconnection option for global OEM and industrial users seeking reliable connectivity in compact and high-performance environments.
