1.27mm SMT patch with or without pillars
Min. Order:1
Model No:060358
Discover dgyzconn's precision-engineered 1.27 Mm Pin Header solution for next-gen SMT applications. Our surface-mount patch headers feature a compact 1.27 Mm Pitch Header design with optional stabilizing pillars, delivering unmatched reliability in...
-
1.27mm single row 90 degree needle
Min. Order:1
Model No:060354
Introducing our premium 1.27 Mm Pin Header, designed for high-density electronic applications. This single-row, 90-degree angled component features a precise 1.27mm pitch, ensuring reliable connectivity in compact devices. Ideal for PCB and wearable...
-

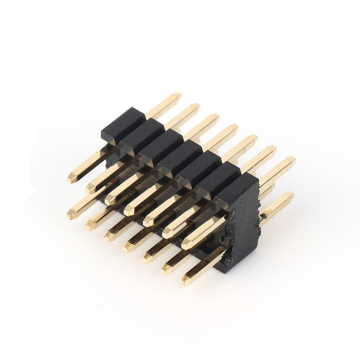

180 Degree 1.27mm Dual Row Pin Header
Min. Order:1
Model No:051409
The 1.27mm Dual Row Straight Pin Header is a high-density board-to-board solution, specifically designed for applications that require reliable vertical connections within compact electronic devices. With a small pitch of just 1.27 mm, this pin...
-

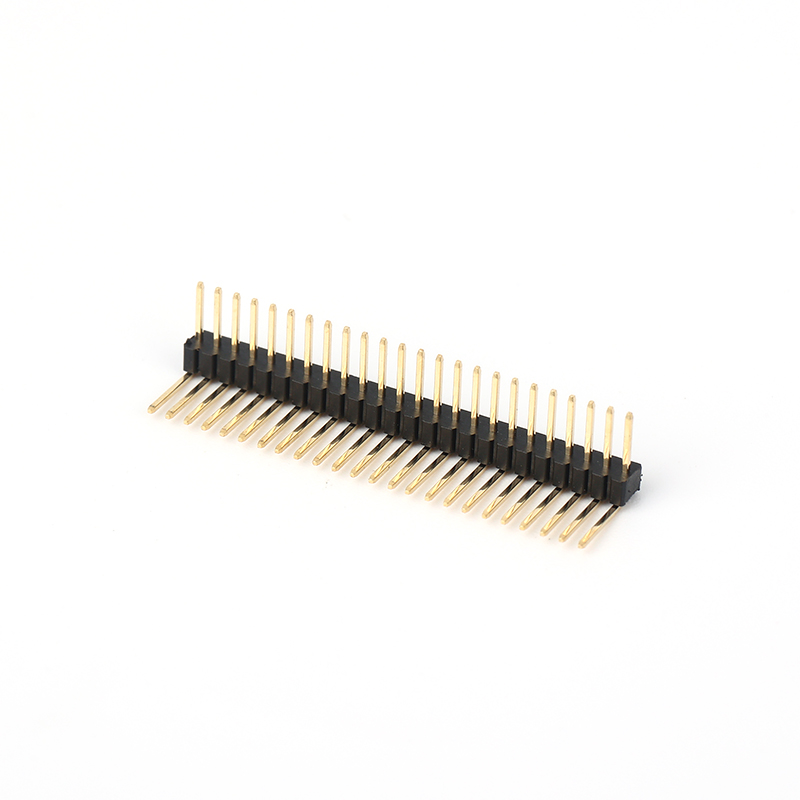

1.27mm Single Row Pin Header Right Angle
Min. Order:1
Model No:051406
The 1.27 mm Pitch Single Row Right Angle Pin Header is an ideal solution for compact electronic devices requiring reliable board-to-board connections in a horizontal layout. Designed by DGYZCONN with precision engineering, this Pin Header Connector...
-
1.27mm Pitch Dual Row SMT Pin Header
Min. Order:1
Model No:051410
This 1.27mm Dual Row SMT Pin Header, available with or without alignment posts, is tailored for surface-mount applications requiring compact and automated assembly. The double-row design maximizes connectivity without increasing width, making it...
-
1.27mm Dual Row Plastic SMT Pin Header
Min. Order:1
Model No:051411
The 1.27mm Dual Row Dual Plastic SMT Pin Header is engineered to deliver superior alignment and mechanical strength in automated surface-mount applications. With double plastic housing at both top and bottom, it offers enhanced rigidity and supports...
-
1.27mmX2.54mm double row 180 degree
Min. Order:1
Model No:060360
dgyzconn’s 1.27mmX2.54mm double row 180 degree pin header is an innovative solution customized for cross-pitch electronic connection scenarios. As a cross-border model of 1.27mm Pitch Pin Header and 2.54mm Pitch Female Header, its unique...
-
1.27mm Double Row Double Plastic SMT Patch
Min. Order:1
Model No:060359
dgyzconn’s meticulously crafted 1.27mm Double Row Double Plastic SMT Patch is a high-performance connection solution designed for high-integration electronic devices. As an innovative model in the 1.27mm Pitch Pin Header series, its standard 1.27mm...
-
1.27mm pin connector double row 180 degrees
Min. Order:1
Model No:060357
dgyzconn’s 1.27mm pin connector double row 180 degrees is a stable connection solution designed for high-integration electronic devices. As a flagship model in the 1.27mm Pitch Pin Header series, its standard 1.27mm pitch double-row straight pin...
-

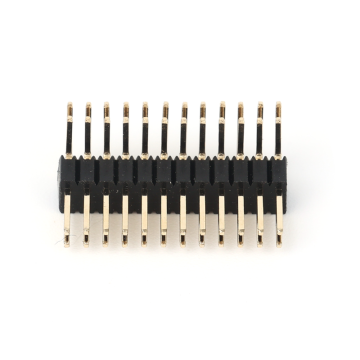

1.27mm pin connector double row 90 degree
Min. Order:1
Model No:060356
dgyzconn’s innovatively developed 1.27mm pin connector double row 90 degree is a high-quality solution for high-density interconnection in compact electronic devices. As a star product in the 1.27mm Pitch Pin Header series, its standard 1.27mm pitch...
-
1.27mm single row 180 degree needle connector
Min. Order:1
Model No:060355
dgyzconn’s meticulously crafted 1.27mm single row 180 degree needle connector is an excellent product that meets the high-precision and high-density connection requirements of electronic devices. As a core model in the 1.27mm Pitch Pin Header...
-
Custom Dual Row Pin Header Straight
Min. Order:1
Model No:051412
The 1.27mm x 2.54mm Dual Row Pin Header combines the high-density signal capacity of 1.27 mm pitch with the structural compatibility of 2.54 mm rows. This unique configuration is perfect for hybrid PCB layouts where spacing and mechanical...
-

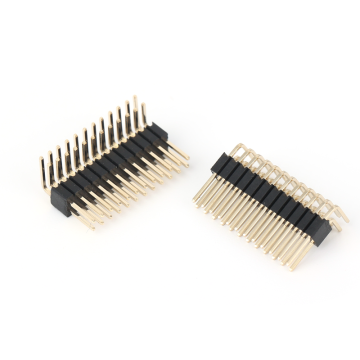

1.27mm Dual Row Pin Header Right Angle
Min. Order:1
Model No:0511408
The 1.27mm Pitch Dual Row Right Angle Pin Header is a high-density interconnect solution perfect for horizontally aligned signal paths in limited-space PCB assemblies. This dual row pin header offers double the connection capacity without expanding...
-

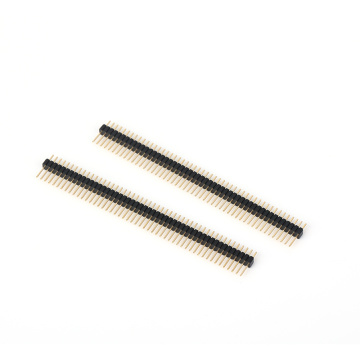

Straight 1.27mm Pitch Single Row Pin Header
Min. Order:1
Model No:051407
The 1.27 mm Pitch Single Row Straight Pin Header is a compact and efficient Pin Header Connector designed for vertically oriented signal transmission in high-density electronic systems. With a pitch of just 1.27mm, it enables tight component...
Pin Header 1.27mm PitchThe Pin Header 1.27mm Pitch by dgyzconn is a versatile and reliable electrical connection component, widely recognized as a standard in the electronics industry. Its 1.27mm pitch offers an ideal combination of robust connectivity and moderate density, making it suitable for a broad spectrum of applications from consumer electronics to industrial equipment. Crafted with high-precision stamping and advanced plating techniques, the pin header ensures excellent electrical conductivity, long-term durability, and superior corrosion resistance.
Product PhilosophyPlease listen to usAt dgyzconn, the Pin Header 1.27mm Pitch embodies our commitment to "Standardization, Reliability, and Innovation". We adhere to industry standards while constantly innovating in materials and processes to ensure each pin header offers consistent, reliable performance. By focusing on quality and customer needs, we aim to provide connection solutions that not only meet but exceed expectations, becoming the preferred choice for professionals across various industries seeking stable and durable electrical connections.Original ConceptProduct FeaturesHigh-quality alloy materialPins are made of high-purity brass, with a matte tin or gold plating surface treatment, ensuring both excellent electrical conductivity and oxidation resistance.High-strength structureThe plastic base is made of UL94V-0 flame-retardant material, able to withstand soldering temperatures of 260℃, with excellent mechanical impact resistance.Long insertion and extraction lifespanOptimized pin contact structure allows for over 1000 insertion and extraction cycles, maintaining stable electrical connections.Flexible row optionsSupports single-row, double-row, and multi-row customization to meet diverse circuit design requirements.
FAQ
How to choose between 1.27mm and 2.54mm pitch pin headers?The 1.27mm pitch is suitable for medium-density circuits, balancing space and stability; the 2.54mm pitch is ideal for low-density, high-current, or manual soldering scenarios. For compact designs, choose 1.27mm; for stronger connections and ease of use, select 2.54mm.What should I do if the pin header has poor electrical contact after soldering?Check for cold soldering or solder bridging with a magnifying glass; clean the oxide layer on pins and pads, and re-solder with soldering flux; ensure the soldering temperature (recommended 250-270℃) and time (3-5 seconds) are appropriate.Can 1.27mm pitch pin headers be used in high-temperature environments?Yes. The pin headers from dgyzconn can withstand soldering temperatures of 260℃ and operate within -40℃ to 125℃. For long-term high-temperature use, choose high-temperature resistant plastics and enhance heat dissipation.How to prevent pins from bending during insertion?Insert the pin header vertically after ensuring perfect alignment with the socket; use specialized insertion/extraction tools; for slightly bent pins, correct them carefully with tweezers, and replace severely bent ones.
