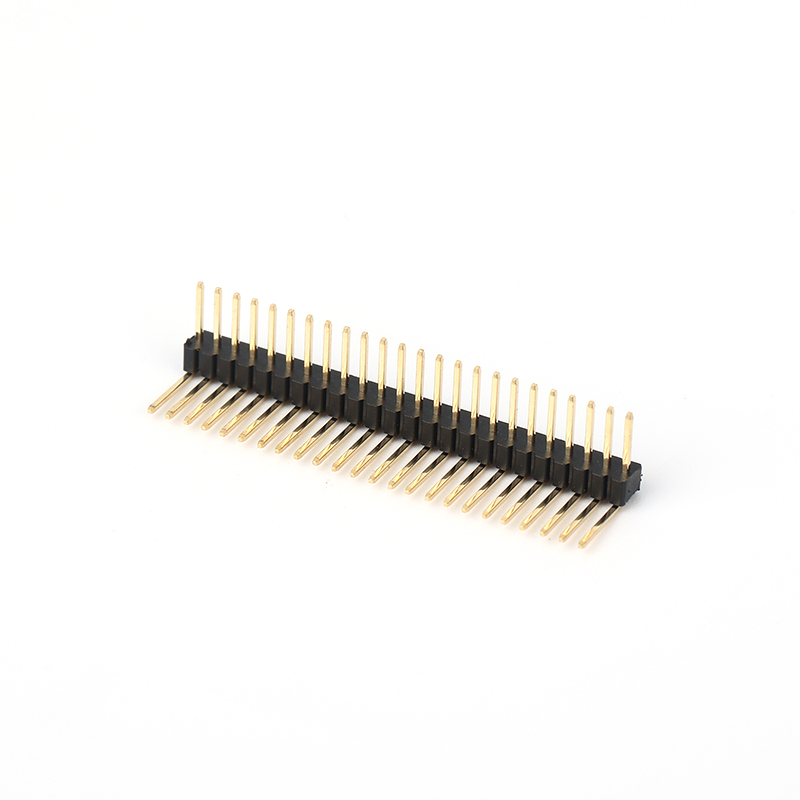

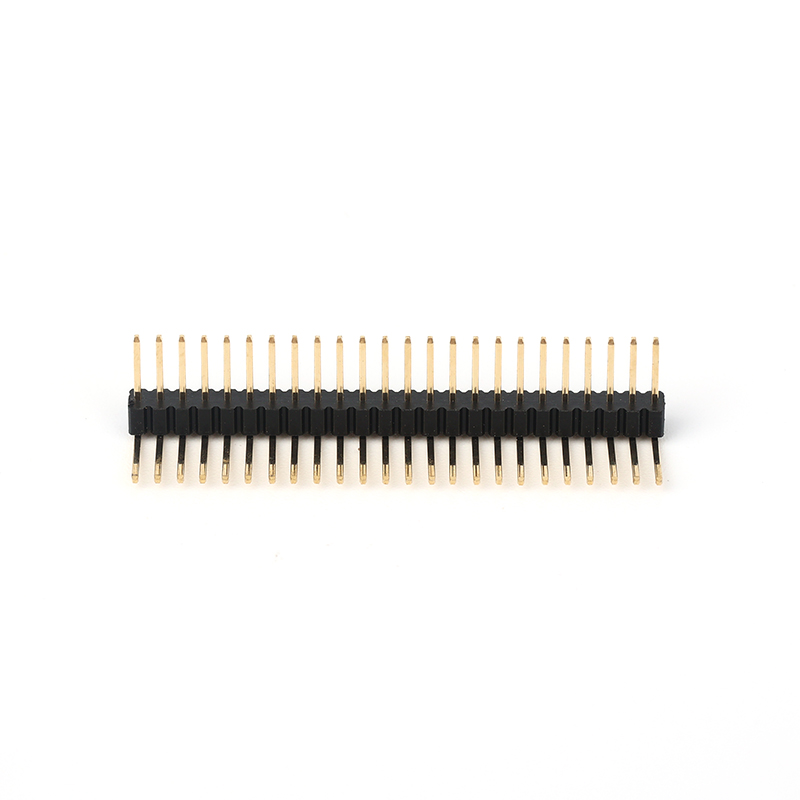

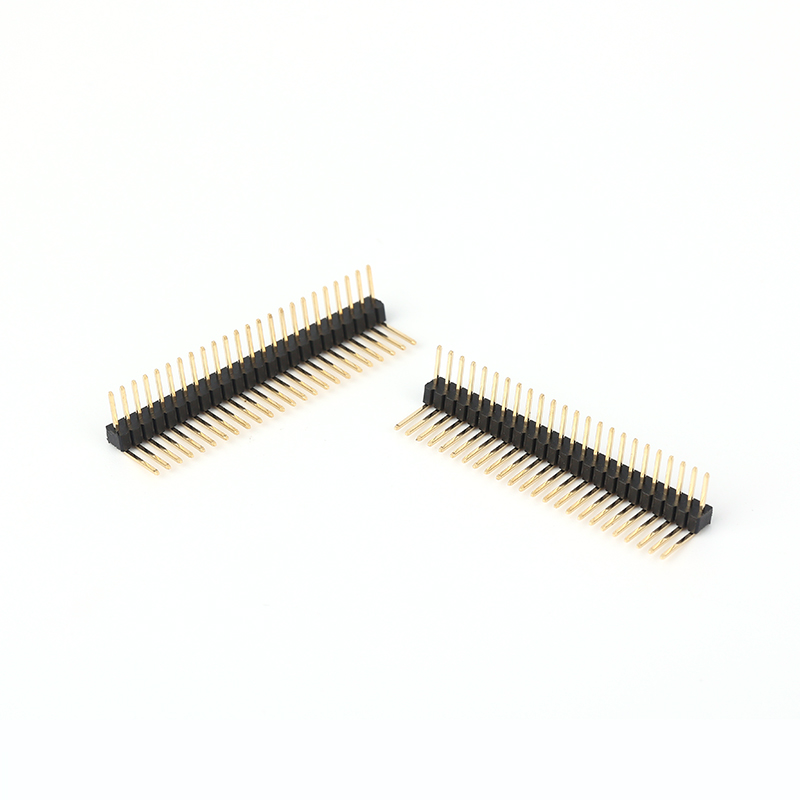

Model No.: 060354
The file is encrypted. Please fill in the following information to continue accessing it
| Item | Description |
| Application | Primarily used for internal device connections, not for external connectivity. |
| Suitable for electronic products, industrial computers, communication systems, aftermarket components, etc. | |
| Soldering Type | SMT / Straight / Right Angle / J Type / U Type |
| Number of Plastic Rows | Single row, Dual row |
| Rated Current | 1A per pin |
| Operating Temperature | -40°C to +105°C |
| Terminal Material | C2680; C5191 |
| Insulator Material | LCP (UL94V-0), Black |
| Processing Temperature Range | 230°C to +260°C |
| Contact Resistance | Max 20mΩ |
| Contact Plating | Gold Flash plating |
| Nickel underlayer: ≥50μ" | |
| Number of Contacts | 6–100 PINs |
| Certifications | IATF16949, ISO9001, ISO14000 |
| RoHS Compliance | Yes |
| Materials | PA46, PA6T, PA9T, LCP |
| Packaging Details | Standard packaging in plastic trays + cartons, customizable upon request |
| Service Type | ODM and OEM services available, color customization supported |
