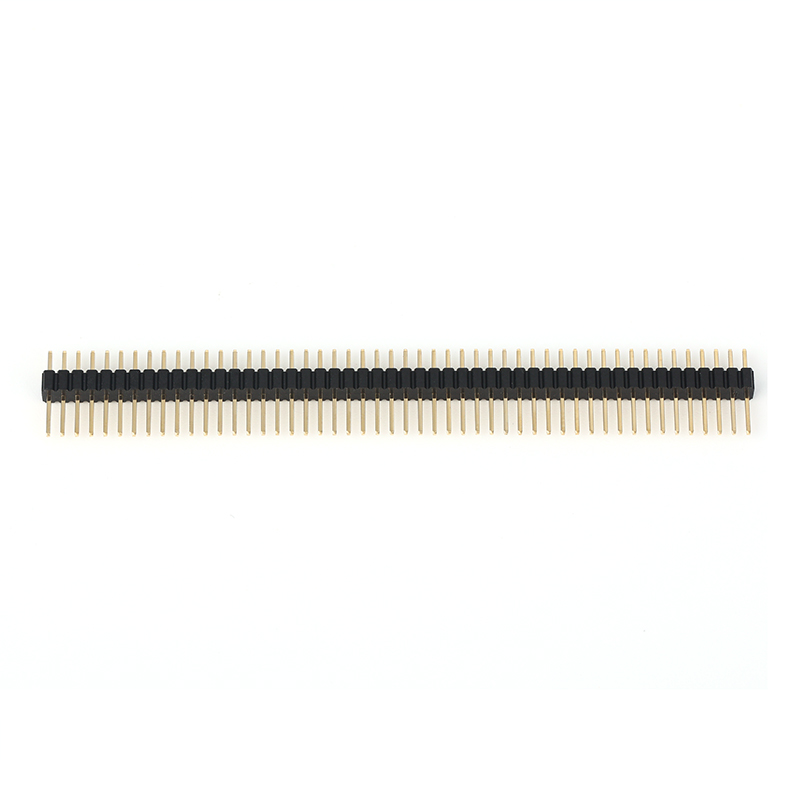

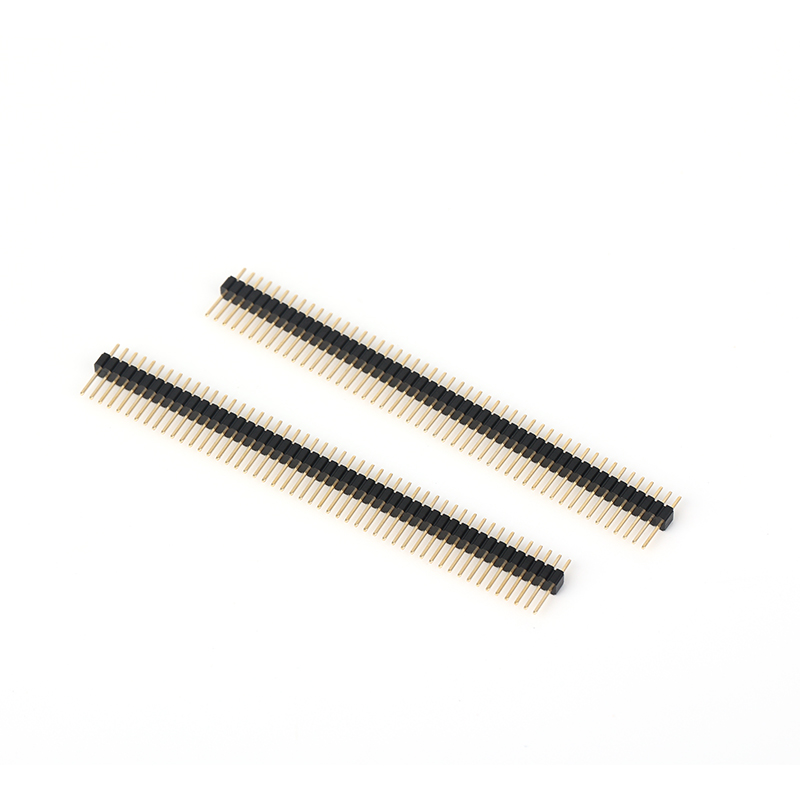

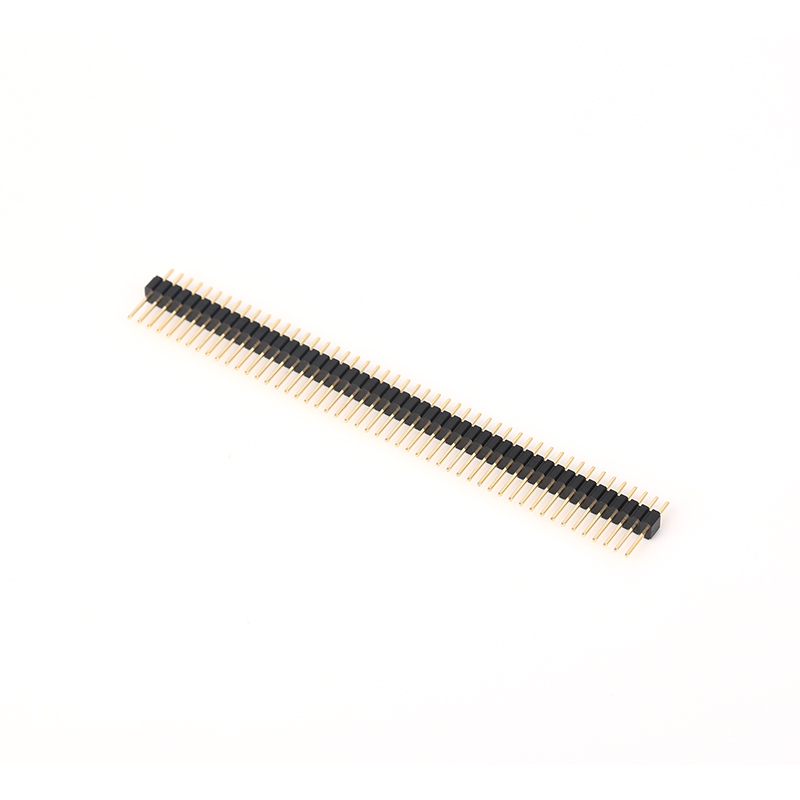

1.27mm single row 180 degree needle connector

dgyzconn’s meticulously crafted 1.27mm single row 180 degree needle connector is an excellent product that meets the high-precision and high-density connection requirements of electronic devices. As a core model in the 1.27mm Pitch Pin Header series, its single-row 180-degree straight pin structure with a standard 1.27mm pitch precisely adapts to the complex wiring scenarios of PCB boards, standing out in the Pin Header Single Row 1.27mm pitch category for stable electrical performance and reliable mechanical strength.



This Pin Header Connector features high-quality copper alloy pins with a diameter of 0.40.4 (**Pin diameter 0.40.4**), treated with anti-oxidation tin plating (1.27mm Tin-plated pin header), and is paired with high-temperature-resistant LCP materials (1.27mm pitch LCP material). It can stably carry current in environments ranging from -40°C to +105°C, with a contact resistance as low as 15mΩ. The 180-degree straight pin design (1.27mm pitch straight pin header) enables the connector to achieve a stable and precise connection with the corresponding Female Header, ensuring efficient and stable signal transmission. Using SMT surface mount technology (1.27mm SMT Pin Header), it has a plastic height of 2.0mm and a single-layer plastic structure (1.27mm pitch single layer plastic pin headers) to ensure good insulation and heat dissipation. In addition, the product is certified by IATF16949, ISO9001, etc., and is RoHS-compliant. It supports ODM and OEM customization services, and is widely used in smart terminals, communication base stations, etc., providing solid and reliable support for various electronic connection projects.

Item	Description
Application	Primarily used for internal device connections, not for external connectivity.
	Suitable for electronic products, industrial computers, communication systems, aftermarket components, etc.
Soldering Type	SMT / Straight / Right Angle / J Type / U Type
Number of Plastic Rows	Single row, Dual row
Rated Current	1A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash plating
	Nickel underlayer: ≥50μ"
Number of Contacts	6–100 PINs
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PA46, PA6T, PA9T, LCP
Packaging Details	Standard packaging in plastic trays + cartons, customizable upon request
Service Type	ODM and OEM services available, color customization supported
