1.27mm Dual Row Pin Header Right Angle

Get Latest Price

Min. Order:

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: 0511408

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

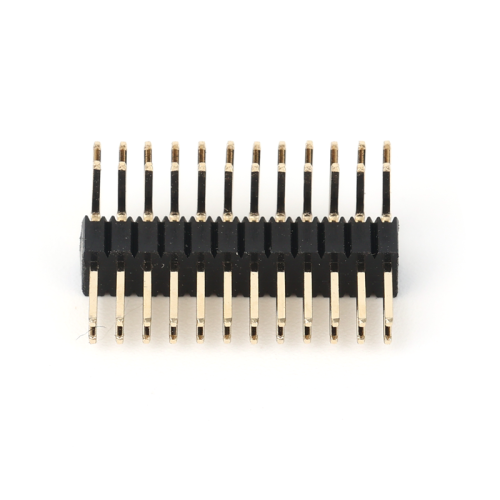

The 1.27mm Pitch Dual Row Right Angle Pin Header is a high-density interconnect solution perfect for horizontally aligned signal paths in limited-space PCB assemblies. This Dual Row Pin Header offers double the connection capacity without expanding the PCB footprint, making it ideal for miniaturized electronic systems.

Engineered for internal device use, this 1.27 Mm Pitch Header is widely implemented in telecom devices, embedded modules, and control boards. The 90° configuration allows for easy side-entry connections, reducing vertical height constraints while maintaining excellent signal integrity.

Its dual-row layout offers better mechanical support and improved current distribution, suitable for data and control lines in mission-critical systems. The connector uses C2680 or C5191 alloy pins with gold flash plating over a nickel base, providing durability and contact reliability even under high-cycle conditions.

With soldering options including SMT, through-hole, J and U types, and support for high-temp soldering at up to 260°C, it offers unparalleled flexibility. The insulating material—LCP, PA6T, PA9T, PA46—ensures heat resistance and flame retardance.

Fully compliant with RoHS, ISO9001, and IATF16949, this Pin Header Connector is a dependable solution for space-sensitive, high-density PCB designs. Whether you're integrating it into a computing system or control unit, this Pin Connector provides efficient layout and high electrical performance.

Item	Description
Application	Primarily used for internal device connections, not for external connectivity. Suitable for electronic products, industrial computers, communication systems, aftermarket components, etc.
Soldering Type	SMT / Straight / Right Angle / J Type / U Type
Number of Plastic Rows	Single row, Dual row
Rated Current	1A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash plating Nickel underlayer: ≥50μ"
Number of Contacts	6–100 PINs
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PA46, PA6T, PA9T, LCP
Packaging Details	Standard packaging in plastic trays + cartons, customizable upon request
Service Type	ODM and OEM services available, color customization supported
