Product Description

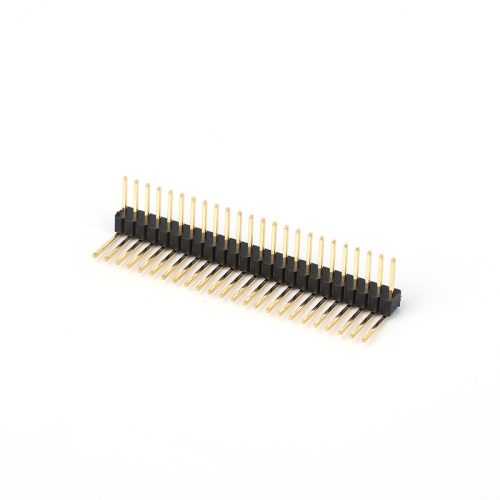

The 1.27 mm Pitch Single Row Right Angle Pin Header is an ideal solution for compact electronic devices requiring reliable board-to-board connections in a horizontal layout. Designed by DGYZCONN with precision engineering, this Pin Header Connector is well-suited for use in tight PCB layouts, especially where vertical space is limited.

This Pin Header 1.27mm Pitch model features a right-angle (90°) orientation, allowing signals or power to be transmitted parallel to the board surface. This is particularly beneficial in embedded systems, communication control panels, and compact modules.

The product offers excellent mechanical strength and high reliability, built from C2680 or C5191 terminals and LCP insulating material that is UL94V-0 rated. The gold flash plating ensures optimal conductivity and long-term performance with contact resistance under 20mΩ. Designed for reflow compatibility, it supports soldering temperatures up to 260°C.

Supporting up to 100 pins per header, this 1.27 Pin Header allows high-density layout for signal transmission in limited PCB real estate. It is available with SMT, straight, right-angle, J-type, or U-type soldering configurations for maximum layout flexibility.

Compliant with RoHS, ISO9001, and IATF16949, this Pin Connector is an excellent choice for engineers developing next-gen electronic systems. The Pcb Board Connector can be customized in terms of pin number, plating thickness, and packaging format, making it a go-to component in OEM and ODM designs.

Item	Description
Application	Primarily used for internal device connections, not for external connectivity. Suitable for electronic products, industrial computers, communication systems, aftermarket components, etc.
Soldering Type	SMT / Straight / Right Angle / J Type / U Type
Number of Plastic Rows	Single row, Dual row
Rated Current	1A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash plating Nickel underlayer: ≥50μ"
Number of Contacts	6–100 PINs
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PA46, PA6T, PA9T, LCP
Packaging Details	Standard packaging in plastic trays + cartons, customizable upon request
Service Type	ODM and OEM services available, color customization supported
