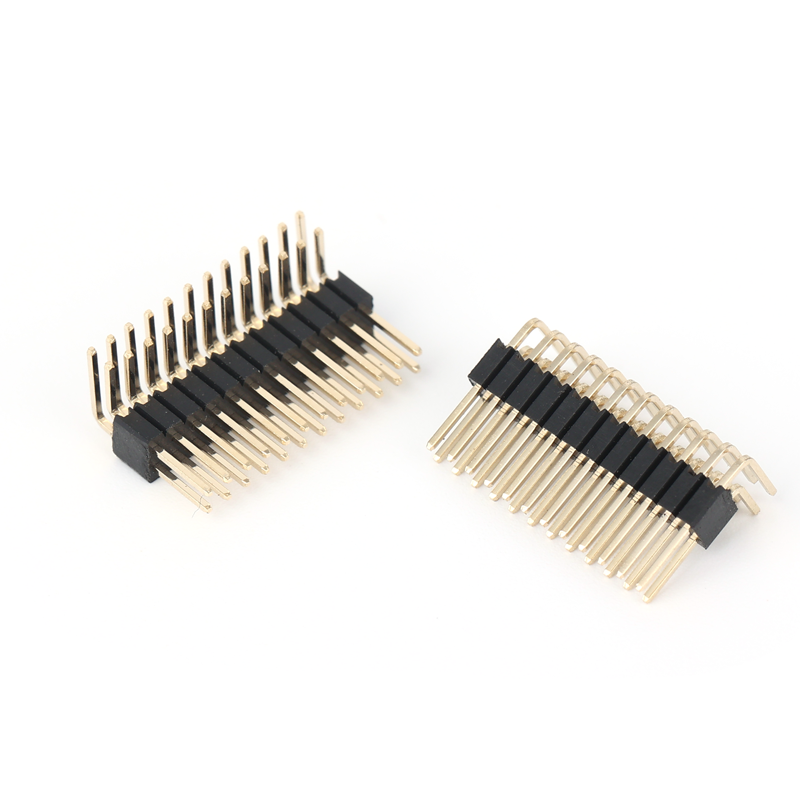

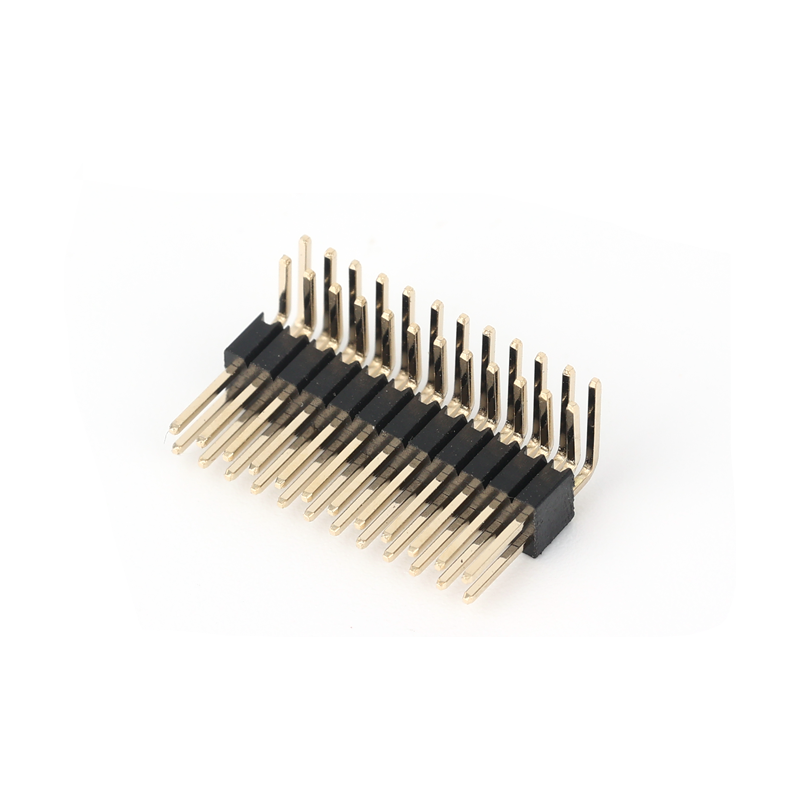

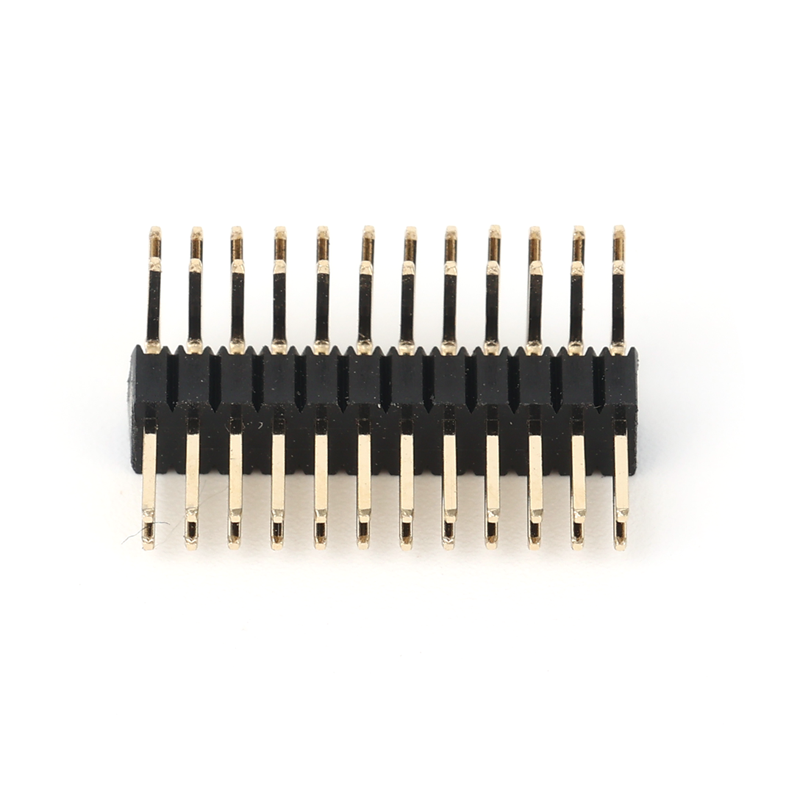

1.27mm pin connector double row 90 degree

dgyzconn’s innovatively developed 1.27mm Pin Connector double row 90 degree is a high-quality solution for high-density interconnection in compact electronic devices. As a star product in the 1.27mm Pitch Pin Header series, its standard 1.27mm pitch double-row right-angle structure precisely meets the three-dimensional wiring needs of PCB boards, standing out in the Pin Header Double Row 1.27mm pitch category for excellent space optimization capabilities and stable performance.



Featuring high-purity copper alloy pins with a diameter of 0.40.4 (**Pin diameter 0.40.4**) and anti-oxidation tin plating (1.27mm Tin-plated pin header), paired with high-temperature-resistant LCP materials (1.27mm pitch LCP material), this connector operates stably in -40°C to +105°C environments with a contact resistance as low as 18mΩ. The 90-degree right-angle design (1.27mm pitch ,Right Angle pin header) effectively avoids interference with board components, saving over 50% horizontal space, while reliable soldering is achieved through SMT technology (1.27mm SMT Pin Header). The double-row layout supports parallel transmission of up to 25PIN signals, with a 1.7mm plastic height and single-layer plastic structure (1.27mm pitch single layer plastic pin headers) ensuring a balance of insulation and heat dissipation. Certified by IATF16949, ISO9001, and RoHS-compliant, anti-static carrier tape packaging supports customization. Widely used in medical equipment, smart wearables, etc., it provides efficient support for precise electronic connections.

Item	Description
Application	Primarily used for internal device connections, not for external connectivity.
	Suitable for electronic products, industrial computers, communication systems, aftermarket components, etc.
Soldering Type	SMT / Straight / Right Angle / J Type / U Type
Number of Plastic Rows	Single row, Dual row
Rated Current	1A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash plating
	Nickel underlayer: ≥50μ"
Number of Contacts	6–100 PINs
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PA46, PA6T, PA9T, LCP
Packaging Details	Standard packaging in plastic trays + cartons, customizable upon request
Service Type	ODM and OEM services available, color customization supported
