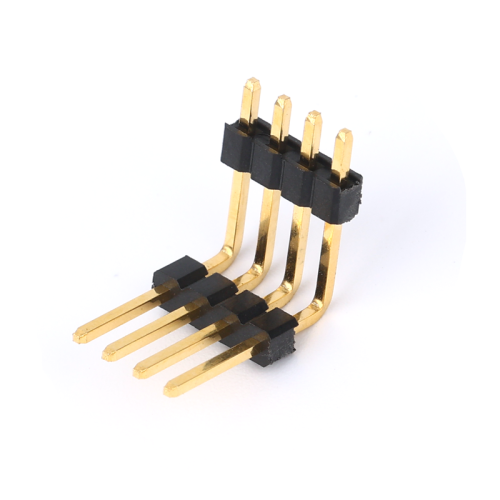

2.00mm Pitch Right Angle Plastic Pin Header

The 2.00mm Single Row Dual Plastic Right Angle Pin Header is a compact and reliable Pin Connector solution, ideal for board-to-board and board-to-cable connections in tight spaces. Designed with dual plastic support, it ensures enhanced mechanical stability and precise alignment during soldering and mating.



With a 2.00mm pitch, this Pin Header 2.00mm Pitch version saves PCB space while delivering reliable signal integrity. It's a perfect fit for embedded devices, industrial computers, and telecommunications hardware where size and reliability are critical.



This 2Mm Pin Header features gold-flash plating for optimal conductivity and longevity. It supports multiple soldering methods including SMT, THT, and right-angle configurations. If you're seeking a rugged yet compact Pcb Board Connector, this model offers excellent durability and performance.



Customization and Service Capabilities of dgyzconn:



dgyzconn offers comprehensive customization services for this product, including adjustable pin lengths, insulator heights, and plating options to meet specific application requirements. With advanced manufacturing facilities and a dedicated R&D team, dgyzconn ensures high-quality production and rapid prototyping. Their OEM and ODM services are tailored to provide clients with flexible solutions, ensuring compatibility with various design specifications



Item	Description
Application	Primarily used for internal device connections; not suitable for external connectivity. Applicable for electronics, industrial computers, telecom systems, aftermarket components.
Soldering Type	SMT / Straight / Right Angle / J Type / U Type
Plastic Row Options	Single Row, Dual Row
Rated Current	2A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash plating Nickel underlayer ≥50μ"
Number of Contacts	6–80 PINs
Certifications	ISO9001, ISO14000
RoHS Compliance	Yes
Material Options	PBT, PA46, PA6T, PA9T, LCP
Packaging	Standard: plastic tray + carton; customizable upon request
Service	ODM and OEM support; color customization available
