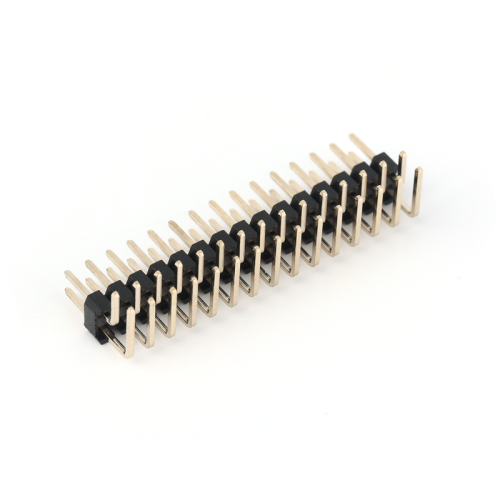

2 Pitch Dual Row Pin Header Right Angle

The 2.00mm Dual Row 90° Pin Header offers a balanced solution between high signal capacity and space efficiency. It’s widely used in communication modules, embedded systems, and control devices.



This Double Sided Pin Header ensures more connection points per unit area, suitable for applications where vertical space is limited but horizontal space can be utilized. The Pin Header 2.00mm Pitch format enables compatibility with modern compact PCB layouts.



Engineered with gold-flash contacts and a nickel underlayer, this 2 Pin Header Connector guarantees reliable mating cycles and consistent performance under vibration or heat. The design is compatible with both automated SMT processing and traditional wave soldering.



Customization and Service Capabilities of dgyzconn:



dgyzconn specializes in customizing dual-row pin headers to match specific design requirements. Services include adjustable pin lengths, varied insulator materials, and specialized plating options. Their advanced manufacturing processes and stringent quality control measures ensure that each product meets high-performance standards. dgyzconn's dedication to customer satisfaction is evident in their responsive support and ability to deliver customized solutions promptly.



Item	Description
Application	Primarily used for internal device connections; not suitable for external connectivity.
	Applicable for electronics, industrial computers, telecom systems, aftermarket components.
Soldering Type	SMT / Straight / Right Angle / J Type / U Type
Plastic Row Options	Single Row, Dual Row
Rated Current	2A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash plating
	Nickel underlayer ≥50μ"
Number of Contacts	6–80 PINs
Certifications	ISO9001, ISO14000
RoHS Compliance	Yes
Material Options	PBT, PA46, PA6T, PA9T, LCP
Packaging	Standard: plastic tray + carton; customizable upon request
Service	ODM and OEM support; color customization available
