Product Description

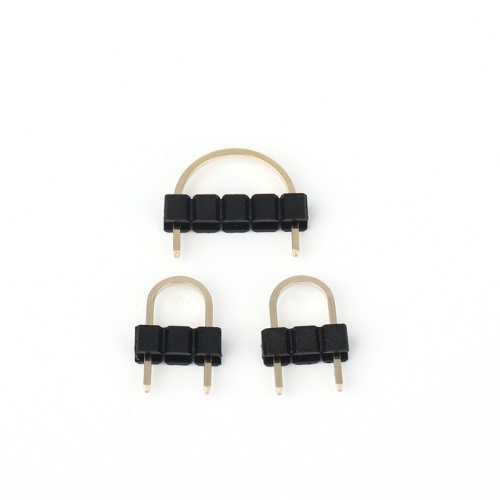

2.54mm Pitch Single Row U-Type Pin Header – Reliable Board-To-Board Connector for Versatile Applications

Introducing our 2.54mm Pitch Single Row U-Type Pin Header, a premium quality Pcb Board Connector designed to deliver reliable and efficient electrical connections within a variety of electronic systems. At DGYZCONN, we specialize in high-performance Pin Header connectors tailored to meet demanding standards in consumer electronics, industrial computing, communication systems, and after-sales parts.

Engineered with precision, our 2.54mm Pin Header offers a robust and customizable solution for seamless board-to-board connector integration. With multiple options for pin counts, plating, and orientations, this 2.54 Mm Header Connector ensures versatility for your PCB layout and assembly needs.

Item	Description
Application	Primarily used for internal device connections, not for external interfaces. Suitable for electronic products, industrial computers, communication systems, and aftermarket parts.
Soldering Type	SMT / Straight / Right Angle / J-Type / U-Type
Plastic Rows	Single Row, Dual Row
Rated Current	3A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temp. Range	230°C to 260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash
Base Nickel Layer	≥50μ"
Number of Contacts	6–80 PIN
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging Details	Standard packaging: plastic tray + carton; customizable upon request
Service Type	ODM and OEM services available; color customization supported

Key Features

Precision Design: The 2.54mm pitch ensures accurate alignment between mating PCBs and components.

U-Type Configuration: Optimized for special routing or mechanical needs, particularly where vertical space is limited.

Wide Compatibility: Functions as a dependable Pin Header 2.54mm Pitch solution across diverse industries.

Flexible Mounting Options: SMT, straight, right-angle, and U-type terminations support various PCB layouts.

High Reliability: Gold and tin-plated options over nickel base ensure excellent conductivity and corrosion resistance.

Temperature Resilience: Performs well under processing temperatures up to 260°C and operating temperatures from -40°C to +105°C.

As a specialized Pin Header manufacturer in China, DGYZCONN adheres to strict quality standards including IATF16949, ISO9001, and ISO14000. Our connectors are RoHS compliant, ensuring they meet global environmental and safety requirements. With a focus on customization, we offer OEM and ODM services, including color customization, packaging, and material options.

The Pin Header 2.54 Mm series is designed with high-performance materials such as LCP (UL94V-0) for insulation and C2680/C5191 copper alloy for terminal pins. The result is a product that delivers outstanding heat resistance, dimensional stability, and electrical performance.
