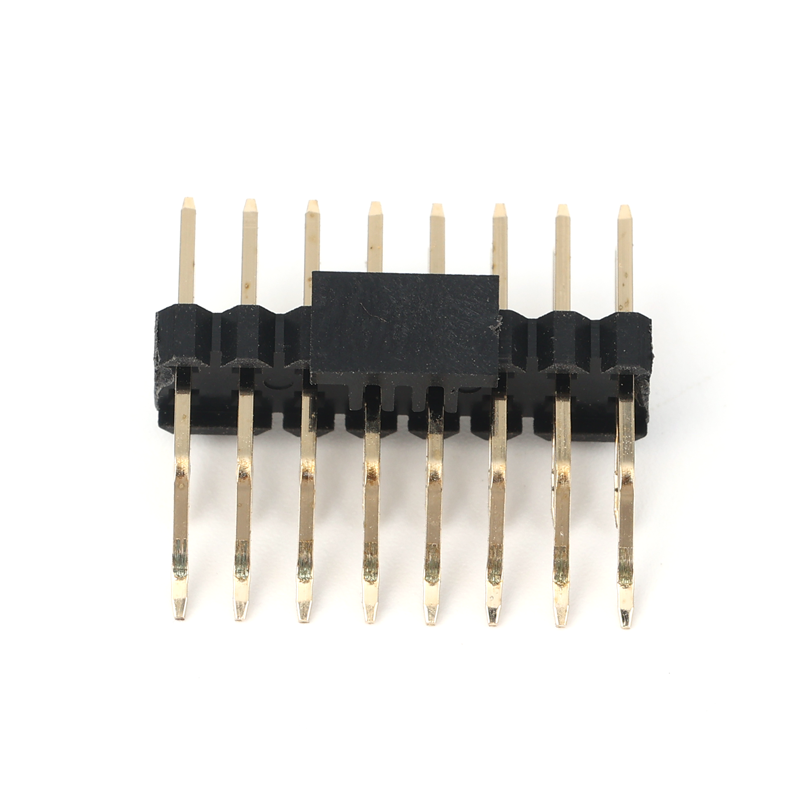

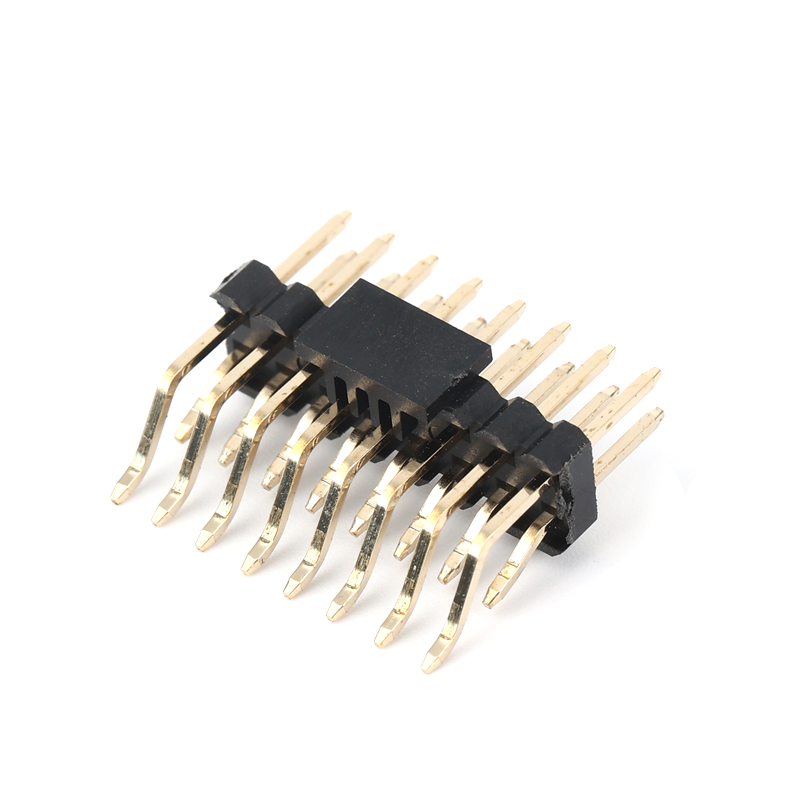

Model No.: 051514
The file is encrypted. Please fill in the following information to continue accessing it
| Item | Description |
| Application | Primarily used for internal device connections |
| Suitable Industries | Electronics, Industrial PCs, Communication Systems, Aftermarket Components |
| Mounting Type | SMT / Straight / Right Angle / J-Type / U-Type |
| Rows of Plastic | Single Row / Double Row |
| Rated Current | 3A per pin |
| Operating Temperature | -40°C to +105°C |
| Terminal Material | C2680; C5191 |
| Insulator Material | LCP (UL94V-0), Black |
| Processing Temperature | 230°C to 260°C |
| Contact Resistance | Max 20mΩ |
| Contact Plating | Gold Flash / Tin Plating |
| Base Nickel Layer | ≥50μ" |
| Number of Contacts | 6–80 PINs |
| Certifications | IATF16949, ISO9001, ISO14000 |
| RoHS Compliance | Yes |
| Materials | PBT, PA46, PA6T, PA9T, LCP |
| Packaging | Standard: Plastic Tray + Carton (customizable on request) |
| Service Type | ODM & OEM services available; flexible color customization supported |
