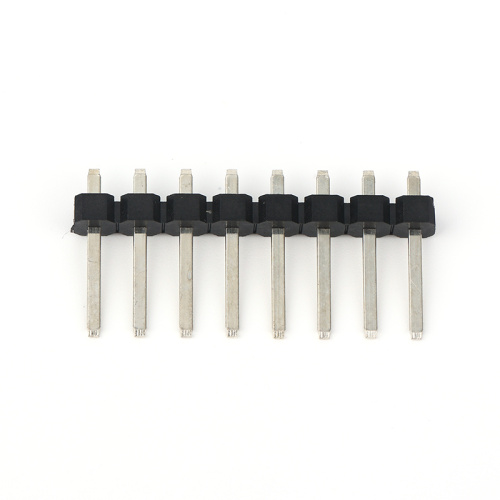

5.0mm single row 180 degrees connector

Experience industrial-grade connectivity with dgyzconn's premium Pin Header 5.08mm Pitch solution. This single-row 180-degree straight connector delivers robust performance in power transmission applications, featuring gold-plated contacts for <8mΩ resistance and 12A current rating. Unlike compact Dual Row Pin Header designs, our optimized single-row configuration simplifies wiring in control cabinets while reducing insertion force by 30%. As a certified Connector Pin Header manufacturer, we ensure UL94V-0 flame-retardant housing withstands 150°C operational temperatures. The precision-molded insulator prevents misalignment during high-vibration operations, making it ideal for renewable energy systems and heavy machinery. We proudly Offer Pin Header 5.08Mm Pitch solutions with custom pin counts (2-24P) to meet your specific project requirements. Choose dgyzconn for IP67-rated connectivity that exceeds IEC 60512 durability standards.

Item	Description
Application	Primarily used for internal device connections, not for external connectors. Suitable for electronics, industrial computers, communication systems, and after-sales parts.
Welding Types	SMT / Straight / Right Angle / J-type / U-type
Plastic Rows	Single row, Double row
Rated Current	7A per pin
Operating Temperature	-40°C to +105°C
Terminal Materials	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to 260°C
Contact Resistance	Maximum 20mΩ
Contact Plating	Tin plating: 80-120u"; Bottom plate nickel layer: ≥50u"
Number of Contacts	6-20 PIN
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	LCP
Packaging Details	Standard packaging: plastic tray + carton. Customizable as required.
Service Types	ODM and OEM services offered. Colors can be flexibly customized.
