ECU Controller Connector

(Total 13 Products)

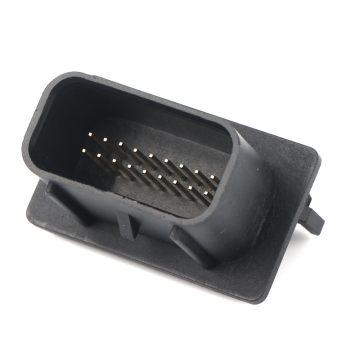

ECU Controller Connector
dgyzconn's ECU Controller Connector is specifically designed for automotive electronic control units (ECUs), serving as a core component to ensure the stable operation of vehicle power, safety, and control systems. The product integrates advanced signal transmission technology and precision manufacturing processes, boasting excellent electrical performance and mechanical stability. With high - purity copper alloy pins and high - temperature - resistant, corrosion - resistant shell materials, it can operate stably in extreme temperature environments ranging from - 40℃ to 125℃.

Product Display

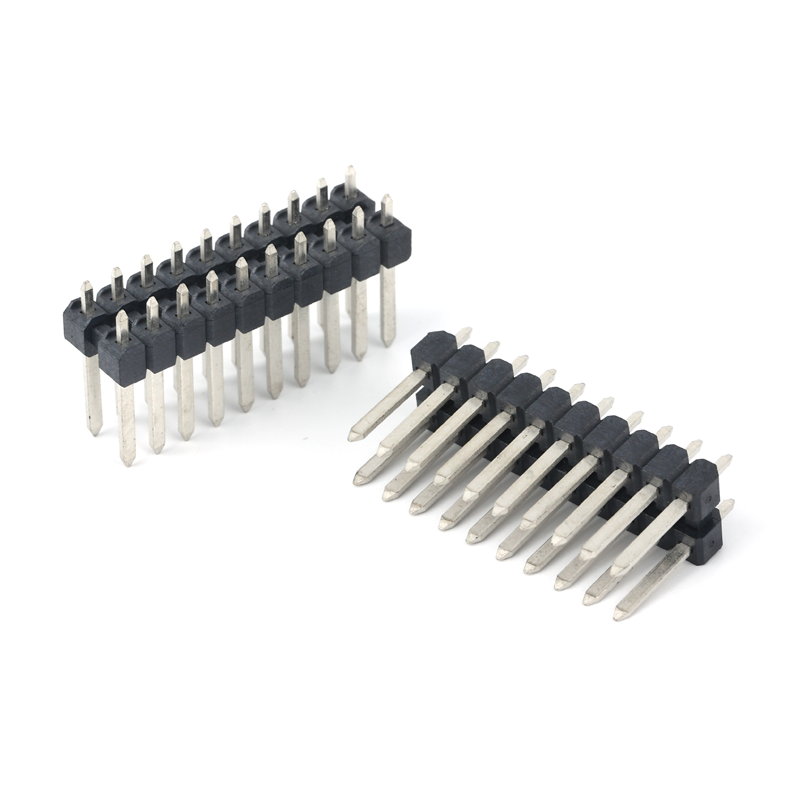

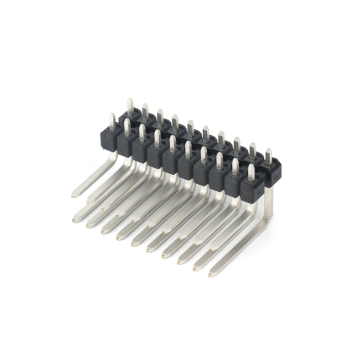

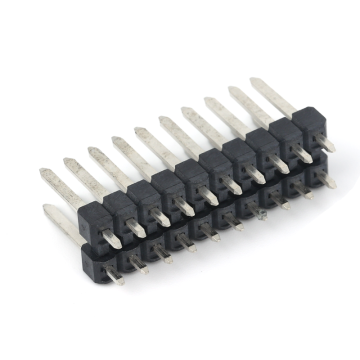

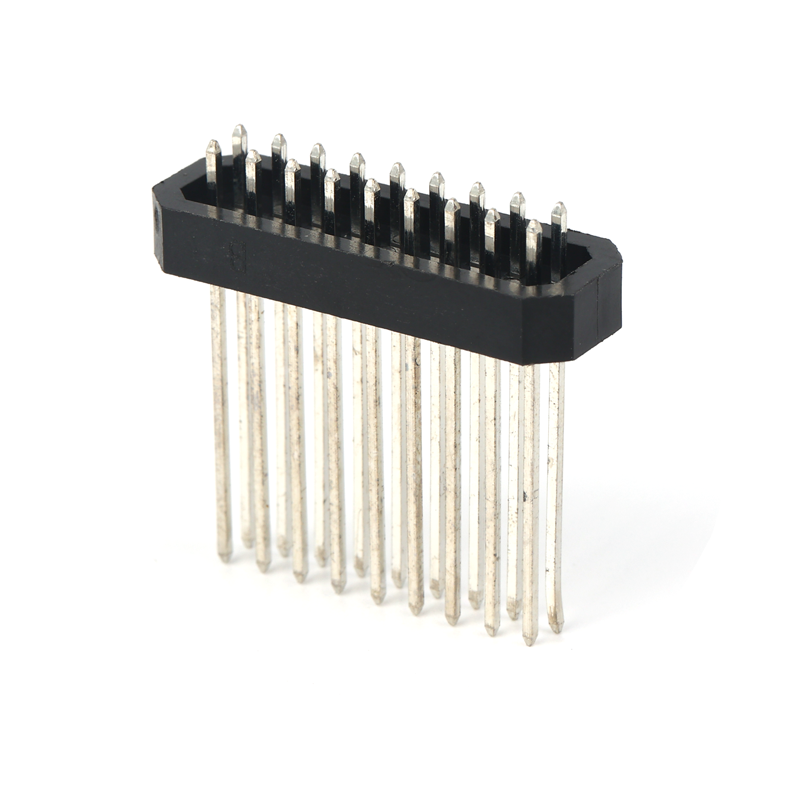

2.2 Spacing connector double row 180 degree

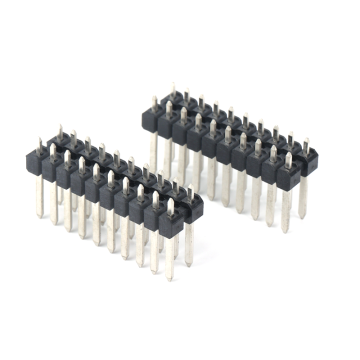

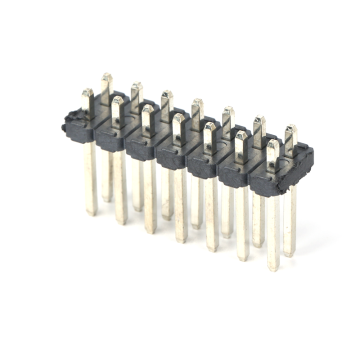

2.2 Spacing connector double row

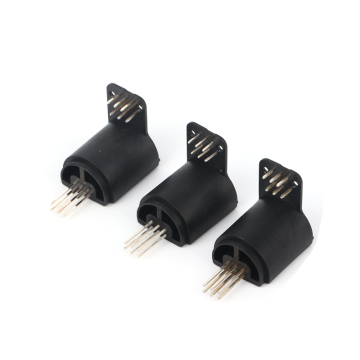

2.2 Spacing connector 180 degree

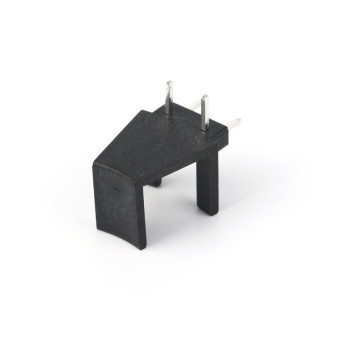

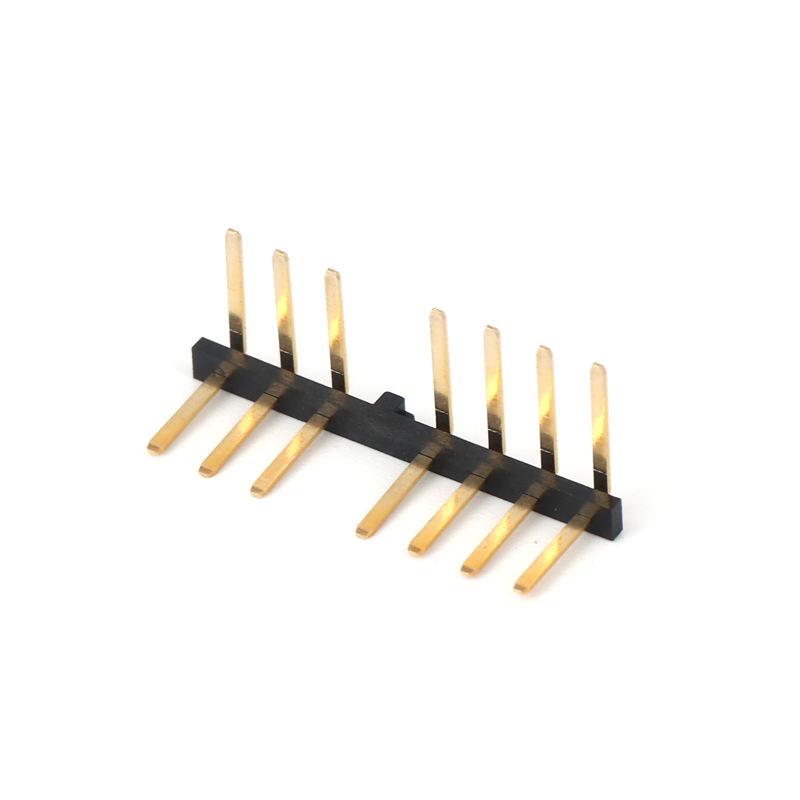

2.2 Spacing connector

Product Features
High - precision signal transmission
Adopting differential signal transmission technology, the error rate is less than 0.01%, improving the accuracy of vehicle control.
High - reliability connection
Ensure a contact resistance of ≤ 3m Ω and maintain stable connection under complex working conditions such as vehicle vibration and collision.
Excellent environmental adaptability
With an operating temperature range of - 40℃ to 125℃ and a protection level of IP67, it is waterproof, dustproof, and resistant to salt spray, adapting to various harsh environments.
Strong electromagnetic compatibility
Double layer metal shielding structure combined with EMI filtering technology effectively suppresses vehicle electromagnetic interference
Application Scenarios
  • Central control display system
    Connects the central control large screen with the vehicle control unit, enabling stable transmission of high - definition image display and touch operation signals.
  • Full - LCD instrument panel
    Provides accurate vehicle data and image transmission for the instrument panel, presenting clear and smooth display effects.
  • HUD head - up display system
    Projects important information such as navigation and vehicle speed onto the windshield, achieving delay - free data transmission and ensuring driving safety.
  • In - vehicle audio system
    Supports the transmission of high - fidelity audio signals, and with surround sound technology, it creates an immersive auditory experience.
Product Philosophy
Please listen to us
At dgyzconn, the ECU Controller Connector adheres to the concept of "Precise Connection, Driving the Future". We are well aware of the importance of ECU systems for vehicle performance and safety. Therefore, we strive for ultimate precision and reliability, continuously innovating technologies and optimizing processes. Every aspect, from material selection to manufacturing, is strictly controlled. We are committed to providing customers with high - performance and high - stability ECU connection solutions, helping the automotive industry develop towards intelligence, connectivity, and efficiency, and becoming a trusted partner in the automotive electronics field.
Original Concept
FAQ
How to select the appropriate ECU Controller Connector for different vehicle ECU systems?
Consider the signal type, transmission rate, operating voltage, current requirements of the ECU system, as well as the vehicle's usage environment (temperature, humidity, vibration conditions). Refer to the parameters in the product specification or contact dgyzconn's technical team, provide detailed ECU system information, and obtain professional selection suggestions.
What should I do if the ECU system fails to work properly after installing the connector?
First, check if the connector is properly plugged in and ensure that the clip is fully locked. Use a multimeter to detect whether the electrical connection of the connector is normal. Check if the pins are oxidized, deformed, or damaged, and clean or replace them if necessary. Check whether the parameters of the connector match those of the ECU system. If not, replace it with a suitable connector.
Can the ECU Controller Connector be used in high - vibration environments?
Yes. The product has excellent anti - vibration performance. The multi - contact redundant design and strong locking structure can maintain a stable connection in high - vibration environments. However, during installation, use the supporting anti - vibration fixing parts and reinforce the cables to ensure overall stability.
How to solve the problem of electromagnetic interference affecting ECU signal transmission?
Select connector models with strong electromagnetic compatibility design and ensure that their shielding layers are effectively grounded. Optimize the wiring to avoid close parallel or crossing of signal cables and power cables. EMI filters can be added to further suppress electromagnetic interference. Check whether surrounding electronic devices generate interference sources and isolate them if necessary.
