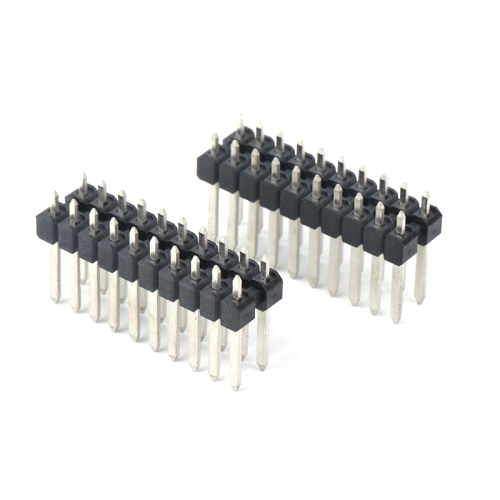

3.5 spacing connector double row 180 degree

dgyzconn’s meticulously crafted 3.5 spacing connector double row 180 degree is specifically designed for high-load and high-stability circuit connection scenarios. As a remarkable product in the 3.5 Spacing connector series, its standard 3.5mm pitch double-row straight pin structure precisely meets the planar wiring needs of high-current and multi-line PCB boards, standing out in the 3.5 Spacing connector double row category for excellent electrical performance and durability.



This connector features thickened high-quality copper alloy pins with tin-plated surfaces, perfectly meeting the high-current transmission requirements of Female Connector Head. Each pin can stably carry 7A current and operate reliably in harsh environments ranging from -40°C to +125°C, with a contact resistance as low as 13mΩ. The 180-degree straight pin technology (3.5 Spacing connector 180 degree), combined with a high-temperature-resistant PA9T material shell, ensures firm soldering through advanced SMT technology. The double-layer insulation design effectively isolates signals and reduces crosstalk. The double-row layout supports parallel transmission of up to 40PIN signals, with a plastic height of 5.5mm, and the design with locating posts ensures precise installation. The product strictly adheres to RoHS standards and is certified by ISO9001, widely used in electric control systems of new energy vehicles, industrial power equipment, etc., providing solid and reliable direct connection support for various complex circuits.
