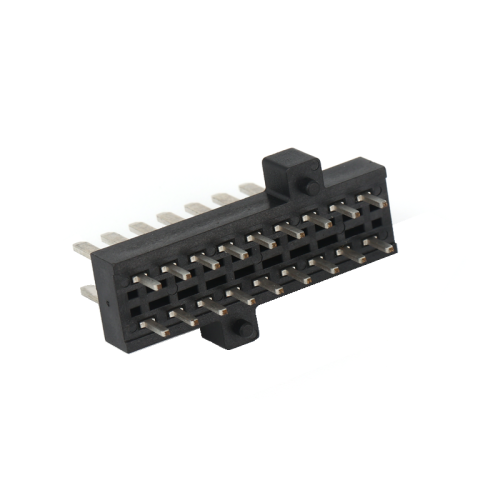

3.2 Spacing connector 180 degree 18P

dgyzconn’s 3.2 Spacing connector 180 degree 18P is an industrial-grade connection solution designed for high-current and high-stability circuits. As a key model in the 3.2 Spacing connector series, its standard 3.2mm pitch straight pin structure and 18PIN design precisely adapt to large-scale planar wiring needs of PCB boards, leading the market in the 3.2 Spacing connector double row category for excellent current-carrying capacity and vibration resistance.



Featuring thickened phosphor bronze pins with tin-plated surfaces, this connector meets the high-current transmission requirements of Female Connector Head, with a rated current of 8A per pin, operating stably in -40°C to +125°C environments and achieving a contact resistance as low as 12mΩ. The 180-degree straight pin technology (3.2 Spacing connector 180 degree), paired with a high-temperature-resistant PA6T material shell, ensures secure soldering via SMT technology. The double-layer insulation structure enhances safety and anti-interference capabilities. The optimized pin spacing design reduces crosstalk, supporting parallel transmission of multiple power and signal lines. With a 5.0mm plastic height and locating posts design, it ensures precise installation. Compliant with RoHS standards and IATF16949 certified, it is widely used in new energy equipment, industrial control motherboards, etc., providing reliable straight pin connection support for high-load circuits.
