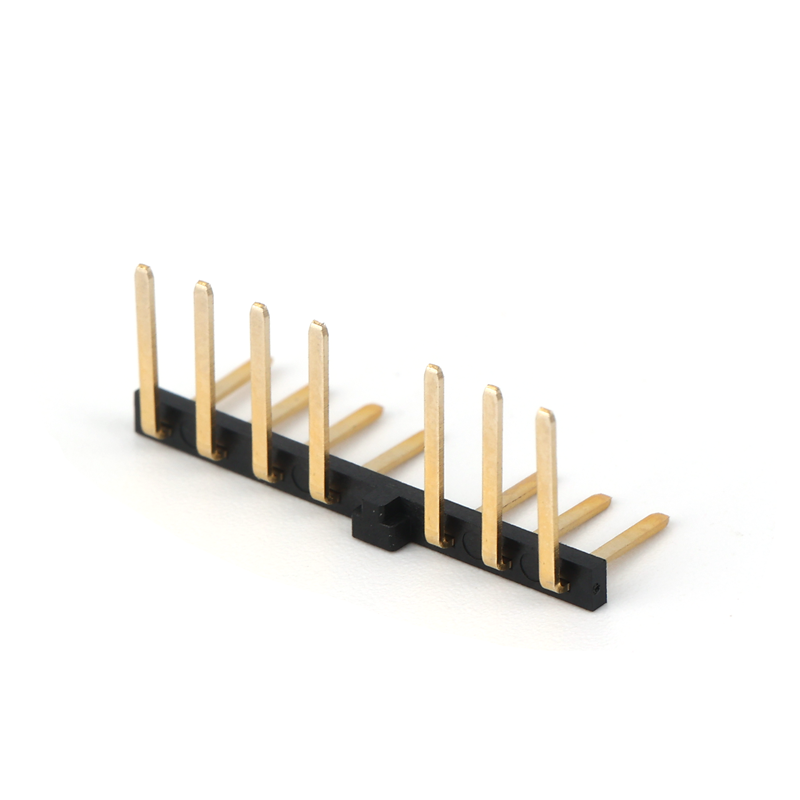

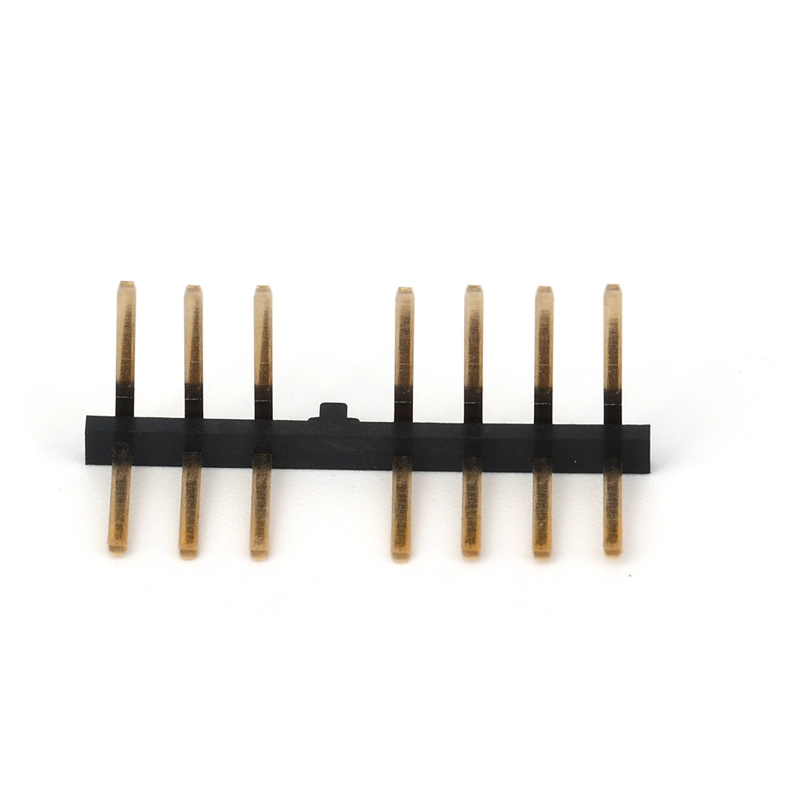

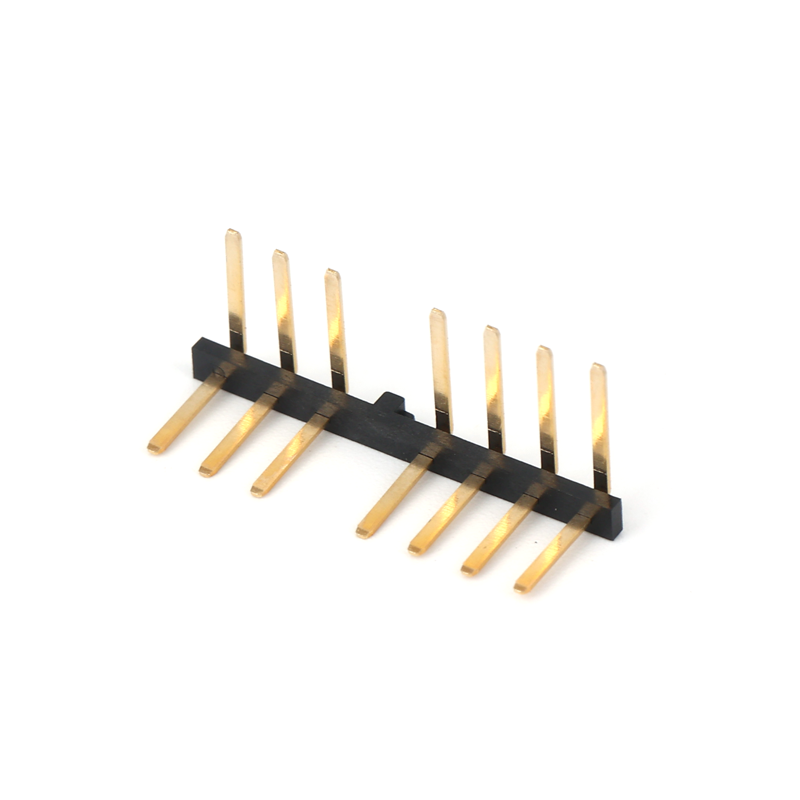

2.54 bent needle 8P empty 1P connector

dgyzconn’s newly launched 2.54 bent needle 8P empty 1P connector is a flexible product designed to meet diverse circuit connection requirements. As a featured model in the 2.54 Spacing connector series, its standard 2.54mm pitch and unique 8-pin 1-empty-position bent needle layout precisely adapt to the complex wiring scenarios of PCB boards, standing out among similar products with innovative design.



This connector features high-quality copper alloy bent pins with a suitable diameter, tin-plated on the surface to ensure excellent conductivity and oxidation resistance, meeting the connection requirements of Female Connector Head. The 8-pin 1-empty-position design facilitates circuit expansion and debugging, allowing flexible adjustment of the wiring layout. The pins adopt a 180-degree bent needle process (2.54 Spacing connector 180 degree), cleverly saving PCB board space and effectively improving wiring efficiency. With a high-temperature-resistant PBT material shell, it has excellent insulation and mechanical strength, operating stably in environments ranging from -40°C to +105°C, with a contact resistance as low as 18mΩ. It belongs to the derivative structure of 2.54 Spacing connector double row, and although it is a single row, it can meet the circuit density requirements similar to double rows. Manufactured by SMT technology, it complies with RoHS standards and ISO9001 certification, widely used in signal transmission, power connection, and other scenarios of electronic devices, providing engineers with convenient and reliable connection solutions.
