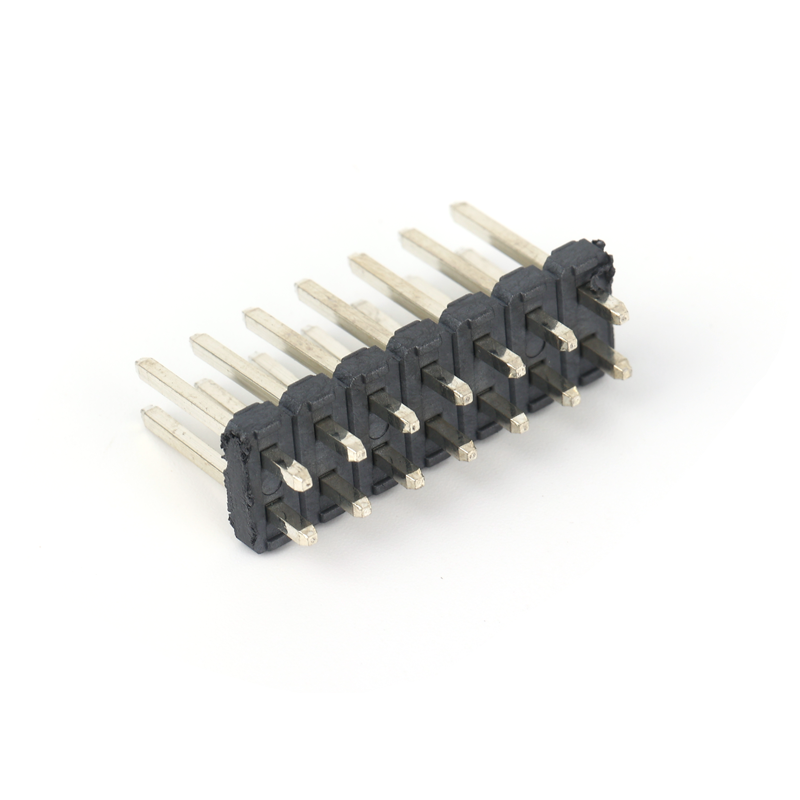

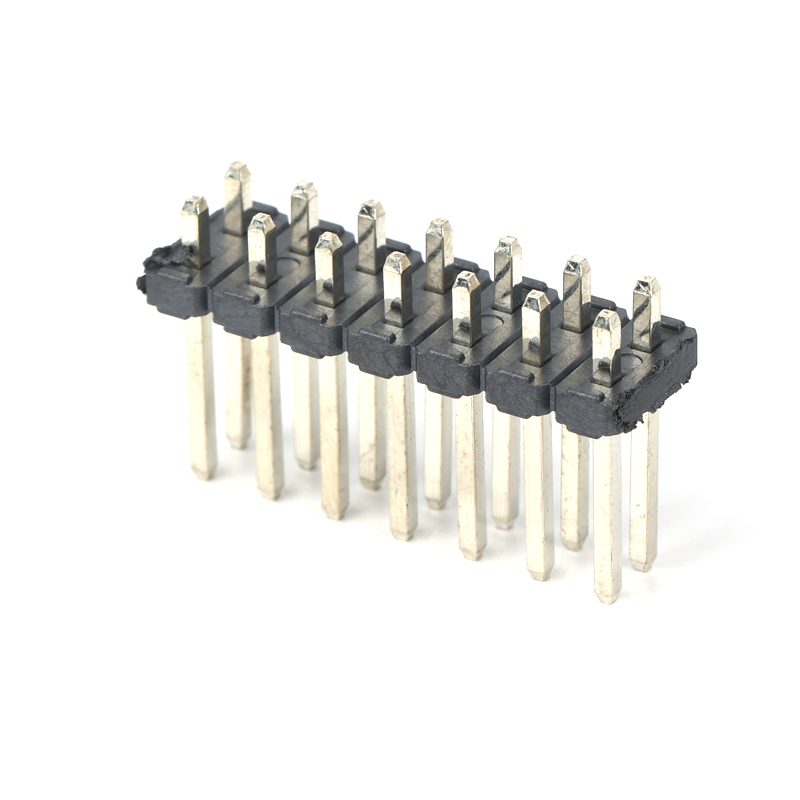

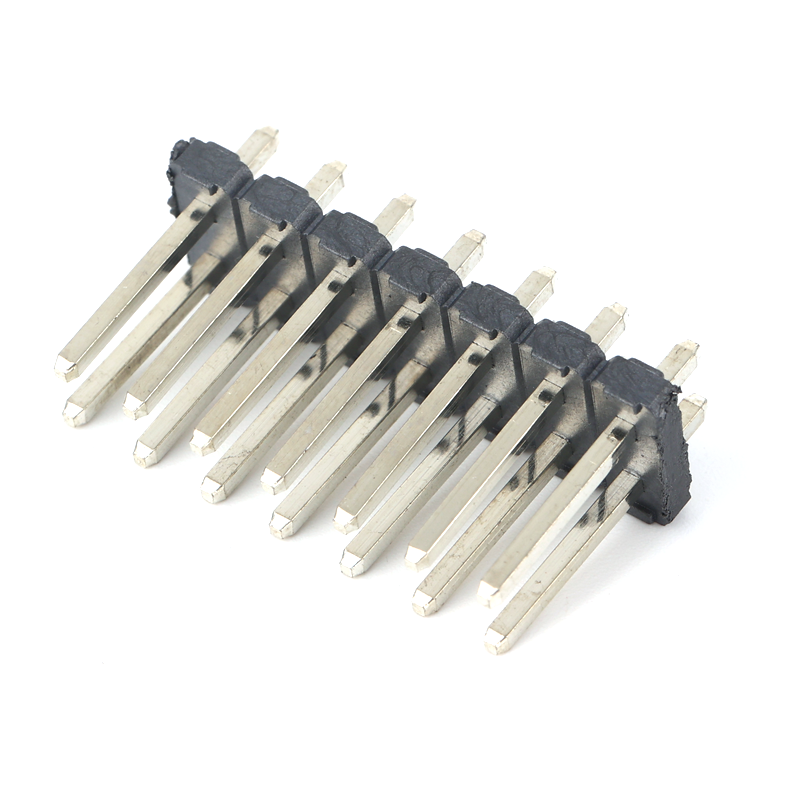

4.2 Pitch Pin Double Row 180 degree

dgyzconn’s newly developed 4.2 Pitch Pin Double Row 180 degree Pin Header is a professional connection solution tailored for high-current and highly reliable circuit systems. As a core product of the 4.2 Spacing connector series, its standard 4.2mm pitch double-row straight pin structure precisely meets the planar wiring requirements of high-power and multi-line PCB boards, gaining a market advantage in the 4.2 Spacing connector double row category for excellent electrical performance and sturdiness.



This pin header features thickened high-quality copper alloy pins with tin-plated surfaces, closely matching Female Connector Head. Each pin has a rated current of up to 9A, operating stably in harsh environments from -40°C to +125°C, with a contact resistance as low as 10mΩ. Using the 180-degree straight pin technology (4.2 Spacing connector 180 degree), paired with a high-temperature-resistant PA9T material shell, and combined with advanced SMT technology for firm soldering, the double-layer insulation design effectively isolates signal interference. The double-row layout supports parallel transmission of up to 50PIN signals, with a plastic height of 6.5mm, and the design with locating posts ensures precise installation. The product strictly complies with RoHS standards and is certified by both ISO9001 and UL, widely used in new energy energy storage devices, heavy industrial control platforms, etc., providing stable and reliable direct connection support for complex circuit systems.
