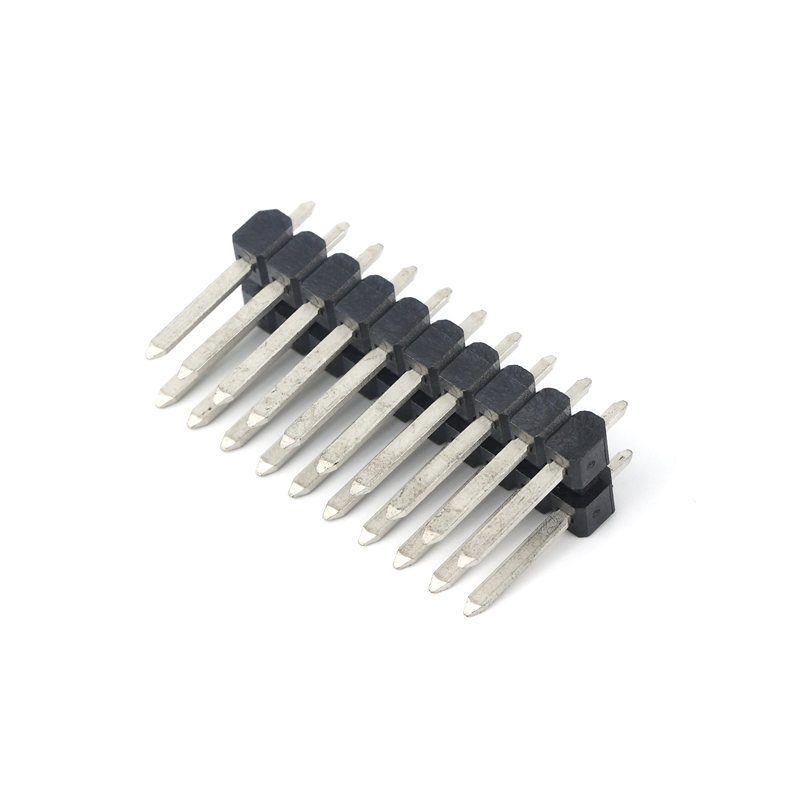

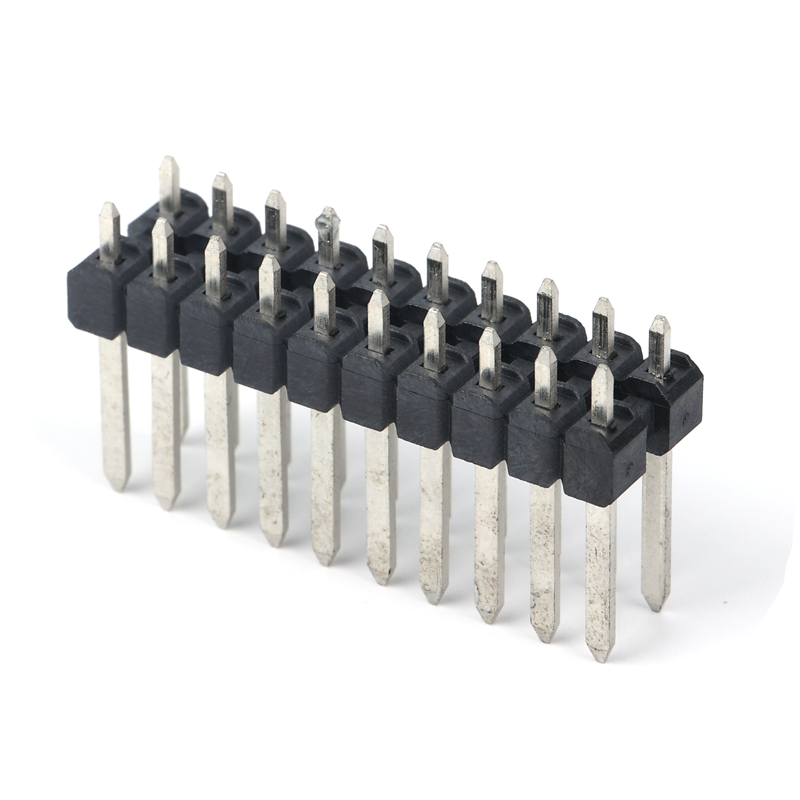

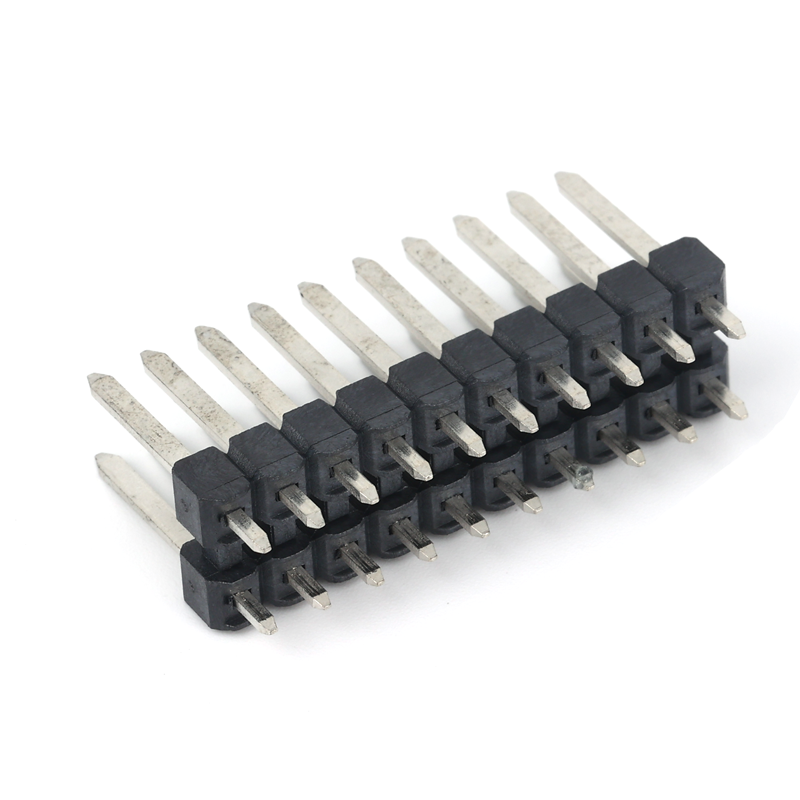

3.5 spacing connector 180 degree double row

dgyzconn’s 3.5 spacing connector 180 degree double row is the ideal choice for industrial-grade power transmission and signal interaction scenarios. As a core product of the 3.5 Spacing connector series, its standard 3.5mm pitch double-row straight pin structure precisely adapts to the high-power and high-density wiring requirements of PCB boards, excelling in the 3.5 Spacing connector double row category for its strong current-carrying capacity and stable transmission performance.



This connector features thickened high-quality copper alloy pins with tin-plated surfaces, closely matching Female Connector Head. Each pin has a rated current of up to 8A, operating stably in extreme environments from -40°C to +125°C, with a contact resistance as low as 12mΩ. The 180-degree straight pin technology (3.5 Spacing connector 180 degree), combined with a high-temperature-resistant PA6T material shell, ensures firm soldering through SMT technology. The double-layer plastic structure further enhances insulation and anti-interference capabilities. The double-row design supports parallel transmission of up to 48PIN signals, with a plastic height of 6.0mm, and the design with locating posts ensures precise installation. The product strictly complies with RoHS standards and is certified by both ISO9001 and IATF16949, widely used in smart grids, automated production lines, etc., providing efficient and reliable direct connection solutions for complex circuit systems.
