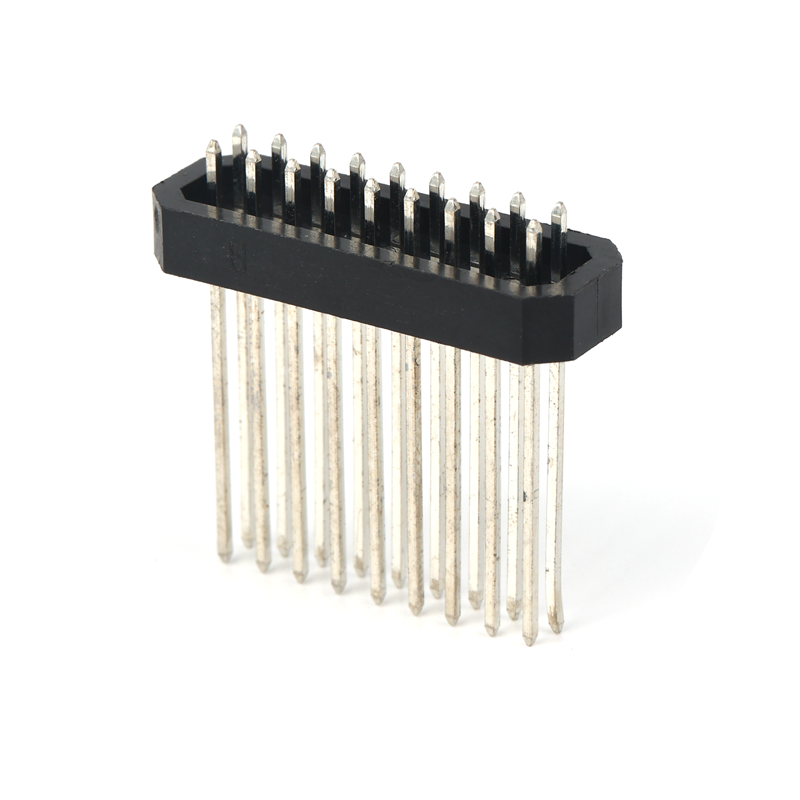

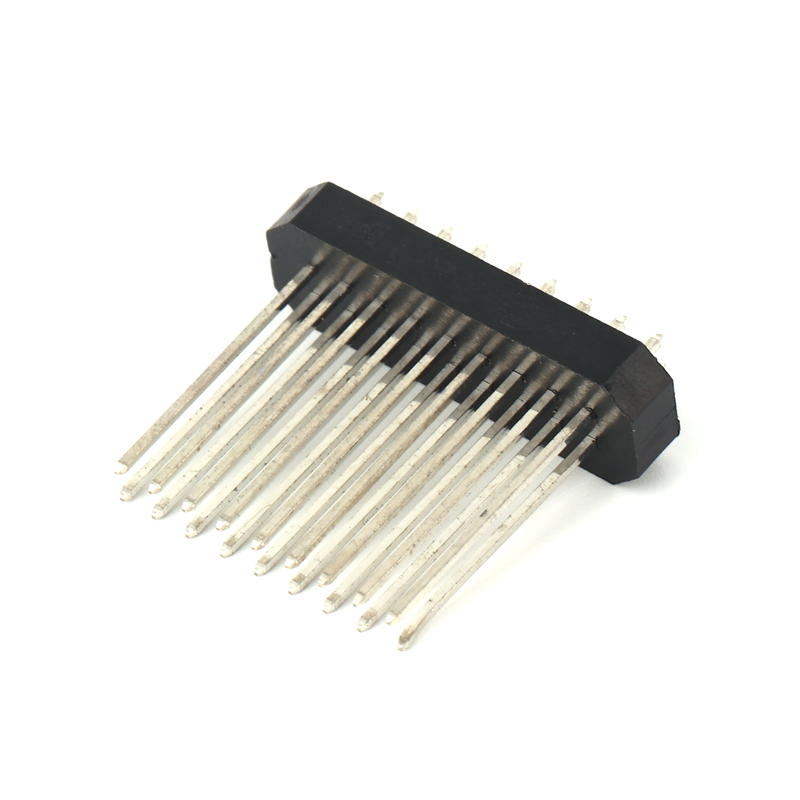

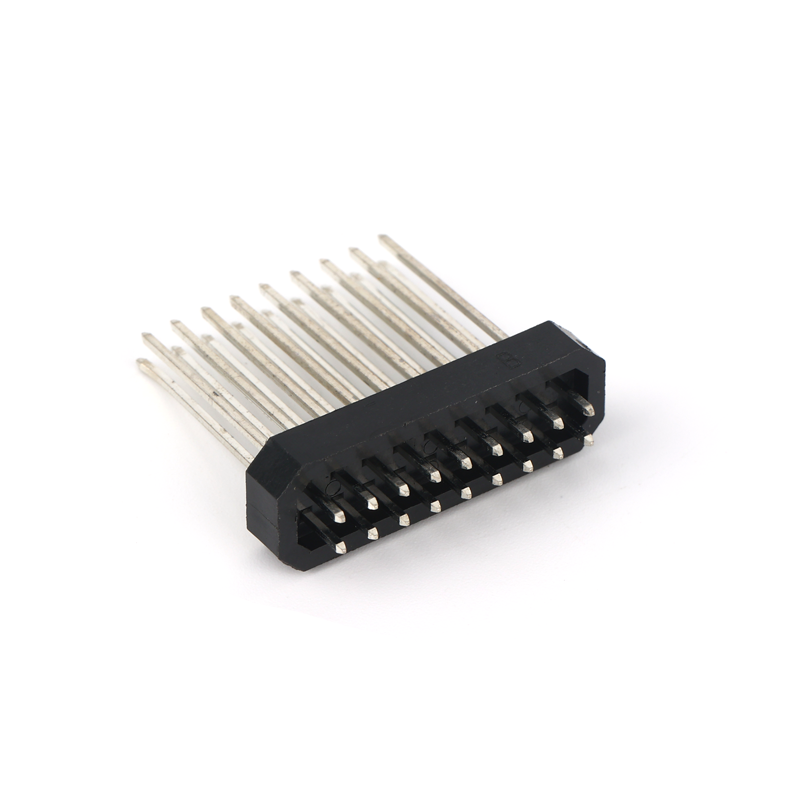

2.2 Spacing connector double row 180 degree

dgyzconn’s 2.2 Spacing connector double row 180 degree is a professional solution designed for efficient straight pin connections in compact electronic devices. As a core model in the 2.2 Spacing connector series, its standard 2.2mm pitch double-row straight pin structure precisely adapts to high-density wiring scenarios of PCB board planar layouts, standing out in the 2.2 Spacing connector double row category for stable electrical performance and convenient installation.



Featuring high-quality phosphor bronze pins with tin-plated surfaces (compatible with Female Connector Head matching requirements), paired with high-temperature-resistant PBT materials, this connector achieves secure connections through 180-degree straight pin technology (2.2 Spacing connector 180 degree). The double-row design supports parallel transmission of up to 32PIN signals, stably carrying 3A current in -40°C to +105°C environments with a contact resistance as low as 20mΩ. With a 3.0mm plastic height and single-layer insulation structure, it ensures safe isolation, while the design without locating posts offers flexible wiring adjustment space. Compatible with automated production via SMT technology, it complies with RoHS standards and ISO9001 certification, widely used in smart homes, wearable devices, etc., providing reliable straight pin connection solutions for medium and low-power circuits.
