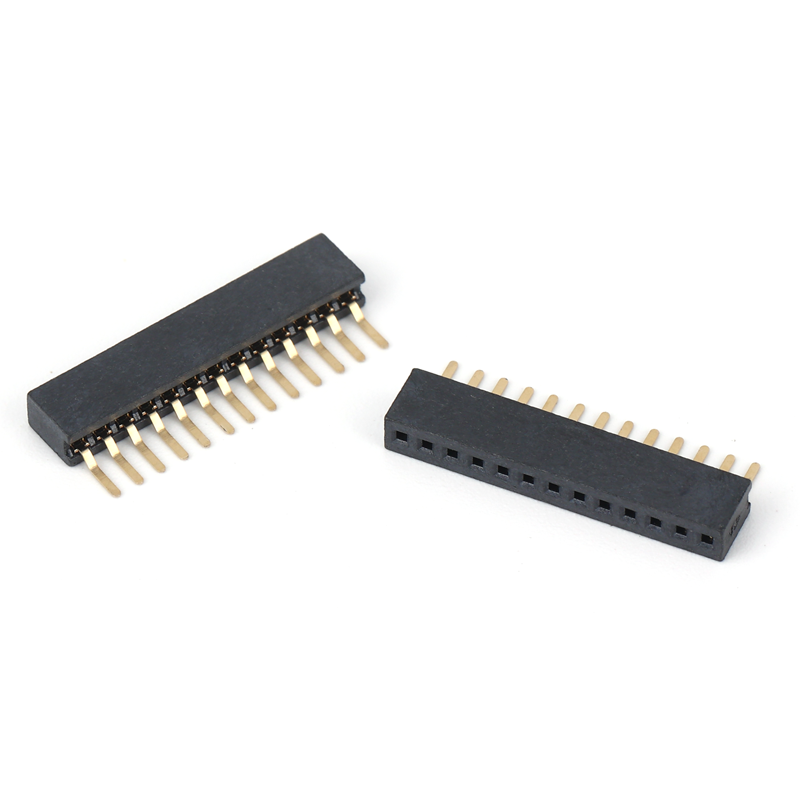

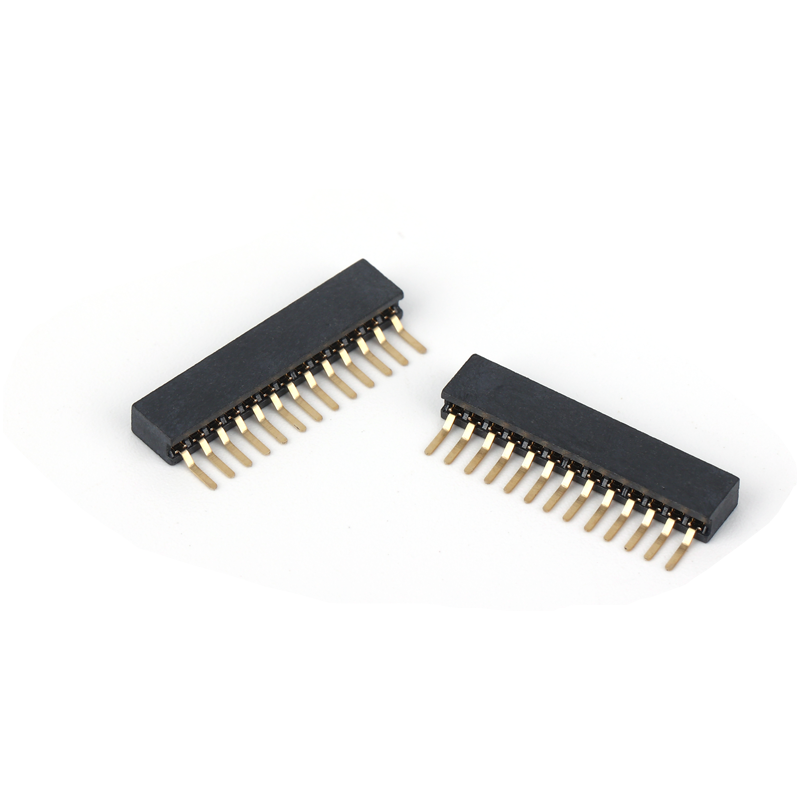

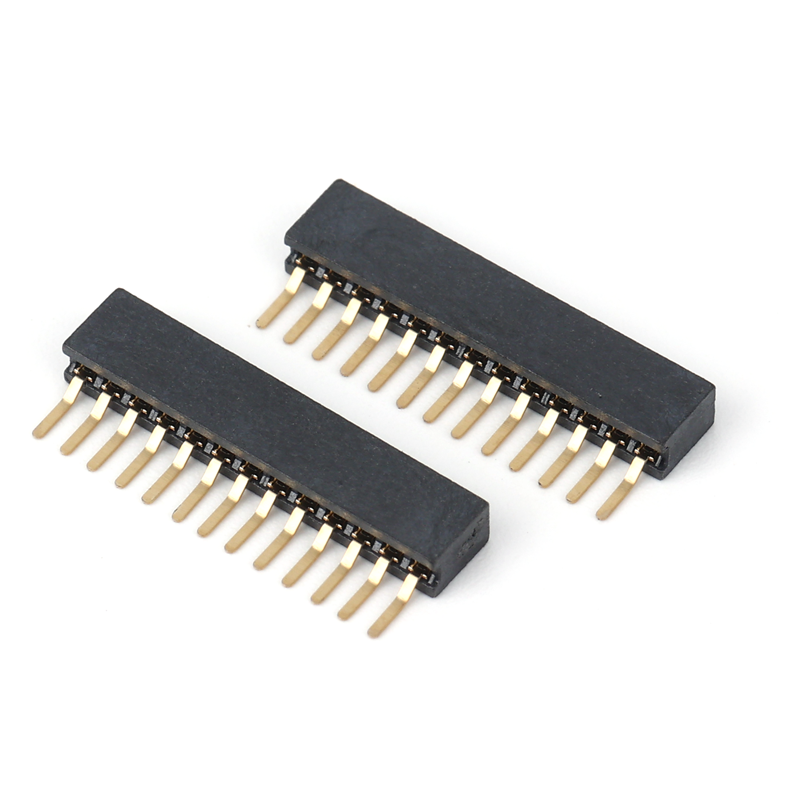

Single Row U-Type SMT Female Header

The 1.27mm Single Row H3.4 U-Type SMT Female Header is an ideal solution for compact and high-density board designs. Featuring a horizontal U-type configuration, this Single Row Female Header provides a stable SMT interface for reliable board-to-board interconnects in space-constrained environments. It is well-suited for embedded electronics, communication modules, and signal transmission applications. The Female Header 1.27mm Pitch design ensures compatibility with fine-pitch male headers while maintaining robust electrical contact.



At dgyzconn, we specialize in precision Female Header Connector manufacturing. Whether you require a custom Socket Header height or specialized packaging, we offer flexible OEM/ODM services. From prototyping to mass production, our solutions ensure compliance with RoHS, ISO9001, and IATF16949 standards while meeting the technical demands of global electronics industries.



Item	Description
Application	Primarily for internal device connections; suitable for electronics, IPCs, telecom, and service components
Solder Type	SMT / Straight / Right Angle / J-Type / U-Type
Plastic Rows	Single Row, Double Row
Rated Current	1A/pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), black
Processing Temperature	230°C to +260°C
Contact Resistance	Max 20 mΩ
Plating	Gold Flash on contacts; Nickel ≥ 50μ" on base
Pin Count	6~100 PIN
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PA46, PA6T, PA9T, LCP
Packaging	Plastic tray + carton (customizable)
Services	ODM & OEM available, color customization supported
