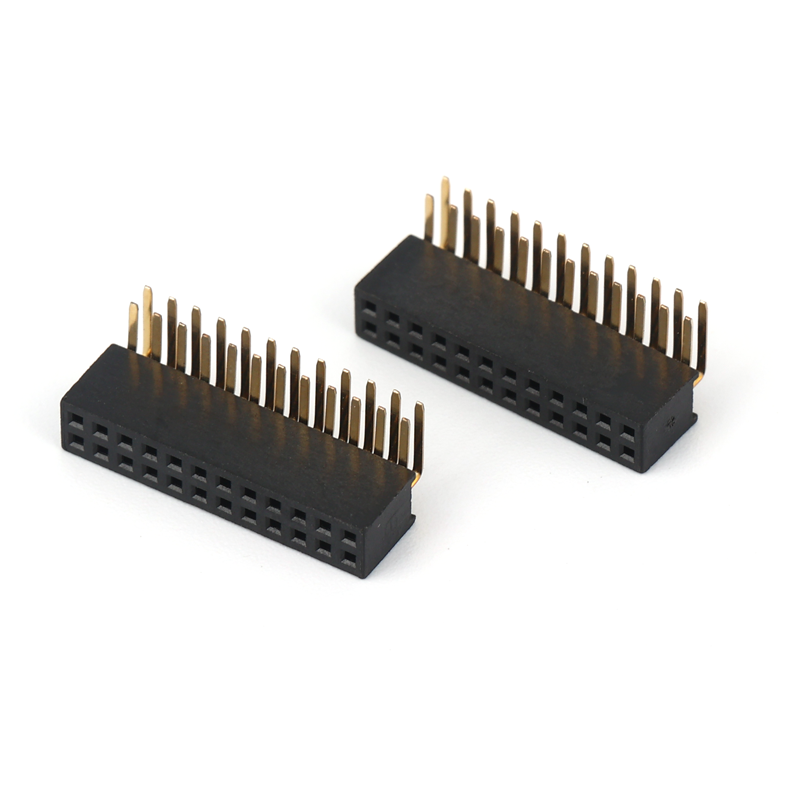

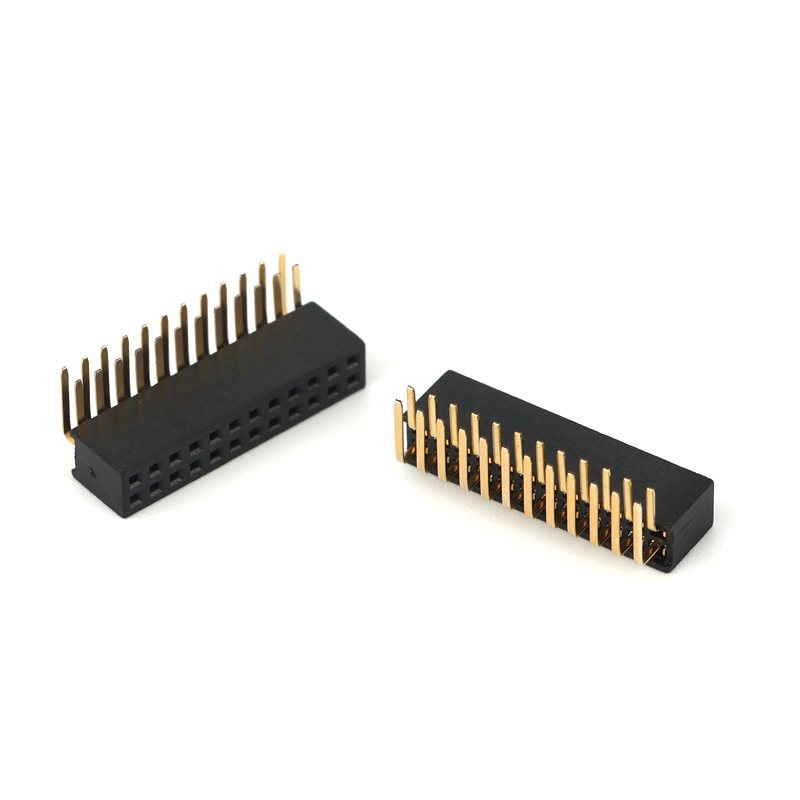

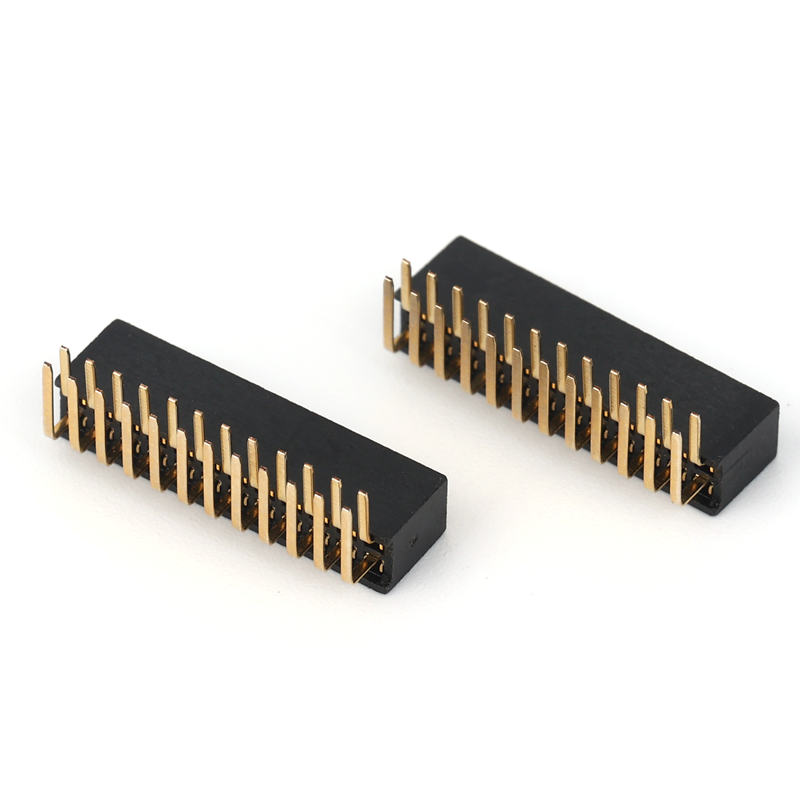

1.27mm Female Header U-Type Dual-Bend

This 1.27mm Double Row Female Header with H4.3 height and 90° dual-bend leads is designed for corner-mount board applications. The bent leg structure allows for versatile mounting on both vertical and horizontal PCBs. Its double-row layout offers increased pin density and better signal handling, making it ideal for modular instruments and compact devices. As a reliable Socket connector, it integrates seamlessly in high-speed data paths and digital interfaces.



dgyzconn provides end-to-end support for customers seeking tailored Female Connector products. We accommodate varied requests for contact plating, row configuration, and housing materials. Our expertise in Board-To-Board Connector systems ensures that every 1.27 Mm Female Header we produce meets stringent mechanical and electrical standards.



Item	Description
Application	Primarily for internal device connections; suitable for electronics, IPCs, telecom, and service components
Solder Type	SMT / Straight / Right Angle / J-Type / U-Type
Plastic Rows	Single Row, Double Row
Rated Current	1A/pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), black
Processing Temperature	230°C to +260°C
Contact Resistance	Max 20 mΩ
Plating	Gold Flash on contacts; Nickel ≥ 50μ" on base
Pin Count	6~100 PIN
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PA46, PA6T, PA9T, LCP
Packaging	Plastic tray + carton (customizable)
Services	ODM & OEM available, color customization supported
