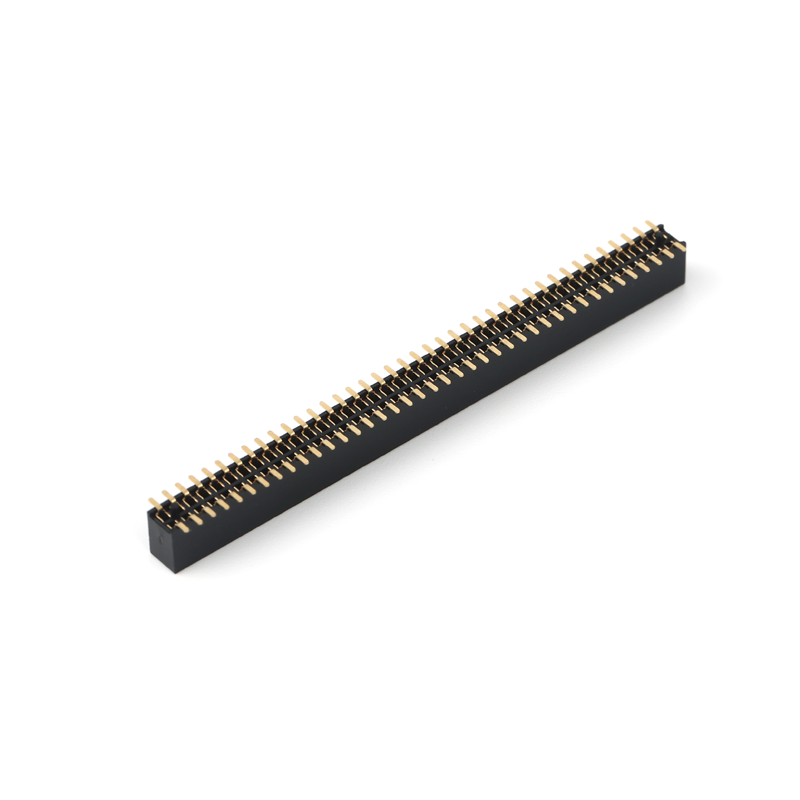

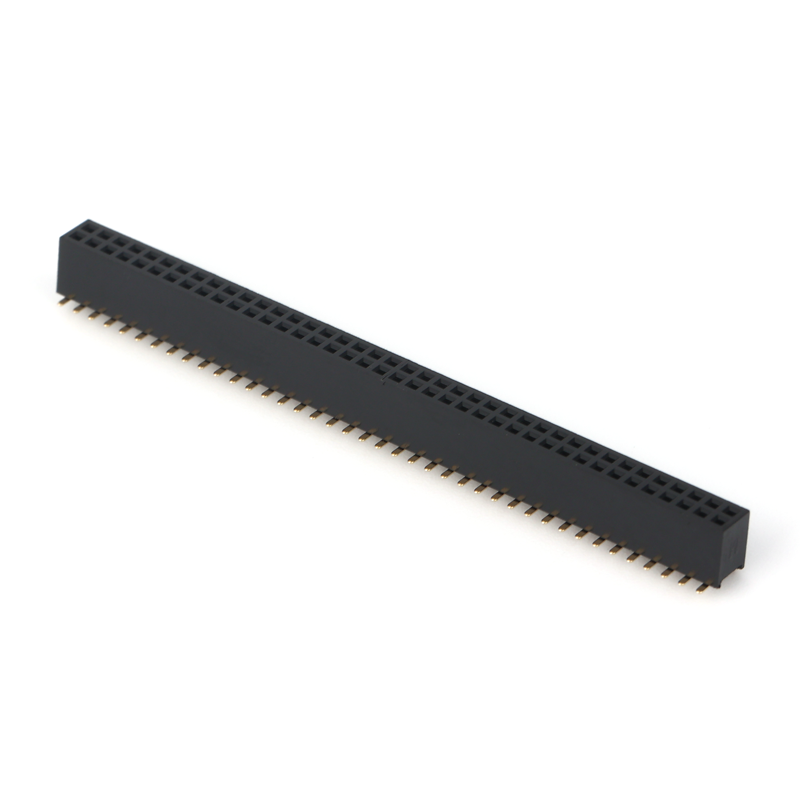

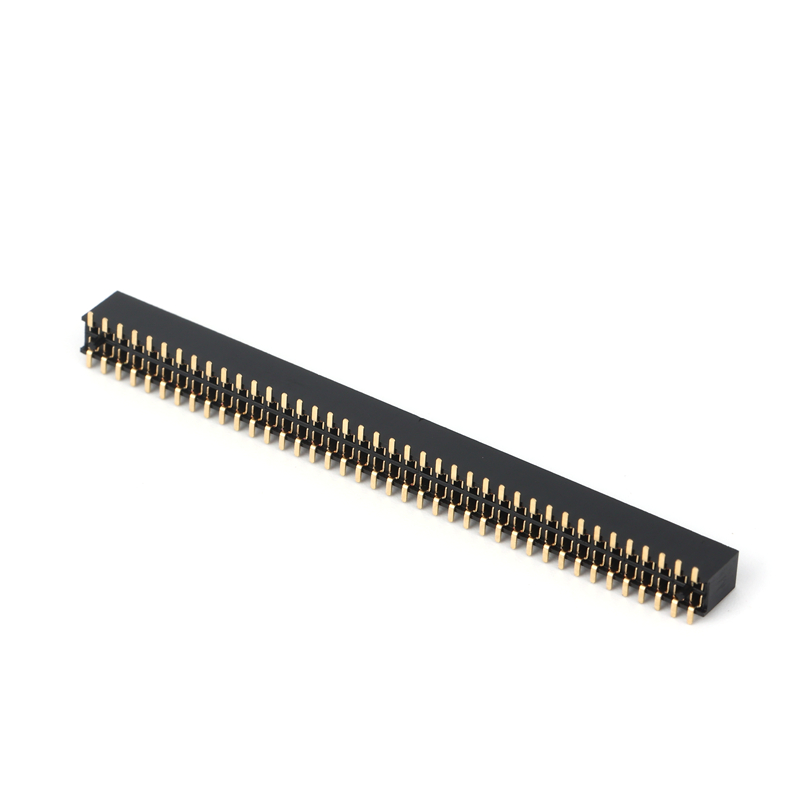

Model No.: 051606
The file is encrypted. Please fill in the following information to continue accessing it
| Item | Description |
| Application | Primarily for internal device connections; suitable for electronics, IPCs, telecom, and service components |
| Solder Type | SMT / Straight / Right Angle / J-Type / U-Type |
| Plastic Rows | Single Row, Double Row |
| Rated Current | 1A/pin |
| Operating Temperature | -40°C to +105°C |
| Terminal Material | C2680; C5191 |
| Insulator Material | LCP (UL94V-0), black |
| Processing Temperature | 230°C to +260°C |
| Contact Resistance | Max 20 mΩ |
| Plating | Gold Flash on contacts; Nickel ≥ 50μ" on base |
| Pin Count | 6~100 PIN |
| Certifications | IATF16949, ISO9001, ISO14000 |
| RoHS Compliance | Yes |
| Materials | PA46, PA6T, PA9T, LCP |
| Packaging | Plastic tray + carton (customizable) |
| Services | ODM & OEM available, color customization supported |
