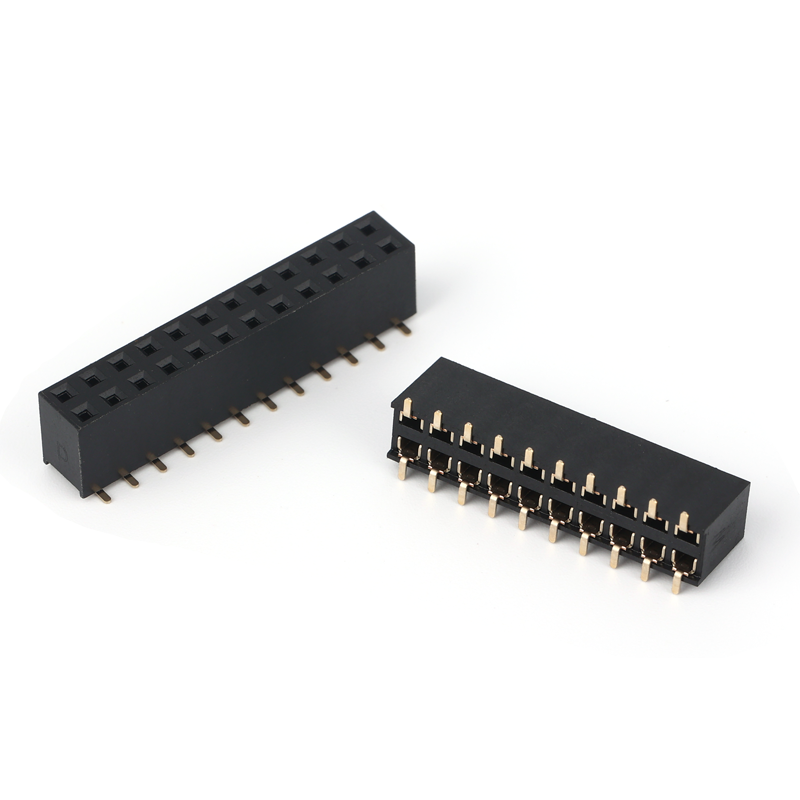

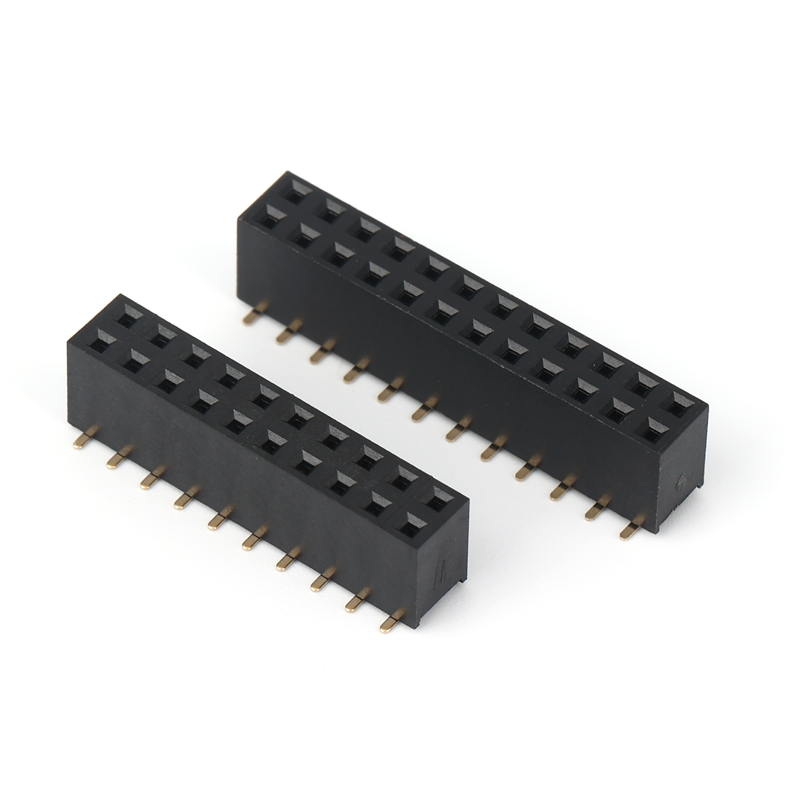

2.54mm Double Row H7.1 U SMT

The 2.54mm Double Row H7.1 U SMT by dgyzconn is an efficient component for dual-row SMT connections. With 2.54mm pitch, double-row design, U-shaped structure and 7.1mm height, it fits surface-mount PCBs with height requirements, used in IoT gateway motherboards and automotive electronics. As a quality 2.54 Mm Pitch Female Header, it precisely mates with male headers for stable multi-signal transmission.​



Adopting SMT technology, it enables rapid automated assembly to boost efficiency. The 7.1mm height reserves space for upper components, and the U-shaped structure enhances PCB fit. This design matches 2.54 Mm Female Header installation needs, suitable for high-density SMT devices. Double rows transmit multiple signals simultaneously. Gold-plated phosphor bronze terminals (8mΩ resistance, 5,000+ cycles) perfectly match Header Female 2.54 standards, outperforming ordinary connectors.​



The high-temperature resistant LCP shell works stably at -40℃~105℃, meeting strict requirements. Compared to traditional Solderless Headers, its SMT design (no perforation) ensures firmer connections, ideal for automated mass production. It’s preferred for IoT multi-signal connections and automotive electronics transmission, with stable performance and efficient installation.​
