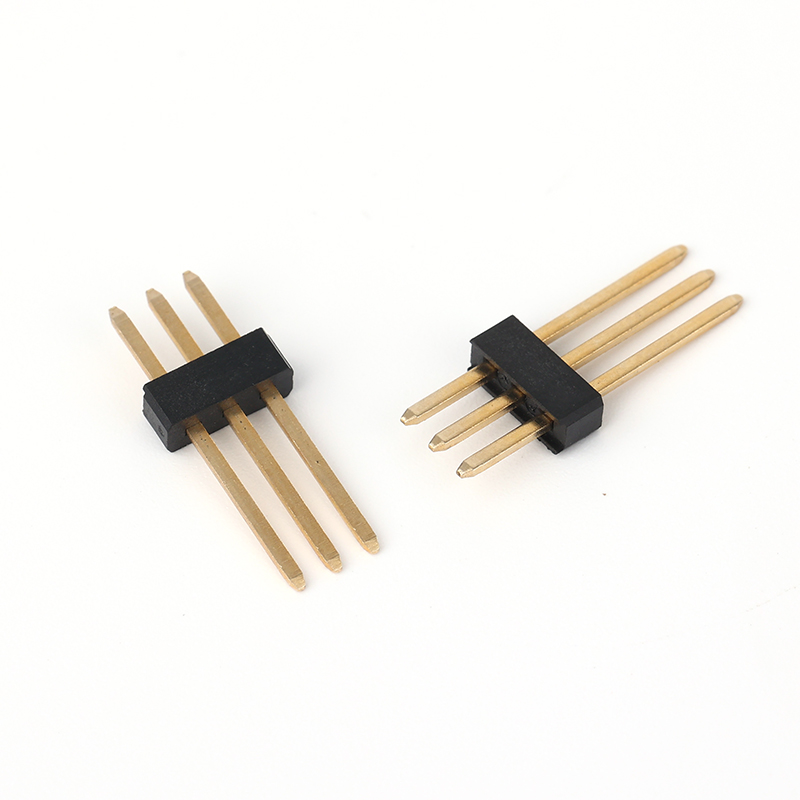

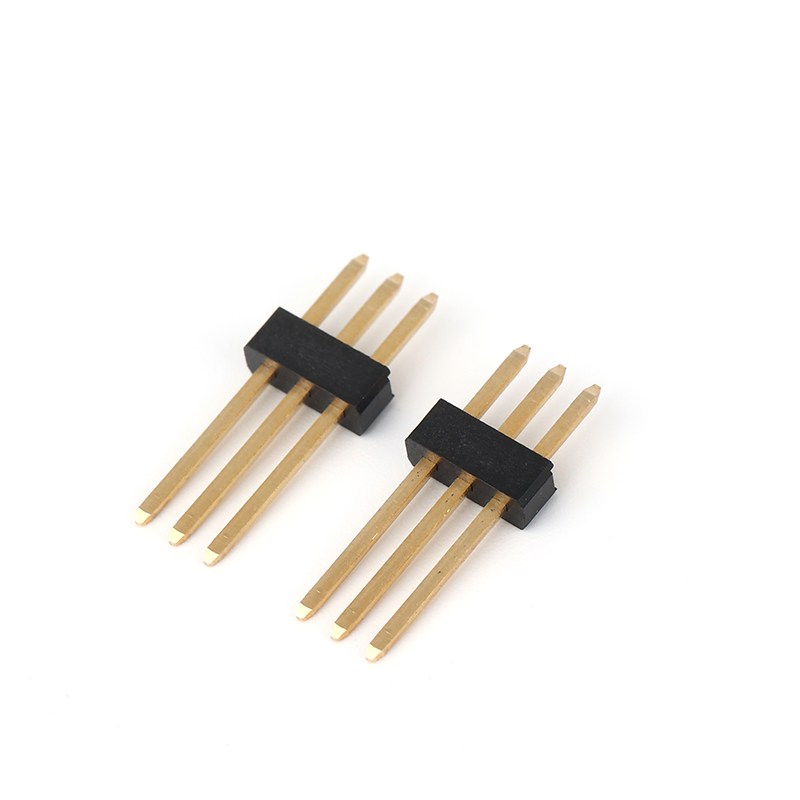

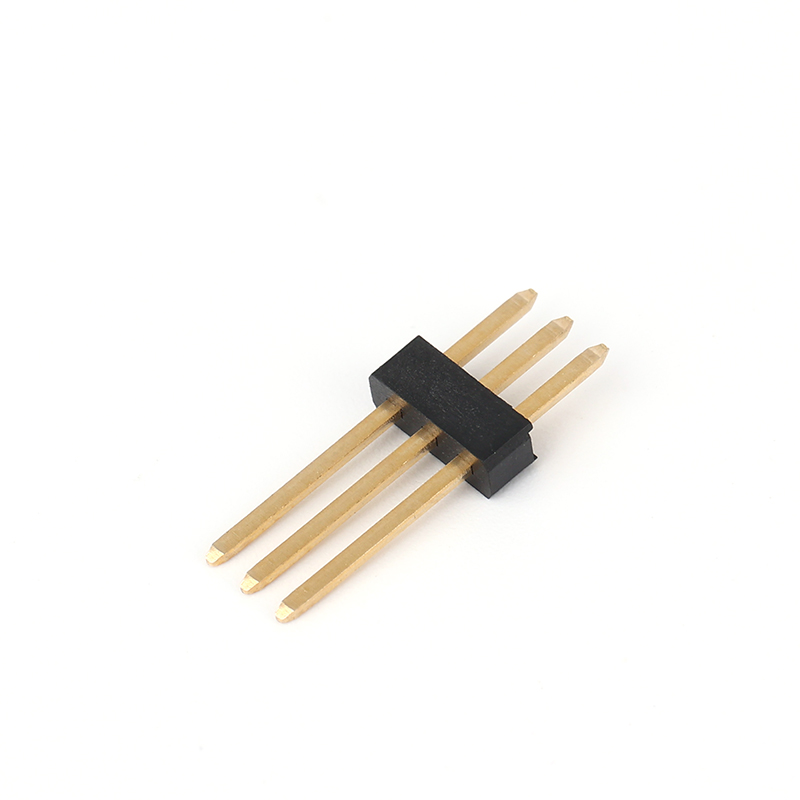

Model No.: 010401
The file is encrypted. Please fill in the following information to continue accessing it
| Item | Description |
| Application | Primarily used for internal device connections, not for external interfaces. Suitable for electronic products, industrial computers, communication systems, and aftermarket parts. |
| Soldering Type | SMT / Straight / Right Angle / J-Type / U-Type |
| Plastic Rows | Single Row, Dual Row |
| Rated Current | 2A per pin |
| Operating Temperature | -40°C to +105°C |
| Terminal Material | C2680; C5191 |
| Insulator Material | LCP (UL94V-0), Black |
| Processing Temp. Range | 230°C to 260°C |
| Contact Resistance | Max 20mΩ |
| Contact Plating | Gold Flash |
| Base Nickel Layer | ≥50μ" |
| Number of Contacts | 6–80 PIN |
| Certifications | ISO9001, ISO14000 |
| RoHS Compliance | Yes |
| Materials | PBT, PA46, PA6T, PA9T, LCP |
| Packaging Details | Standard packaging: plastic tray + carton; customizable upon request |
| Service Type | ODM and OEM services available; color customization supported |
