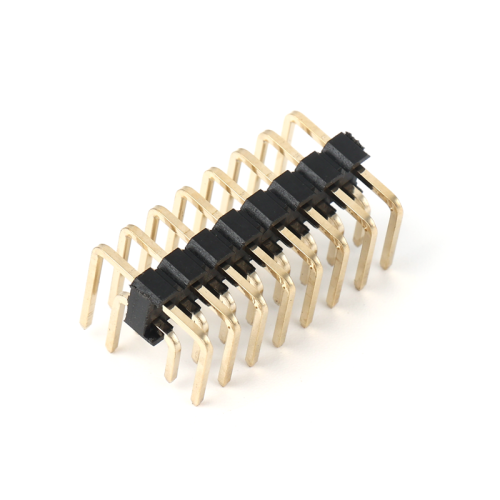

Centipede foot needle spacing 2.54mm double row

dgyzconn’s Centipede foot needle spacing 2.54mm Double Row Pin Header is an innovative solution customized for high-frequency signal transmission and high-density wiring scenarios. As a cutting-edge model in the 2.54mm Pitch Pin Header series, its standard 2.54mm pitch double-row centipede foot structure (simulating dense pin 布局 like centipede legs) precisely adapts to the miniaturization and high-integration needs of PCB boards, leading industry trends in the Pin Header Double Row 2.54mm pitch category for excellent signal integrity and anti-interference capabilities.



Featuring phosphor bronze gold-plated precision pins with a diameter of 0.640.64 (**Pin diameter 0.640.64**) and anti-oxidation treatment, paired with high-temperature-resistant LCP materials (2.54mm pitch LCP material) and double-layer plastic structure (2.54mm pitch two-layer plastic pin headers), this pin header achieves micron-level precise soldering through SMT technology (2.54mm SMT Pin Header). The centipede foot pin layout effectively reduces parasitic capacitance, supporting high-frequency signal transmission up to 50MHz. The double-row design can carry up to 64PIN signals, with a rated current of 5A per pin and a contact resistance as low as 10mΩ. With a 2.5mm plastic height and locating posts design (2.54mm pitch pin header with locating posts), it ensures installation accuracy. The lead-free process complies with RoHS standards and ISO9001 certification. Widely used in 5G communication modules, high-end industrial control motherboards, etc., it provides high-density and low-latency premium connection solutions for next-generation electronic devices.

Item	Description
Application	Primarily used for internal device connections
Suitable Industries	Electronics, Industrial PCs, Communication Systems, Aftermarket Components
Mounting Type	SMT / Straight / Right Angle / J-Type / U-Type
Rows of Plastic	Single Row / Double Row
Rated Current	3A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature	230°C to 260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash / Tin Plating
Base Nickel Layer	≥50μ"
Number of Contacts	6–80 PINs
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging	Standard: Plastic Tray + Carton (customizable on request)
Service Type	ODM & OEM services available; flexible color customization supported
