Product Description

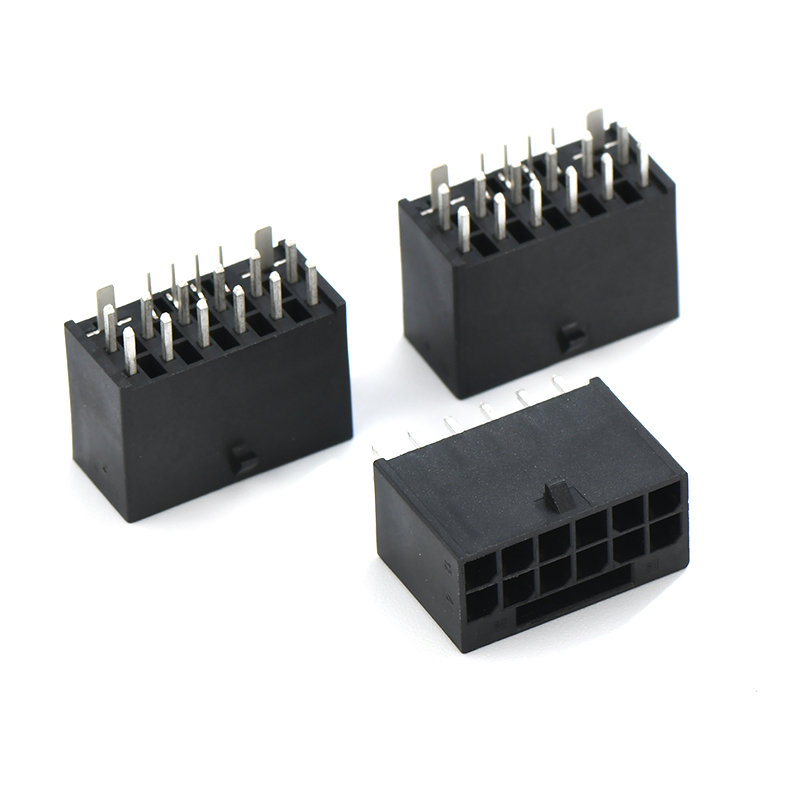

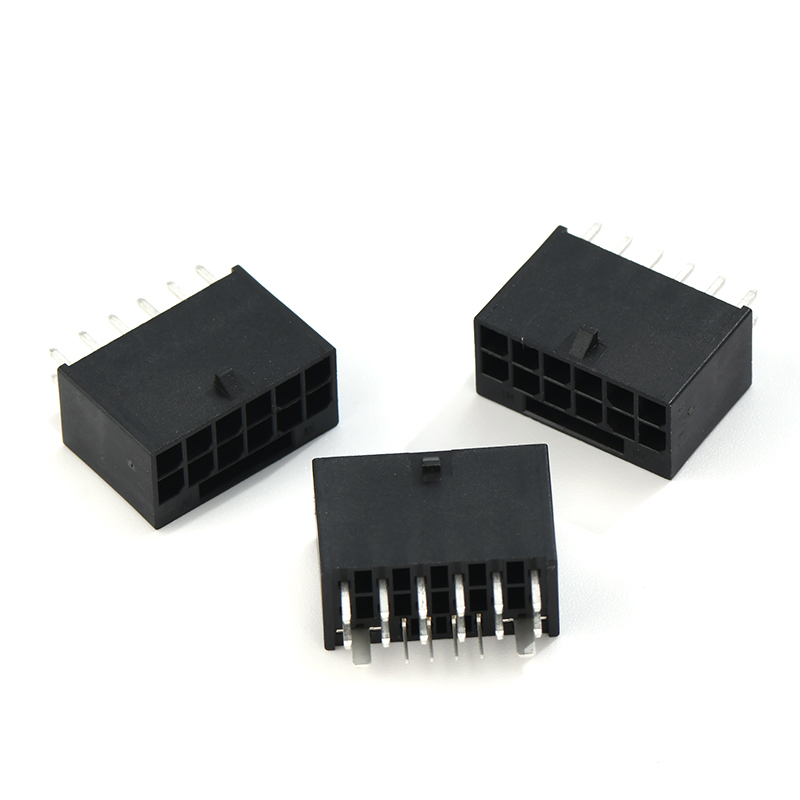

3.0FX 12+4 Pin Wafer Connector

The 3.0FX 12+4 Pin Wafer Connector is designed for equipment that needs multiple signal connections in a limited board space. With its 12+4 pin layout, it can handle more wiring positions while keeping the connection neat and organized inside the device.

Item	Specification
Series	3.0FX / MX3.0 Wafer Connector
Pitch	3.0 mm
Pin Count	16 Pin (12 Signal + 4 Power)
Arrangement	Dual Row
Orientation	180° Straight
Termination Type	DIP / Through Hole
Housing Material	PA66 / LCP, UL94V-0
Contact Material	Brass
Plating	Matte Tin / Bright Tin
Rated Voltage	250V AC/DC
Rated Current	5A per Pin
Contact Resistance	≤ 10 mΩ
Insulation Resistance	≥ 1000 MΩ
Withstand Voltage	1000V AC for 1 minute
Operating Temperature	-25℃ ~ +85℃
Soldering Temperature	Peak 260℃
Mating Cycles	≥ 30 times
Insertion Force	≤ 1.0 kgf per Pin
Extraction Force	≥ 0.35 kgf per Pin
Compliance	RoHS, Halogen Free

This 180 Degree 3.0mm WAFER Header is a good fit for control boards, communication products, smart appliances, and monitoring systems. The straight header structure makes PCB installation easier and helps improve cable arrangement during assembly work.

One thing customers like about this model is the stable locking performance. Once connected, the terminals stay firmly in place, which helps avoid loose contact during long working hours or equipment vibration. The material also supports reliable electrical transmission for daily industrial use.

As a practical Wire To Board Connector solution, this product works well for manufacturers looking for steady quality and smooth production efficiency. The compact connector wafer structure helps save installation space without making maintenance difficult later on.

For electronic applications requiring dependable board connections, this Wafer Connector can support both automated production lines and custom device assembly. It is also commonly selected by buyers searching for wafer connector 2.0 mm alternatives with higher pin configurations and stronger connection stability.
